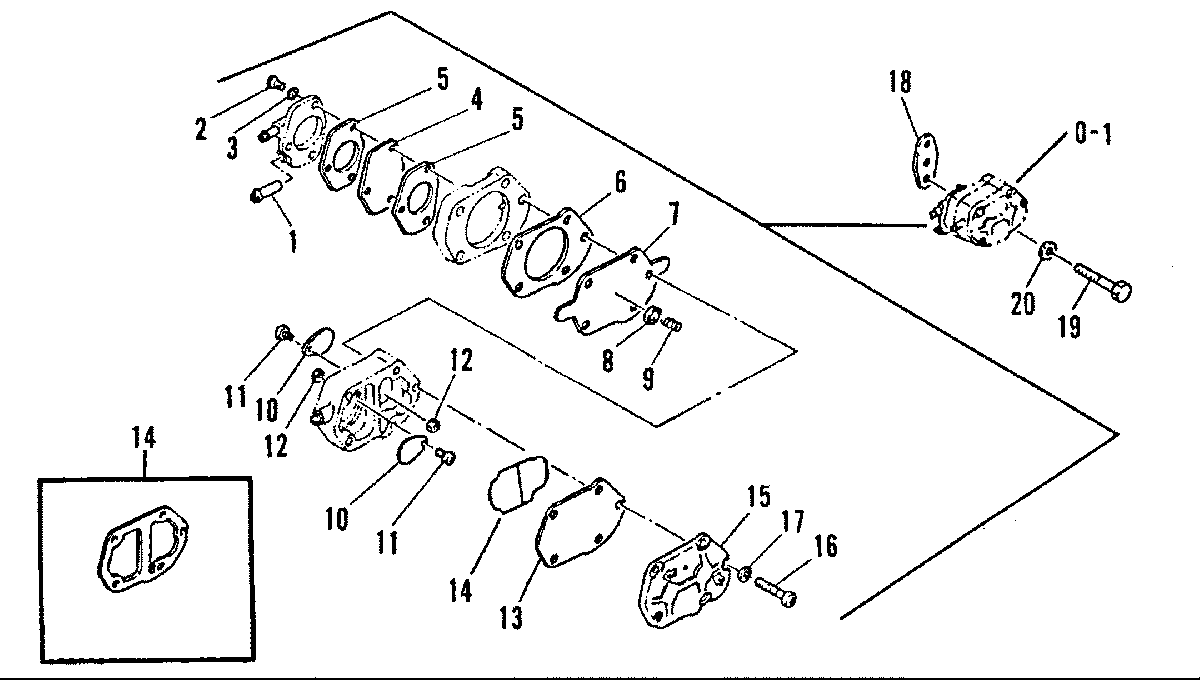

FUEL PUMP для Mariner - K25 6A4-000101 AND UP (M)

  • №
    Артикул
    Название
  • 0-1
    804358T1 FUEL PUMP (M-001471 ML-310224 AND ABOVE)
    FUEL PUMP (M-001471 ML-310224 AND ABOVE)
  • 0-1
    804358T1 FUEL PUMP (M001470 ML-310223 AND BELOW)
    FUEL PUMP (M001470 ML-310223 AND BELOW)
  • 1
    22-94716M FITTING
    FITTING
  • 2
    10-94724M SCREW
    SCREW
  • 3
    13-94725M LOCKWASHER
    LOCKWASHER
  • 4
    94717M DIAPHRAGM
    DIAPHRAGM
  • 5
    27-94718M GASKET
    GASKET
  • 6
    27-80613 GASKET
    GASKET
  • 7
    80606M DIAPHRAGM
    DIAPHRAGM
  • 8
    80611M PLATE
    PLATE
  • 9
    24-80610M SPRING
    SPRING
  • 10
    21-41888M CHECK VALVE
    CHECK VALVE
  • 11
    10-41889M SCREW (M-001182 ML-307013 AND ABOVE)
    SCREW (M-001182 ML-307013 AND ABOVE)
  • 11
    10-813484M SCREW (M-001181 ML-307012 AND BELOW)
    SCREW (M-001181 ML-307012 AND BELOW)
  • 12
    11-82537M NUT
    NUT
  • 13
    84141M DIAPHRAGM
    DIAPHRAGM
  • 14
    27-80614 GASKET (M-001314 ML-308858 AND ABOVE)
    GASKET (M-001314 ML-308858 AND ABOVE)
  • 14
    27-43095M GASKET (M-001182-001313 ML-307013-308857)
    GASKET (M-001182-001313 ML-307013-308857)
  • 14
    27-80614 GASKET (M-001181 ML-307012 AND BELOW)
    GASKET (M-001181 ML-307012 AND BELOW)
  • 15
    80607M COVER (M-001182 ML-307013 AND ABOVE)
    COVER (M-001182 ML-307013 AND ABOVE)
  • 15
    80607M COVER (M-001181 ML-307012 AND BELOW)
    COVER (M-001181 ML-307012 AND BELOW)
  • 16
    10-82522M SCREW
    SCREW
  • 17
    13-82186M LOCKWASHER
    LOCKWASHER
  • 18
    27-80757 GASKET
    GASKET
  • 19
    10-84931M BOLT
    BOLT
  • 20
    12-82214M WASHER
    WASHER
