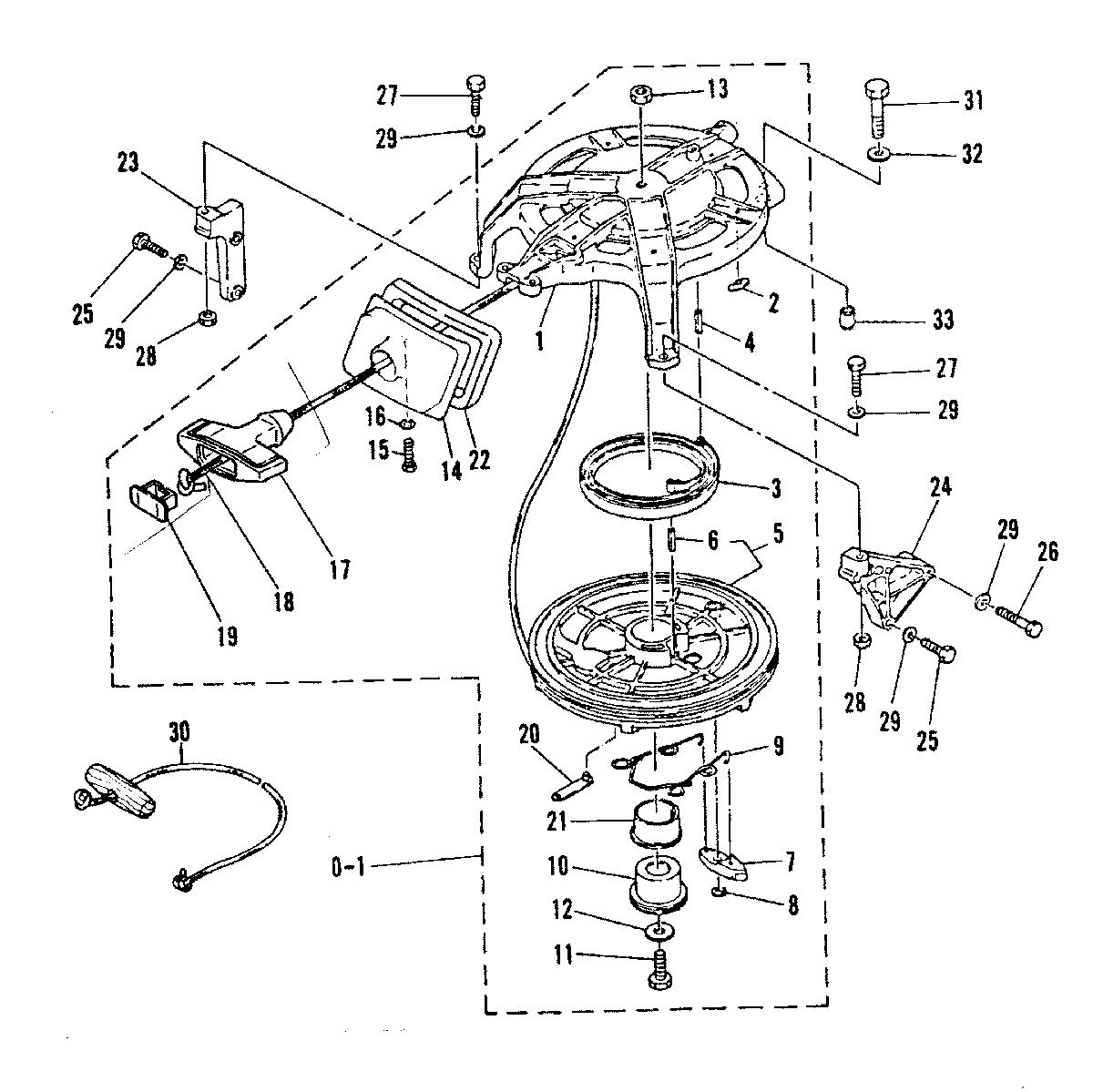

RECOIL STARTER для Mariner - K25 6A4-000101 AND UP (M)

  • №
    Артикул
    Название
  • 0-1
    50-814514M STARTER ASSY.
    STARTER ASSY.
  • 1
    2169-811912M STARTER HOUSING
    STARTER HOUSING
  • 2
    23-83585M PLUG
    PLUG
  • 3
    24-83588M SPRING
    SPRING
  • 4
    17-82157M PIN
    PIN
  • 5
    50-83587M STARTER SHEAVE
    STARTER SHEAVE
  • 6
    17-82157M ROLL PIN
    ROLL PIN
  • 7
    84894M STARTER PAWL
    STARTER PAWL
  • 8
    53-84895M SNAP RING
    SNAP RING
  • 9
    24-83591M SPRING
    SPRING
  • 10
    23-83590M SHAFT
    SHAFT
  • 11
    10-84342M BOLT
    BOLT
  • 12
    12-81801M WASHER
    WASHER
  • 13
    11-82382M NUT
    NUT
  • 14
    17168M GUIDE (M-001374 ML-309362 AND ABOVE)
    GUIDE (M-001374 ML-309362 AND ABOVE)
  • 14
    80600M GUIDE (M-001373 ML-309361 AND BELOW)
    GUIDE (M-001373 ML-309361 AND BELOW)
  • 15
    10-826957M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • 17
    814491M HANDLE (M-001471 ML-310224 AND ABOVE)
    HANDLE (M-001471 ML-310224 AND ABOVE)
  • 17
    814491A1 HANDLE (M-001374-001470 ML-309362-310223)
    HANDLE (M-001374-001470 ML-309362-310223)
  • 17
    814491A1 HANDLE (M-001373 ML-309361 AND BELOW)
    HANDLE (M-001373 ML-309361 AND BELOW)
  • 18
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 19
    814492M COVER (M-001471 ML-310224 AND ABOVE)
    COVER (M-001471 ML-310224 AND ABOVE)
  • 19
    18929M COVER (M-001374-001470 ML-309362-310223)
    COVER (M-001374-001470 ML-309362-310223)
  • 19
    814491A1 COVER (M-001373 ML-309361 AND BELOW)
    COVER (M-001373 ML-309361 AND BELOW)
  • 20
    54-84893M CLIP
    CLIP
  • 21
    23-83589M BUSHING
    BUSHING
  • 22
    95433M SEAL (M-001286 ML-308339 AND ABOVE)
    SEAL (M-001286 ML-308339 AND ABOVE)
  • 22
    93107M SEAL (M-001285 ML-308338 AND BELOW)
    SEAL (M-001285 ML-308338 AND BELOW)
  • 23
    811135M BRACKET (STBD.) (M-001286 ML-308339 AND ABOVE)
    BRACKET (STBD.) (M-001286 ML-308339 AND ABOVE)
  • 23
    84465M BRACKET (STBD.) (M-001285 ML-308338 AND BELOW)
    BRACKET (STBD.) (M-001285 ML-308338 AND BELOW)
  • 24
    84466M BRACKET (PORT)
    BRACKET (PORT)
  • 25
    10-82405M BOLT
    BOLT
  • 26
    10-827043M BOLT
    BOLT
  • 27
    10-83285M BOLT
    BOLT
  • 28
    11-82389M NUT
    NUT
  • 29
    12-82214M WASHER
    WASHER
  • 30
    47341A11 EMERGENCY STARTER ROPE
    EMERGENCY STARTER ROPE
  • 31
    10-82442M BOLT
    BOLT
  • 32
    12-82217M WASHER
    WASHER
  • 33
    17-14229M DOWEL PIN
    DOWEL PIN
