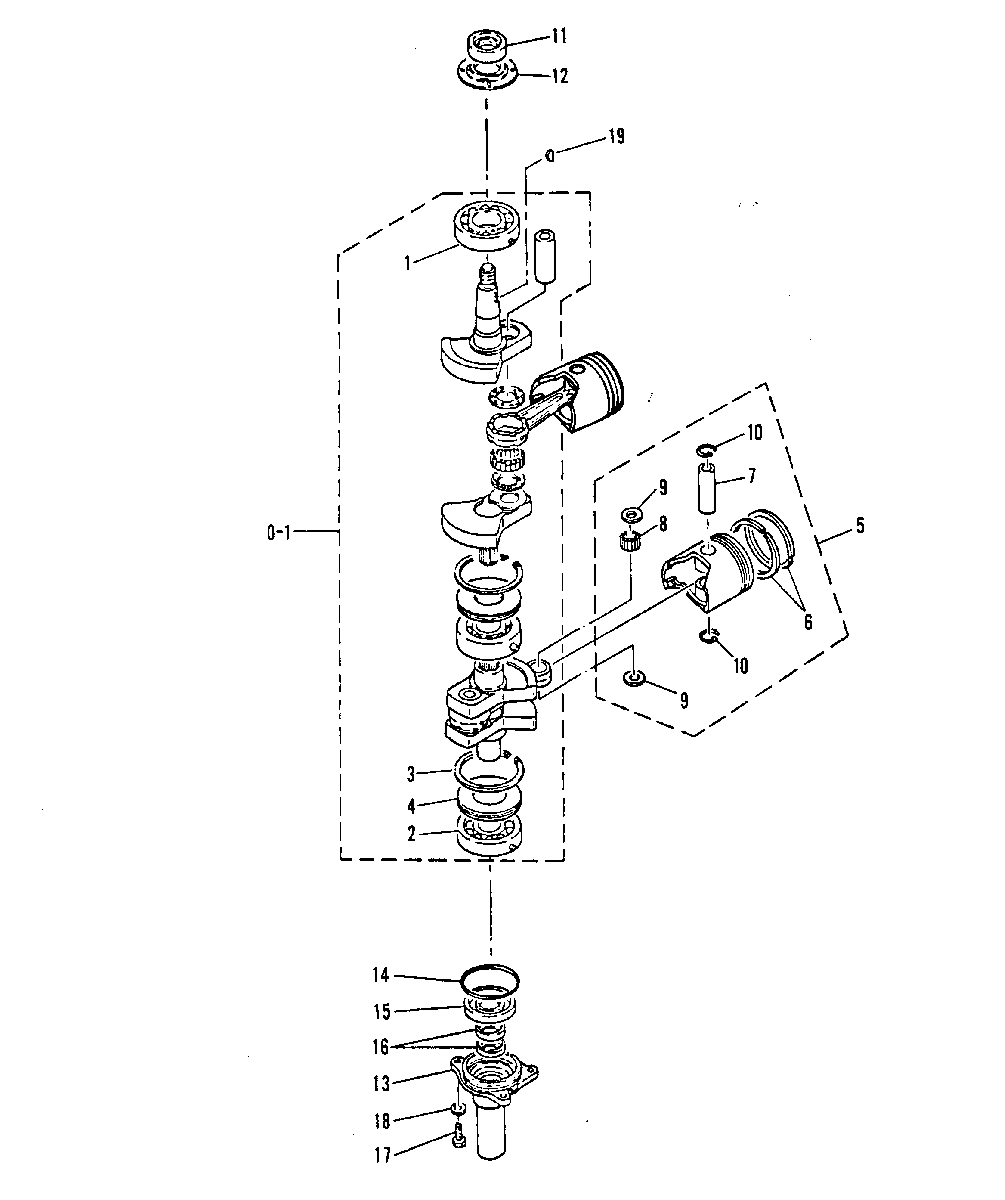

CRANKSHAFT AND PISTON для Mariner - 9.9C 682-552316 AND UP
-
№АртикулНазвание
-
0-1463-9854M CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
130-82303T BEARING (UPPER)BEARING (UPPER)
-
230-83938T BEARING (LOWER)BEARING (LOWER)
-
353-94555M SNAP RINGSNAP RING
-
426-84244M SEALSEAL
-
5761-7982T PISTON (STANDARD)PISTON (STANDARD)
-
5761-8022T PISTON (1ST. O.S. 56.25MM)PISTON (1ST. O.S. 56.25MM)
-
5761-8023T PISTON (2ND. O.S. 56.50MM)PISTON (2ND. O.S. 56.50MM)
-
639-15320T PISTON RING SET (STANDARD)PISTON RING SET (STANDARD)
-
639-18939T PISTON RING SET (1ST. O.S. 56.25MM)PISTON RING SET (1ST. O.S. 56.25MM)
-
639-15322T PISTON RING SET (2ND. O.S. 56.50MM)PISTON RING SET (2ND. O.S. 56.50MM)
-
741-80272M PISTON PINPISTON PIN
-
829-82349M NEEDLE BEARINGNEEDLE BEARING
-
912-81823M WASHERWASHER
-
1053-82343M CLIPCLIP
-
1126-83936M OIL SEAL (UPPER)OIL SEAL (UPPER)
-
1223-84243M SPACERSPACER
-
1383945T HOUSINGHOUSING
-
1425-83930M O-RINGO-RING
-
1526-96605M OIL SEAL (LOWER)OIL SEAL (LOWER)
-
1626-96606M OIL SEAL (LOWER)OIL SEAL (LOWER)
-
1710-826957M BOLTBOLT
-
1812-82214M WASHERWASHER
-
1928-8M0057164 KEYKEY
Все узлы модели:
- C.D.I. MAGNETO
- CARBURETOR/FUEL PUMP
- CARBURETOR/FUEL PUMP
- CARBURETOR/FUEL PUMP - INTERNATIONAL ONLY
- CLAMP AND SWIVEL BRACKET
- CONTROL PANEL KIT - OPTIONAL
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKCASE AND CYLINDER HEAD
- • CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRIC START
- FLYWHEEL MAGNETO
- FUEL LINES AND FILTER
- FUEL TANK (NOT ORIGINAL EQUIPMENT TANK - SEE NOTE) (6 GALLON
- FUEL TANK (NOT ORIGINAL EQUIPMENT TANK - SEE NOTE) (6.6 GAL)
- FUEL TANK AND FUEL LINE ASSEMBLY
- FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT) 24 L.
- GEAR HOUSING ASSEMBLY
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD
- INTAKE MANIFOLD
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHMENT KIT
- STEERING HANDLE
- THROTTLE CONTROL
