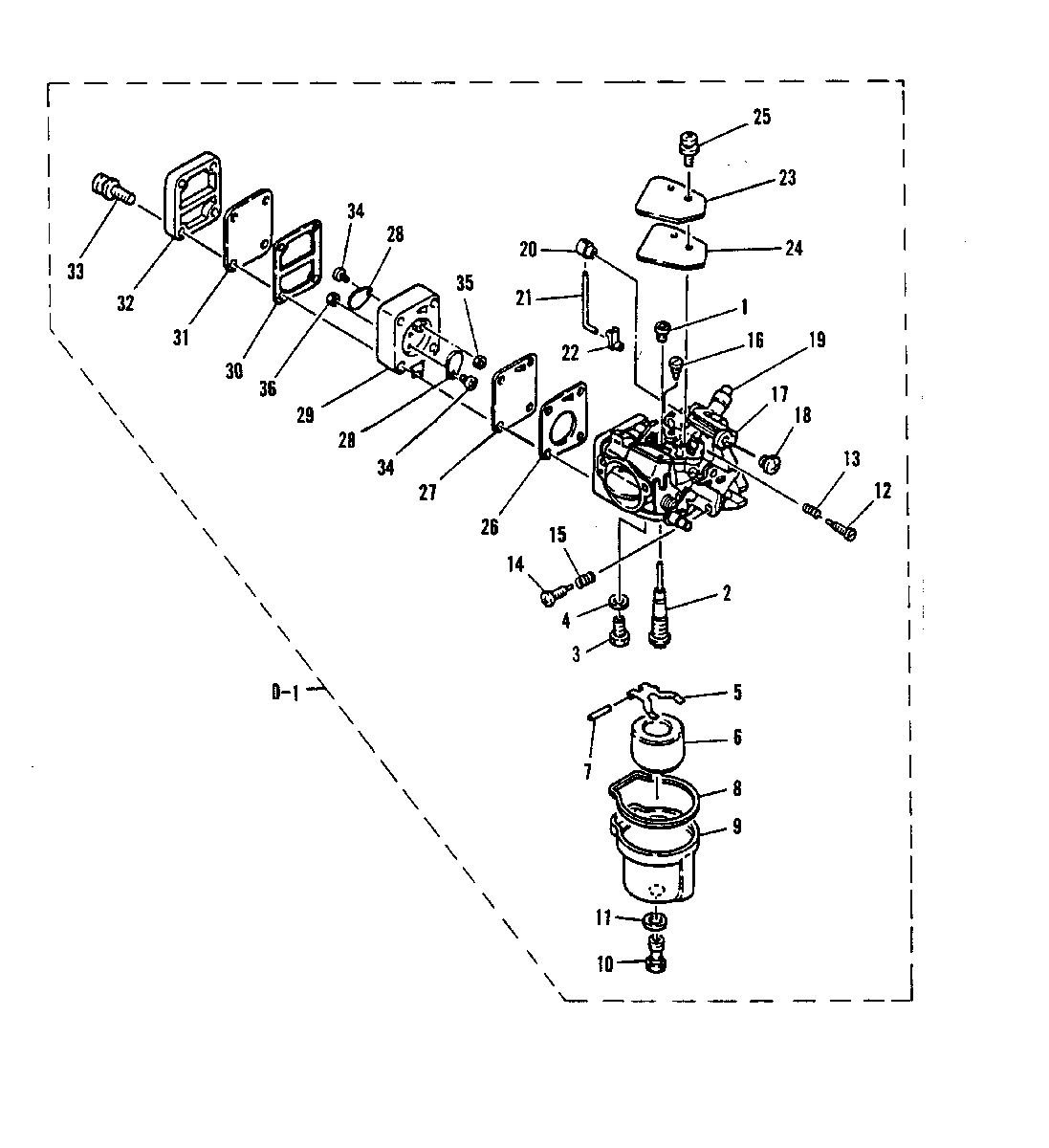

CARBURETOR/FUEL PUMP для Mariner - 9.9C 682-552316 AND UP

  • №
    Артикул
    Название
  • 0-1
    1383-8515M CARBURETOR (682-75) (ALL - SEE NOTE #1)
    CARBURETOR (682-75) (ALL - SEE NOTE #1)
  • 0-1
    1383-8236M CARB (682-72) (USA/AUSTRALIA ONLY - SEENOTE #2)
    CARB (682-72) (USA/AUSTRALIA ONLY - SEENOTE #2)
  • 1
    82600M PILOT JET (#46)
    PILOT JET (#46)
  • 2
    94795M MAIN NOZZLE (682-73/74/75) (SEE NOTE #1)
    MAIN NOZZLE (682-73/74/75) (SEE NOTE #1)
  • 2
    94796M MAIN NOZZLE (682-72) (SEE NOTE #2)
    MAIN NOZZLE (682-72) (SEE NOTE #2)
  • 3
    80447M VALVE SEAT ASSEMBLY
    VALVE SEAT ASSEMBLY
  • 4
    12-80261M WASHER
    WASHER
  • 5
    80202M FLOAT ARM
    FLOAT ARM
  • 6
    80450M FLOAT
    FLOAT
  • 7
    17-80451M PIN
    PIN
  • 8
    27-43115M GASKET
    GASKET
  • 9
    84252M FLOAT BOWL
    FLOAT BOWL
  • 10
    NLA MAIN JET (#88) (682-73/74/75)
    MAIN JET (#88) (682-73/74/75)
  • 10
    10-83289M MAIN JET (#80) (682-72)
    MAIN JET (#80) (682-72)
  • 11
    27-80267 GASKET
    GASKET
  • 12
    10-80573M IDLE MIXTURE SCREW
    IDLE MIXTURE SCREW
  • 13
    24-814460M SPRING
    SPRING
  • 14
    10-83509M IDELE SPEED SCREW 682-74/75
    IDELE SPEED SCREW 682-74/75
  • 15
    24-814460M SPRING 682-74/75
    SPRING 682-74/75
  • 14
    10-80738M IDLE SPEED SCREW 682-72/73
    IDLE SPEED SCREW 682-72/73
  • 15
    24-80966M SPRING 682-72/73
    SPRING 682-72/73
  • 16
    10-80434M SCREW
    SCREW
  • 17
    84254M THROTTLE ARM ASSEMBLY
    THROTTLE ARM ASSEMBLY
  • 18
    10-80091M SCREW
    SCREW
  • 19
    84255M COLLAR
    COLLAR
  • 20
    83300M RETAINER
    RETAINER
  • 21
    84256M THROTTLE ROD
    THROTTLE ROD
  • 22
    16333 RETAINER
    RETAINER
  • 23
    98992M PLATE 682-74/75
    PLATE 682-74/75
  • 24
    27-98993T GASKET 682-74/75
    GASKET 682-74/75
  • 25
    10-82500M SCREW 682-74/75
    SCREW 682-74/75
  • 23
    84258M PLATE 682-72/73
    PLATE 682-72/73
  • 24
    27-84259M GASKET 682-72/73
    GASKET 682-72/73
  • 25
    10-83509M SCREW 682-72/73
    SCREW 682-72/73
  • 26
    27-815009 GASKET
    GASKET
  • 27
    84262M DIAPHRAGM
    DIAPHRAGM
  • 28
    21-41888M CHECK VALVE
    CHECK VALVE
  • 29
    84263M BODY (682-74/75)
    BODY (682-74/75)
  • 29
    84263M BODY (682-72/73)
    BODY (682-72/73)
  • 30
    27-84264 GASKET
    GASKET
  • 31
    84265M DIAPHRAGM
    DIAPHRAGM
  • 32
    84266M COVER
    COVER
  • 33
    10-80954M SCREW
    SCREW
  • 34
    10-813484M SCREW 682-74/75
    SCREW 682-74/75
  • 35
    11-82537M NUT 682-74/75
    NUT 682-74/75
  • -
    84473T REPAIR KIT
    REPAIR KIT
