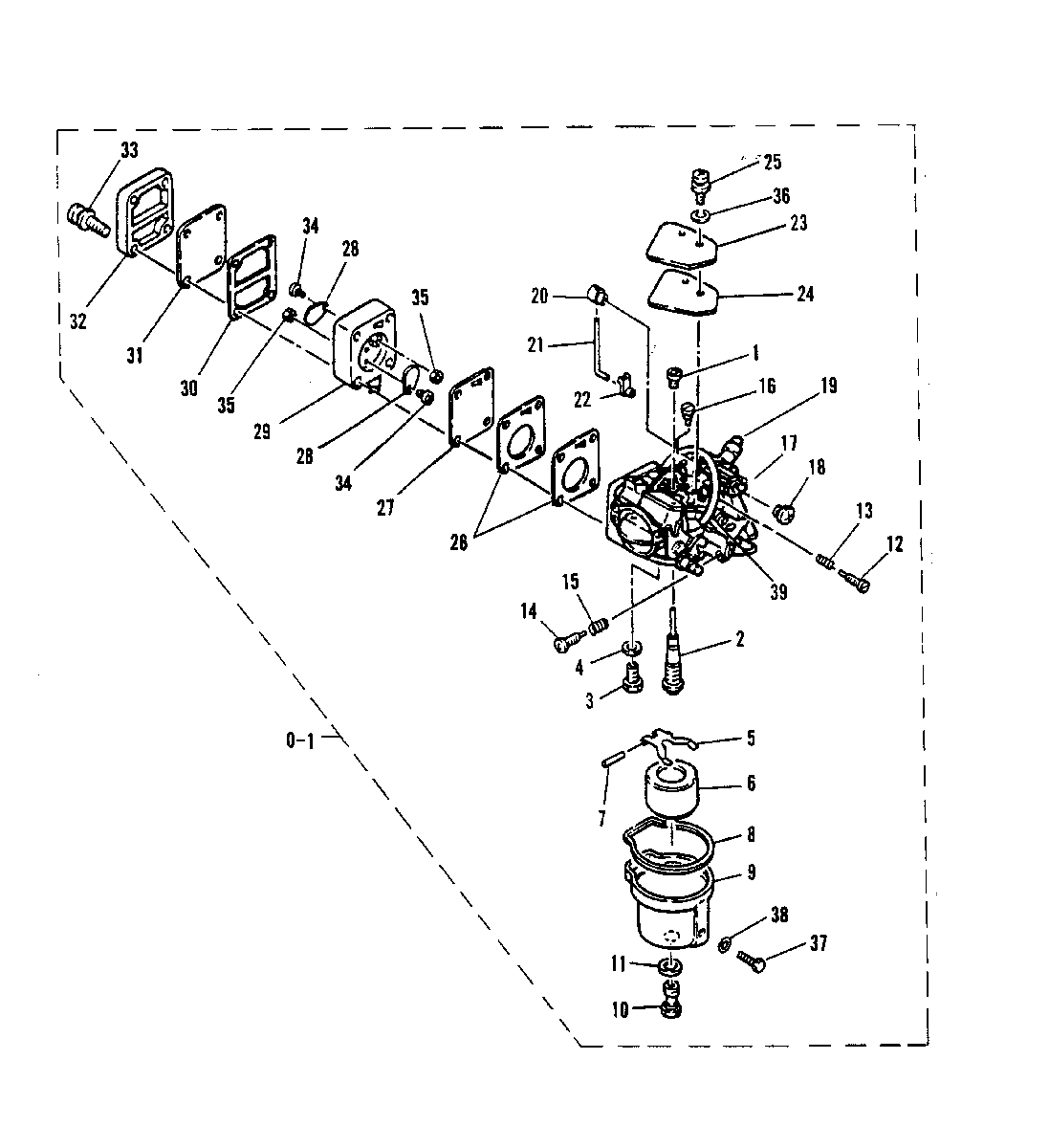

CARBURETOR/FUEL PUMP для Mariner - 9.9C 682-552316 AND UP
-
№АртикулНазвание
-
0-11383-9510M CARBURETOR (6E7-72)CARBURETOR (6E7-72)
-
195492M PILOT JET (#52)PILOT JET (#52)
-
141872M PILOT JET (#56)PILOT JET (#56)
-
241873M MAIN NOZZLEMAIN NOZZLE
-
380447M VALVE SEAT (6E7-72)VALVE SEAT (6E7-72)
-
311930M VALVE SEAT (6E7-71)VALVE SEAT (6E7-71)
-
380447M VALVE SEAT (6E7-70)VALVE SEAT (6E7-70)
-
412-80261M WASHERWASHER
-
580202M FLOAT ARM (OLD DESIGN)FLOAT ARM (OLD DESIGN)
-
614180M FLAOT (6E7-72)FLAOT (6E7-72)
-
680450M FLOAT (6E7-70/71)FLOAT (6E7-70/71)
-
717-80451M PIN (6E7-72)PIN (6E7-72)
-
717-80451M PIN (6-E7-70/71)PIN (6-E7-70/71)
-
827-43115M GASKETGASKET
-
914217M FLOAT BOWL (6E7-72)FLOAT BOWL (6E7-72)
-
984252M FLOAT BOWL (6E7-70/71)FLOAT BOWL (6E7-70/71)
-
1095493M MAIN JET (#104)MAIN JET (#104)
-
1084377M MAIN JET (#102)MAIN JET (#102)
-
1010-83289M MAIN JET (#80) (682-72)MAIN JET (#80) (682-72)
-
1127-80267 GASKETGASKET
-
1210-80573M IDLE MIXTURE SCREWIDLE MIXTURE SCREW
-
1324-814460M SPRINGSPRING
-
1410-83509M IDELE SPEED SCREWIDELE SPEED SCREW
-
1524-814460M SPRINGSPRING
-
1610-80434M SCREWSCREW
-
1784254M THROTTLE ARM ASSEMBLYTHROTTLE ARM ASSEMBLY
-
1810-80091M SCREWSCREW
-
1984255M COLLARCOLLAR
-
2083300M RETAINERRETAINER
-
2184256M THROTTLE RODTHROTTLE ROD
-
2216333 RETAINERRETAINER
-
2398992M PLATEPLATE
-
2427-98993T GASKETGASKET
-
2510-82500M SCREWSCREW
-
2627-815009 GASKETGASKET
-
2784262M DIAPHRAGMDIAPHRAGM
-
2821-41888M CHECK VALVECHECK VALVE
-
2984263M BODYBODY
-
3027-84264 GASKETGASKET
-
3184265M DIAPHRAGMDIAPHRAGM
-
3284266M COVERCOVER
-
3310-80954M SCREW (6E7-72)SCREW (6E7-72)
-
33NLA SCREW (6E7-70/71)SCREW (6E7-70/71)
-
3410-11837M SCREWSCREW
-
3511-82537M NUTNUT
-
3613-82206M LOCKWASHERLOCKWASHER
-
3710-82512M SCREW 6E7-72SCREW 6E7-72
-
3827-14218M GASKET 6E7-72GASKET 6E7-72
-
3914281M TUBE 6E7-72TUBE 6E7-72
-
-814481M REPAIR KIT (6E7-72)REPAIR KIT (6E7-72)
-
-84473T REPAIR KIT (6E7-70/71)REPAIR KIT (6E7-70/71)
