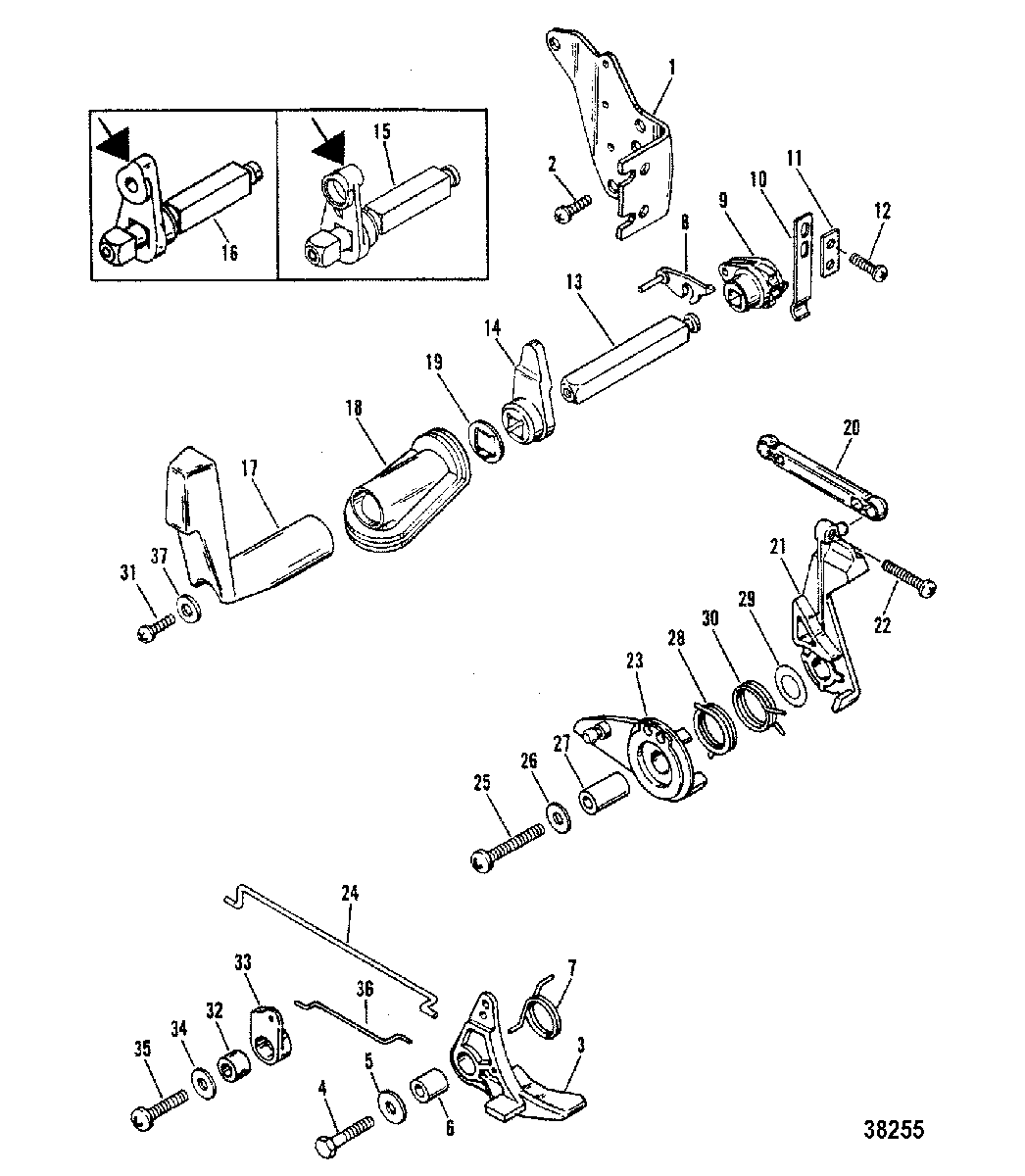

THROTTLE AND SHIFT LINKAGE(SIDE SHIFT MODELS) для Mariner - 9.9 0A197112 THRU 0D280999
-
№АртикулНазвание
-
142181 BRACKET, CableBRACKET, Cable
-
210-4000117 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
3421592 LEVERLEVER
-
410-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
512-4002316 WASHERWASHER
-
623-421581 BUSHINGBUSHING
-
724-42160 SPRINGSPRING
-
842156 LEVERLEVER
-
942153 LEVERLEVER
-
1024-39627 SPRINGSPRING
-
1139601 PLATE (OLD DESIGN)PLATE (OLD DESIGN)
-
1210-400035 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1210-400011 SCREW, (M5 x 8)SCREW, (M5 x 8)
-
1342152 SHIFT SHAFT (2 PIECE SHIFT SHAFT)SHIFT SHAFT (2 PIECE SHIFT SHAFT)
-
14421541 ACTUATOR (2 PIECE SHIFT SHAFT)ACTUATOR (2 PIECE SHIFT SHAFT)
-
15815550A1 SHIFT SHAFT ( W/BALL SOCKET)SHIFT SHAFT ( W/BALL SOCKET)
-
168155501 SHIFT SHAFT (W/O BALL SOCKET)SHIFT SHAFT (W/O BALL SOCKET)
-
17815550A1 SHIFT HANDLE (USE W/REF. #13 & 14 OR 15)SHIFT HANDLE (USE W/REF. #13 & 14 OR 15)
-
17421571 SHIFT HANDLE (USE W/REF. #16)SHIFT HANDLE (USE W/REF. #16)
-
1844459001 GROMMETGROMMET
-
1914-12003 TAB WASHER (OLD DESIGN)TAB WASHER (OLD DESIGN)
-
20421671 TIMING LINKTIMING LINK
-
21421631 LEVER, ControlLEVER, Control
-
2210-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
2210-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
23421662 ACTUATORACTUATOR
-
2442161 LINK INTERLOCKLINK INTERLOCK
-
2510-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
2612-4002316 WASHERWASHER
-
2723-421621 BUSHINGBUSHING
-
2824-13676 SPRINGSPRING
-
2913-69708 WAVE WASHERWAVE WASHER
-
3024-42164 SPRINGSPRING
-
3110-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
3223-421821 BUSHINGBUSHING
-
3342183 ACTUATORACTUATOR
-
3412-4002316 WASHERWASHER
-
3510-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3642184 LINKLINK
-
3712-4002314 WASHERWASHER
