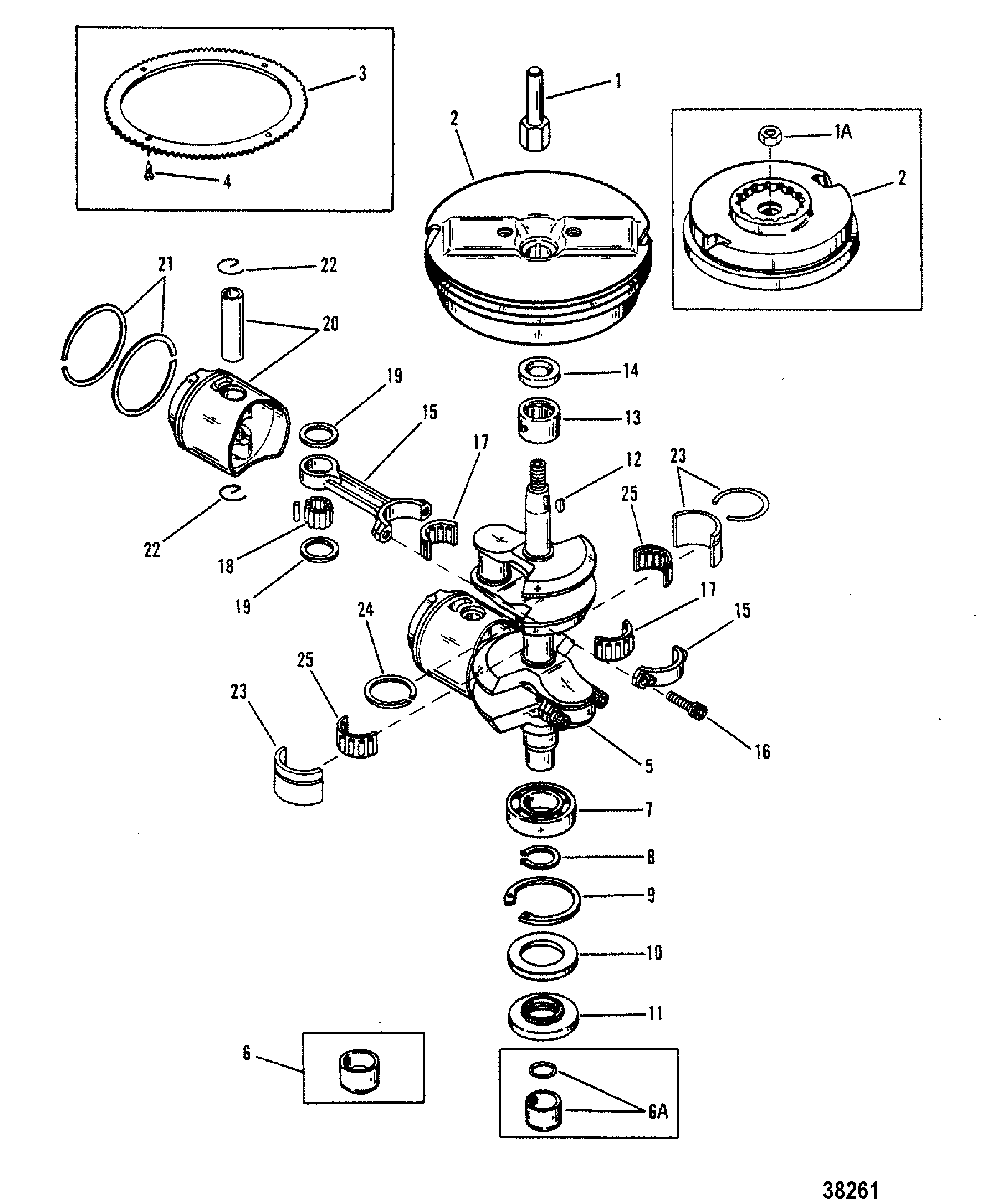

CRANKSHAFT, PISTONS AND FLYWHEEL(15) для Mariner - 9.9 0A197112 THRU 0D280999
-
№АртикулНазвание
-
142691 SHAFT, FLYWHEEL
(USE WITH STUB SHAFT)SHAFT, FLYWHEEL
(USE WITH STUB SHAFT) -
1A11-818591 NUT, (M14)NUT, (M14)
-
2260-859231T6 FLYWHEEL ASSEMBLY
(USE WITH STUB SHAFT)FLYWHEEL ASSEMBLY
(USE WITH STUB SHAFT) -
2260-859231T19 FLYWHEEL ASSEMBLY
(USE WITH NUT)FLYWHEEL ASSEMBLY
(USE WITH NUT) -
343-99301 RING GEAR, FLYWHEELRING GEAR, FLYWHEEL
-
410-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEELSCREW, (M5 x 13), RING GEAR TO FLYWHEEL
-
5400-8M0083309 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
6818630A1 SEAL, Oil, CRANKSHAFT (DESIGN I)SEAL, Oil, CRANKSHAFT (DESIGN I)
-
6A818630A1 SLEEVE (INCLUDES O-RING - DESIGN II)SLEEVE (INCLUDES O-RING - DESIGN II)
-
730-41341 BEARING, Ball, CRANKSHAFT-LOWERBEARING, Ball, CRANKSHAFT-LOWER
-
853-20940 RING, Snap, BALL BEARING (SMALL) (OLD DESIGN)RING, Snap, BALL BEARING (SMALL) (OLD DESIGN)
-
953-42132 RING, RetainingRING, Retaining
-
1012-13031 WASHER, LOWERWASHER, LOWER
-
1126-125661 SEAL, Oil - LowerSEAL, Oil - Lower
-
1228-20094 KEY, WoodruffKEY, Woodruff
-
1331-878158 BEARING, Roller, CRANKSHAFT-UPPERBEARING, Roller, CRANKSHAFT-UPPER
-
1426-125671 SEAL, Oil - Upper, CRANKSHAFTSEAL, Oil - Upper, CRANKSHAFT
-
15637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-823460 SCREW, (M5 x 16), CONNECTING RODSCREW, (M5 x 16), CONNECTING ROD
-
1731-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1829-42186 BEARING, Needle, PISTON ENDBEARING, Needle, PISTON END
-
1912-8M0012297 BEARING, ThrustBEARING, Thrust
-
20784-9747T2 PISTON ASSEMBLY (STANDARD)PISTON ASSEMBLY (STANDARD)
-
20784-9747A4 PISTON ASSEMBLY (.015 O.S.)PISTON ASSEMBLY (.015 O.S.)
-
2139-18212A4 RING SET, Piston (STANDARD)RING SET, Piston (STANDARD)
-
2139-18212A1 RING SET, Piston (.015 O.S.)RING SET, Piston (.015 O.S.)
-
2240-42202 LOCK RINGLOCK RING
-
2317794A1 BEARINGBEARING
-
2426-818901 SEAL, MAIN BEARINGSEAL, MAIN BEARING
-
2531-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
-19072T88 POWERHEAD ASSEMBLY, Complete
(15)POWERHEAD ASSEMBLY, Complete
(15)
