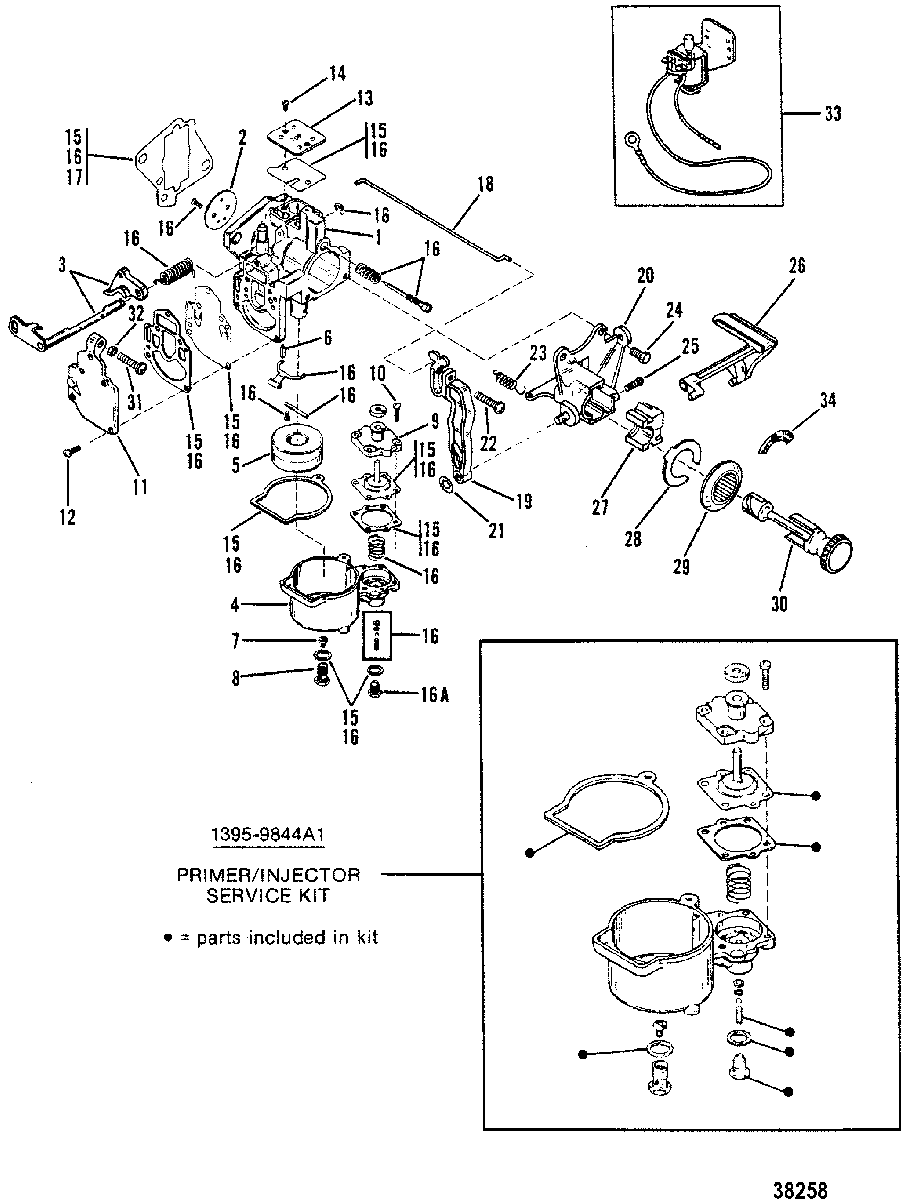

CARBURETOR(WMC5A/WMC5B/WMC7/WMC7A/WMC19/WMC19A) для Mariner - 9.9 0A197112 THRU 0D280999

№

Артикул

Название
1

1392-9503A5 CARBURETOR ASSEMBLY
(6)

CARBURETOR ASSEMBLY
(6)

0 ₽
1

1392-9266T22 CARBURETOR ASSEMBLY
(8)

CARBURETOR ASSEMBLY
(8)

46 340 ₽
1

1392-8846A24 CARBURETOR ASSEMBLY
(9.9)

CARBURETOR ASSEMBLY
(9.9)

44 670 ₽
2

1395-9473 VALVE, Throttle

VALVE, Throttle

500 ₽
3

1395-804707 SHAFT, Throttle

SHAFT, Throttle

3 650 ₽
4

1395-9164 BOWL, Fuel

BOWL, Fuel

7 680 ₽
5

1395-91691 FLOAT

FLOAT

900 ₽
6

1395-803861 VALVE, INLET NEEDLE

VALVE, INLET NEEDLE

1 990 ₽
7

1395-9548 JET, MAIN FUEL (.039)
(6)

JET, MAIN FUEL (.039)
(6)

0 ₽
7

1399-5317 JET, (.046), MAIN FUEL
(8)

JET, (.046), MAIN FUEL
(8)

590 ₽
7

1399-5213 JET, Main (.056)
(9.9)

JET, Main (.056)
(9.9)

680 ₽
8

1395-9171 PLUG, JET RETAINER

PLUG, JET RETAINER

590 ₽
9

813618 COVER, DIAPHRAGM

COVER, DIAPHRAGM

1 150 ₽
10

1395-9697 SCREW, DIAPHRAGM COVER

SCREW, DIAPHRAGM COVER

270 ₽
11

1395-9702 COVER/FUEL PUMP KIT
Kit includes: screws, nut, bearing, cover,body asy, gasket, spring and diaphragm.

COVER/FUEL PUMP KIT
Kit includes: screws, nut, bearing, cover,body asy, gasket, spring and diaphragm.

6 120 ₽
12

1395-9173 SCREW, FUEL PUMP COVER

SCREW, FUEL PUMP COVER

0 ₽
13

1395-9177 PLATE, COVER

PLATE, COVER

0 ₽
14

1395-9696 SCREW, COVER PLATE

SCREW, COVER PLATE

250 ₽
15

1395-97611 GASKET/DIAPHRAGM KIT

GASKET/DIAPHRAGM KIT

4 890 ₽
16

1395-96481 REPAIR PARTS KIT

REPAIR PARTS KIT

15 630 ₽
16A

1395-9762 PLUG

PLUG

320 ₽
17

27-192061 GASKET, Carburetor

GASKET, Carburetor

750 ₽
18

445541 IDLE WIRE

IDLE WIRE

710 ₽
19

128053 LEVER, Fast Idle

LEVER, Fast Idle

630 ₽
20

12803 BRACKET, Primer

BRACKET, Primer

1 780 ₽
21

11-821979 PUSH NUT, FAST IDLE LEVER

PUSH NUT, FAST IDLE LEVER

70 ₽
22

10-12110 SCREW, (#6-32 x .750), FAST IDLE LEVER

SCREW, (#6-32 x .750), FAST IDLE LEVER

140 ₽
23

24-11277 SPRING, Tension

SPRING, Tension

230 ₽
24

10-40056110 SCREW, (M5 x 30), PRIMER BRACKET

SCREW, (M5 x 30), PRIMER BRACKET

140 ₽
25

10-79965 SCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKET

SCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKET

110 ₽
26

112731 LEVER, Primer

LEVER, Primer

440 ₽
27

11280 CAM BLOCK

CAM BLOCK

450 ₽
28

53-11278 CLIP, Retaining

CLIP, Retaining

150 ₽
29

12804A1 BEZEL ASSEMBLY, Choke

BEZEL ASSEMBLY, Choke

1 610 ₽
30

128022 KNOB, PRIMER

KNOB, PRIMER

730 ₽
31

10-40056110 SCREW, (M5 x 30), STOP-CARBURETOR

SCREW, (M5 x 30), STOP-CARBURETOR

140 ₽
32

11-400211 NUT, (M5) Stainless Steel, STOP CREW

NUT, (M5) Stainless Steel, STOP CREW

210 ₽
33

1395-823433 CHOKE, Electric

CHOKE, Electric

8 370 ₽
34

37-129701 DECAL (SLOW/FAST)

DECAL (SLOW/FAST)

380 ₽
-

27-42364A92 GASKET SET

GASKET SET

6 510 ₽
