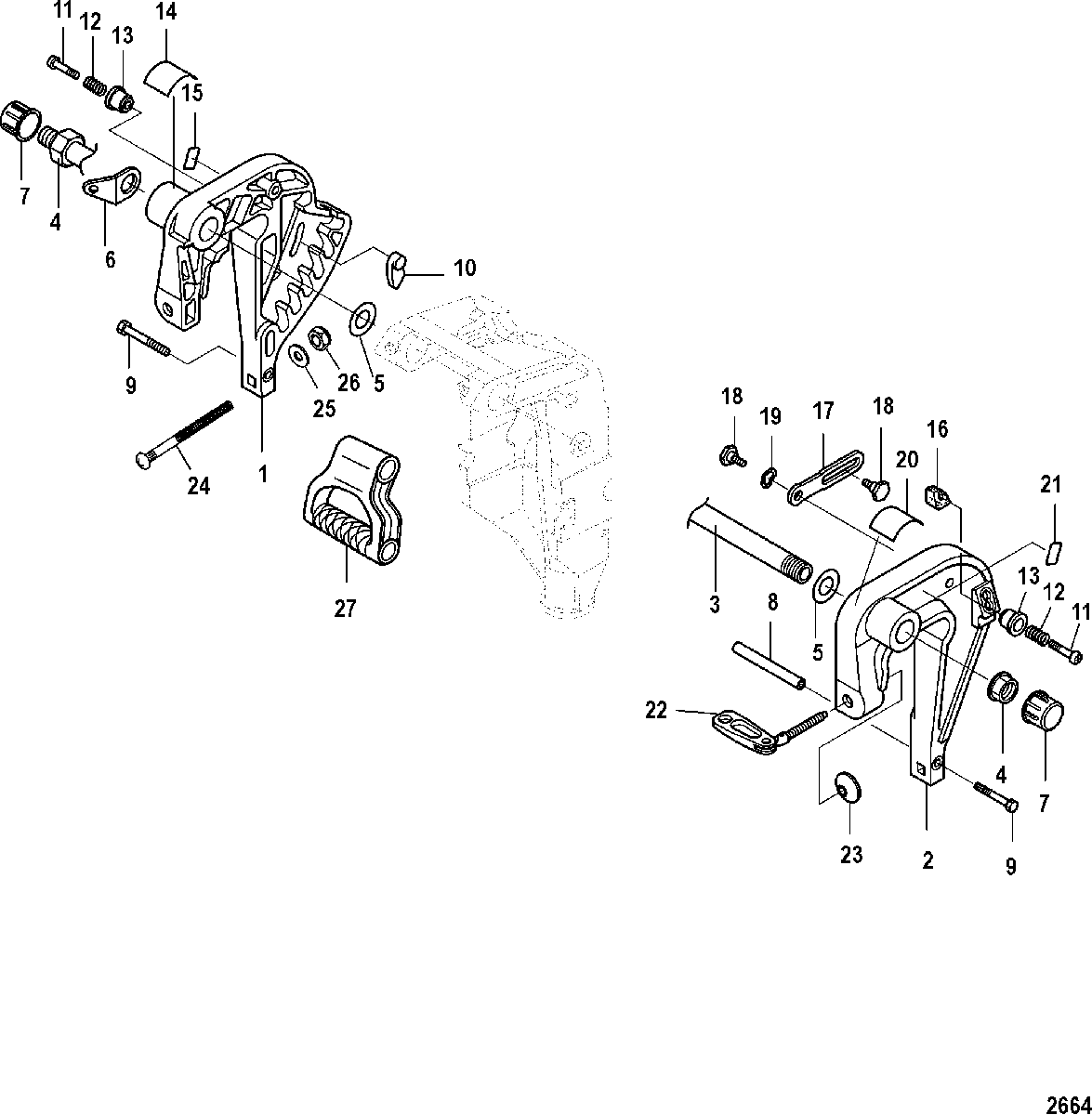

Clamp Brackets, Non-Power Tilt для Mariner - 9.9 (4-STROKE)(209cc) 0R042475 & Up

  • №
    Артикул
    Название
  • 1
    3406-815030T06 CLAMP BRACKET, Starboard
    SN# 0R068397 & Below
    CLAMP BRACKET, Starboard
    SN# 0R068397 & Below
  • 1
    3406-815030T06 CLAMP BRACKET, Starboard
    SN# 0R068398 & Up
    CLAMP BRACKET, Starboard
    SN# 0R068398 & Up
  • 2
    3406-815031T06 CLAMP BRACKET, Port
    SN# 0R068397 & Below
    CLAMP BRACKET, Port
    SN# 0R068397 & Below
  • 2
    3406-815031T06 CLAMP BRACKET, Port
    SN# 0R068398 & Up
    CLAMP BRACKET, Port
    SN# 0R068398 & Up
  • 3
    898101191 TILT TUBE
    TILT TUBE
  • 4
    11-853722029 NUT
    NUT
  • 5
    12-95375001 WASHER
    WASHER
  • 6
    895163002 PLATE
    PLATE
  • 7
    11-85372214 CAP NUT
    Handle
    CAP NUT
    Handle
  • 8
    803771001 SPACER
    SPACER
  • 9
    10-8M0102279 BOLT, Stainless Steel
    BOLT, Stainless Steel
  • 10
    895164 CAM, Trim Position Setting
    CAM, Trim Position Setting
  • 11
    10-855544015 SCREW
    SCREW
  • 12
    24-813028004 SPRING
    SPRING
  • 13
    815096001 KNOB
    KNOB
  • 14
    NSS NOT SOLD SEPARATE, Decal-Trim Position
    NOT SOLD SEPARATE, Decal-Trim Position
  • 15
    37-128671 DECAL, Lower Tilt Limit
    DECAL, Lower Tilt Limit
  • 16
    895165 TILT LOCK
    TILT LOCK
  • 17
    895169 TILT STRAP
    TILT STRAP
  • 18
    10-895170 BOLT
    BOLT
  • 19
    13-8537232 WAVE WASHER
    WAVE WASHER
  • 20
    NSS NOT SOLD SEPARATE, Pilot
    NOT SOLD SEPARATE, Pilot
  • 21
    NSS NOT SOLD SEPARATE, Tilt Lock
    NOT SOLD SEPARATE, Tilt Lock
  • 22
    10-8M0060117 THUMB SCREW ASSEMBLY, 14 MM Thread Size
    THUMB SCREW ASSEMBLY, 14 MM Thread Size
  • 23
    12-95379 PAD
    PAD
  • -
    56-92729A49 HARDWARE KIT, Transom Mounting
    Standard/Bigfoot Non Trim
    HARDWARE KIT, Transom Mounting
    Standard/Bigfoot Non Trim
  • 24
    10-43216 BOLT, (.250-20 x 3.50)
    Standard/Bigfoot Non Trim
    BOLT, (.250-20 x 3.50)
    Standard/Bigfoot Non Trim
  • 25
    12-67983 WASHER
    Standard/Bigfoot Non Trim
    WASHER
    Standard/Bigfoot Non Trim
  • 26
    11-8267118 NUT, (.250-20)
    Standard/Bigfoot Non Trim
    NUT, (.250-20)
    Standard/Bigfoot Non Trim
  • 27
    815082002 HANDLE, Carrying
    HANDLE, Carrying
