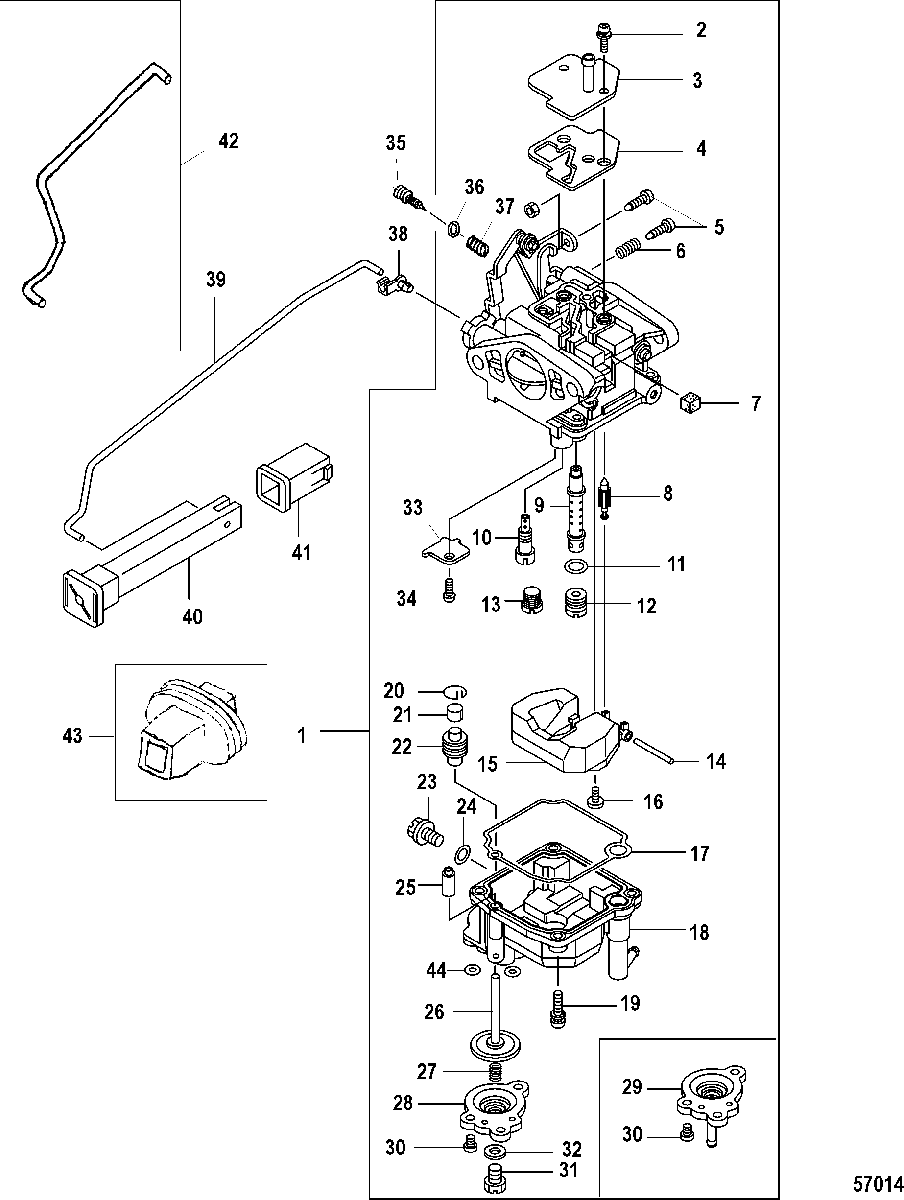

Carburetor для Mariner - 9.9 (4-STROKE)(209cc) 0R042475 & Up

  • №
    Артикул
    Название
  • 1
    3303-8M0104462 CARBURETOR
    9.9 Handle (EPA) SN# 0R042475 THRU 0R068397
    CARBURETOR
    9.9 Handle (EPA) SN# 0R042475 THRU 0R068397
  • 1
    3303-8M0104462 CARBURETOR
    9.9 Handle (EPA) SN# 0R068398 & Up
    CARBURETOR
    9.9 Handle (EPA) SN# 0R068398 & Up
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Handle (Bodensee) SN# 0P325500 THRU 0P339734
    CARBURETOR
    9.9 Handle (Bodensee) SN# 0P325500 THRU 0P339734
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Handle (Bodensee) SN# 0P339735 & Up
    CARBURETOR
    9.9 Handle (Bodensee) SN# 0P339735 & Up
  • 1
    3303-895110A15 CARBURETOR
    9.9 Handle EU SN# 0P404258 & Below
    CARBURETOR
    9.9 Handle EU SN# 0P404258 & Below
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Handle EU SN# 0P404259 & Up
    CARBURETOR
    9.9 Handle EU SN# 0P404259 & Up
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Remote SN# 0R042475 THRU 0R068397
    CARBURETOR
    9.9 Remote SN# 0R042475 THRU 0R068397
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Remote SN# 0R068398 & Up
    CARBURETOR
    9.9 Remote SN# 0R068398 & Up
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Remote Control SN# 0P325500 THRU 0P400999
    CARBURETOR
    9.9 Remote Control SN# 0P325500 THRU 0P400999
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Remote Control SN# 0P401000 & Up
    CARBURETOR
    9.9 Remote Control SN# 0P401000 & Up
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Remote Control EU SN# 0P404258 & Below
    CARBURETOR
    9.9 Remote Control EU SN# 0P404258 & Below
  • 1
    3303-8M0108371 CARBURETOR
    9.9 Remote Control EU SN# 0P404259 & Up
    CARBURETOR
    9.9 Remote Control EU SN# 0P404259 & Up
  • 1
    3303-8M0104461 CARBURETOR
    8 Handle SN# 0R042475 THRU 0R068397
    CARBURETOR
    8 Handle SN# 0R042475 THRU 0R068397
  • 1
    3303-8M0104461 CARBURETOR
    8 Handle SN# 0R068398 & Up
    CARBURETOR
    8 Handle SN# 0R068398 & Up
  • 1
    3303-8M0104463 CARBURETOR
    8 Handle-Bodensee SN# 0P325500 THRU 0P400999
    CARBURETOR
    8 Handle-Bodensee SN# 0P325500 THRU 0P400999
  • 1
    3303-8M0104463 CARBURETOR
    8 Handle-Bodensee SN# 0P401000 & Up
    CARBURETOR
    8 Handle-Bodensee SN# 0P401000 & Up
  • 1
    3303-895111A07 CARBURETOR
    8 Remote-Bodensee SN# 0P325500 THRU 0P400999
    CARBURETOR
    8 Remote-Bodensee SN# 0P325500 THRU 0P400999
  • 1
    3303-895111A07 CARBURETOR
    8 Remote-Bodensee SN# 0P401000 & Up
    CARBURETOR
    8 Remote-Bodensee SN# 0P401000 & Up
  • 1
    3303-8M0104463 CARBURETOR
    8 Handle SN# 0P370093 & Below
    CARBURETOR
    8 Handle SN# 0P370093 & Below
  • 1
    3303-8M0104463 CARBURETOR
    8 Handle SN# 0P370094 & Up
    CARBURETOR
    8 Handle SN# 0P370094 & Up
  • 2
    10-809571003 SCREW
    SCREW
  • 3
    855540002 COVER
    COVER
  • 4
    27-855541003 GASKET
    GASKET
  • 5
    10-803509A17 SCREW, Idle Adjustment (15 mm)
    SCREW, Idle Adjustment (15 mm)
  • 5
    10-803509A17 SCREW AND SPRING KIT, (18 mm)
    SCREW AND SPRING KIT, (18 mm)
  • 6
    24-16264003 SPRING, (14 mm)
    SPRING, (14 mm)
  • 6
    10-803509A17 SPRING, (11 mm)
    SPRING, (11 mm)
  • 7
    25-895112002 GROMMET
    GROMMET
  • 8
    809570002 FLOAT VALVE
    FLOAT VALVE
  • 9
    802700003 MAIN NOZZLE
    9.9
    MAIN NOZZLE
    9.9
  • 9
    802700003 MAIN NOZZLE
    9.9 EU SN# 0P404258 & Below
    MAIN NOZZLE
    9.9 EU SN# 0P404258 & Below
  • 9
    802700008 MAIN NOZZLE
    9.9 EU SN# 0P404259 & Up
    MAIN NOZZLE
    9.9 EU SN# 0P404259 & Up
  • 9
    802700004 MAIN NOZZLE
    8
    MAIN NOZZLE
    8
  • 9
    802700007 MAIN NOZZLE
    Bodensee
    MAIN NOZZLE
    Bodensee
  • 10
    803689003 JET, Pilot (#39)
    JET, Pilot (#39)
  • 10
    803689006 JET, Pilot (#37)
    Bodensee
    JET, Pilot (#37)
    Bodensee
  • 10
    803689003 JET, Pilot (#39)
    9.9 EU SN# 0P404258 & Below
    JET, Pilot (#39)
    9.9 EU SN# 0P404258 & Below
  • 10
    803689007 JET, Pilot (#40)
    9.9 EU SN# 0P404259 & Up
    JET, Pilot (#40)
    9.9 EU SN# 0P404259 & Up
  • 11
    25-825057004 O-RING
    O-RING
  • 12
    802701004 JET, Main (#92)
    9.9
    JET, Main (#92)
    9.9
  • 12
    802701004 JET, Main (#92)
    9.9 EU SN# 0P404258 & Below
    JET, Main (#92)
    9.9 EU SN# 0P404258 & Below
  • 12
    802701009 JET, Main (#93)
    9.9 EU SN# 0P404259 & Up
    JET, Main (#93)
    9.9 EU SN# 0P404259 & Up
  • 12
    802701005 JET, Main (#76)
    8
    JET, Main (#76)
    8
  • 12
    802701008 JET, Main (#71)
    8 Bodensee
    JET, Main (#71)
    8 Bodensee
  • 13
    19-802702001 PLUG
    9.9 SN# USA-0R068397/BEL-0P404258 & Below
    PLUG
    9.9 SN# USA-0R068397/BEL-0P404258 & Below
  • 13
    19-802702002 PLUG
    9.9 SN# USA-0R068398/BEL-0P404259 & Up
    PLUG
    9.9 SN# USA-0R068398/BEL-0P404259 & Up
  • 13
    19-802702002 PLUG
    8
    PLUG
    8
  • 14
    17-162561 PIN, Float Arm
    PIN, Float Arm
  • 15
    162532 FLOAT
    FLOAT
  • 16
    10-16196 SCREW
    SCREW
  • 17
    27-802699002 GASKET
    GASKET
  • 18
    802690004 FLOAT BOWL
    Handle
    FLOAT BOWL
    Handle
  • 18
    802690004 FLOAT BOWL
    9.9 Handle EU SN# 0P404258 & Below
    FLOAT BOWL
    9.9 Handle EU SN# 0P404258 & Below
  • 18
    802694010 FLOAT BOWL
    9.9 Handle EU SN# 0P404259 & Up
    FLOAT BOWL
    9.9 Handle EU SN# 0P404259 & Up
  • 18
    802690009 FLOAT BOWL
    Remote
    FLOAT BOWL
    Remote
  • 18
    802690009 FLOAT BOWL
    9.9 Remote EU SN# 0P404258 & Below
    FLOAT BOWL
    9.9 Remote EU SN# 0P404258 & Below
  • 18
    802694010 FLOAT BOWL
    9.9 Remote EU SN# 0P404259 & Up
    FLOAT BOWL
    9.9 Remote EU SN# 0P404259 & Up
  • 19
    10-16260 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 20
    53-895113 RING, Retaining
    RING, Retaining
  • 21
    19-895114 CAP
    CAP
  • 22
    895115 BOOT, Rubber
    BOOT, Rubber
  • 23
    10-809578005 SCREW, Drain
    SCREW, Drain
  • 24
    27-802691 GASKET
    GASKET
  • 25
    21-851812005 CHECK VALVE
    CHECK VALVE
  • 26
    853830001 PLUNGER
    PLUNGER
  • 27
    24-895116 SPRING
    SPRING
  • 28
    895117001 COVER
    Electric Remote
    COVER
    Electric Remote
  • 29
    895117 COVER
    Handle Manual Remote
    COVER
    Handle Manual Remote
  • 30
    10-855544013 SCREW
    SCREW
  • 31
    10-803509013 SCREW, Drain
    Electric Remote
    SCREW, Drain
    Electric Remote
  • 32
    27-855567002 GASKET
    Electric Remote
    GASKET
    Electric Remote
  • 33
    802705001 PLATE
    PLATE
  • 34
    10-851813002 SCREW
    SCREW
  • 35
    10-803509010 SCREW, Pilot
    Bodensee
    SCREW, Pilot
    Bodensee
  • 36
    25-895132001 O-RING
    Bodensee
    O-RING
    Bodensee
  • 37
    24-16266004 SPRING
    Bodensee
    SPRING
    Bodensee
  • 38
    16333 ROD, Snap
    ROD, Snap
  • 39
    855561007 ROD, Choke Link
    Handle
    ROD, Choke Link
    Handle
  • 40
    855565002 KNOB, Choke
    SN# 0R068397 & Below
    KNOB, Choke
    SN# 0R068397 & Below
  • 40
    855565002 KNOB, Choke
    SN# 0P400999 & Below
    KNOB, Choke
    SN# 0P400999 & Below
  • 40
    855565002 KNOB, Choke
    SN# 0R068398 & Up
    KNOB, Choke
    SN# 0R068398 & Up
  • 40
    855565002 KNOB, Choke
    SN# 0P401000 & Up
    KNOB, Choke
    SN# 0P401000 & Up
  • 41
    23-851858005 BUSHING
    Handle
    BUSHING
    Handle
  • 42
    8M0121496 ROD, Choke Link
    Manual Remote
    ROD, Choke Link
    Manual Remote
  • 43
    25-881305007 GROMMET
    Manual Remote
    GROMMET
    Manual Remote
  • 44
    25-898103224 O-RING
    O-RING
  • -
    8M0044576 KIT, Carb Repair
    9.9
    KIT, Carb Repair
    9.9
