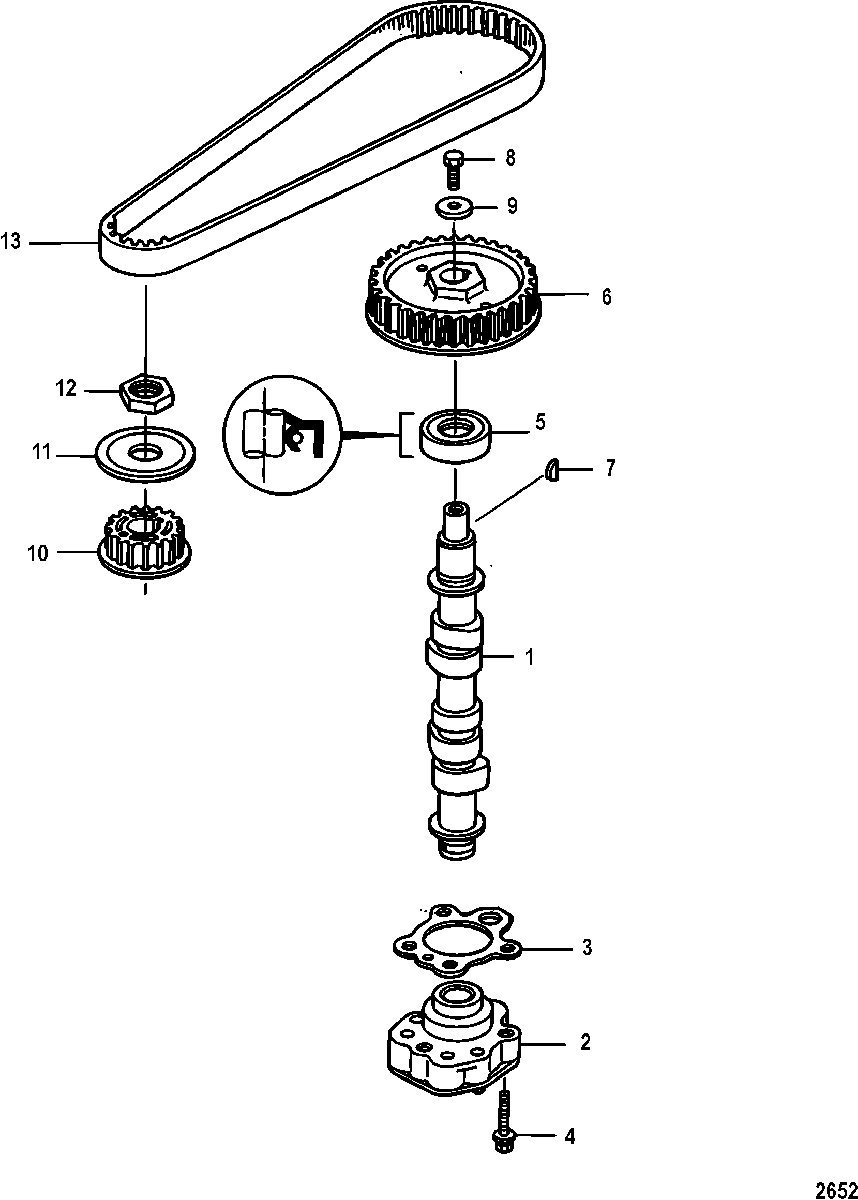

Camshaft and Oil Pump для Mariner - 9.9 (4-STROKE)(209cc) 0R042475 & Up

  • №
    Артикул
    Название
  • 1
    834956005 CAMSHAFT
    SN# 0R139508 & Below
    CAMSHAFT
    SN# 0R139508 & Below
  • 1
    834956005 CAMSHAFT
    SN# 0R139509 & Up
    CAMSHAFT
    SN# 0R139509 & Up
  • 2
    834967T03 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 3
    27-853523001 GASKET, Oil Pump
    GASKET, Oil Pump
  • 4
    10-850879001 BOLT
    BOLT
  • 5
    26-825455001 SEAL, Oil
    SEAL, Oil
  • 6
    43-834973001 GEAR, Driven
    GEAR, Driven
  • 7
    28-95229 KEY
    KEY
  • 8
    10-803858001 BOLT
    BOLT
  • 9
    12-895118 WASHER
    WASHER
  • 10
    43-834955001 GEAR, Drive
    GEAR, Drive
  • 11
    895119 BELT GUIDE
    BELT GUIDE
  • 12
    11-855679001 NUT
    NUT
  • 13
    57-895120 TIMING BELT
    TIMING BELT
  • -
    27-835427A04 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
    POWERHEAD ASSEMBLY
    SN# 0R139508 & Below
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R139509 THRU 0R310614
    POWERHEAD ASSEMBLY
    SN# 0R139509 THRU 0R310614
  • -
    8M0046065 POWERHEAD ASSEMBLY
    SN# 0R310615 & Up
    POWERHEAD ASSEMBLY
    SN# 0R310615 & Up
  • -
    900-835430T07 CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139508 & Below
    CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139508 & Below
  • -
    900-835430T07 CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139509 & Up
    CYLINDER HEAD ASSEMBLY, Complete
    SN# 0R139509 & Up
