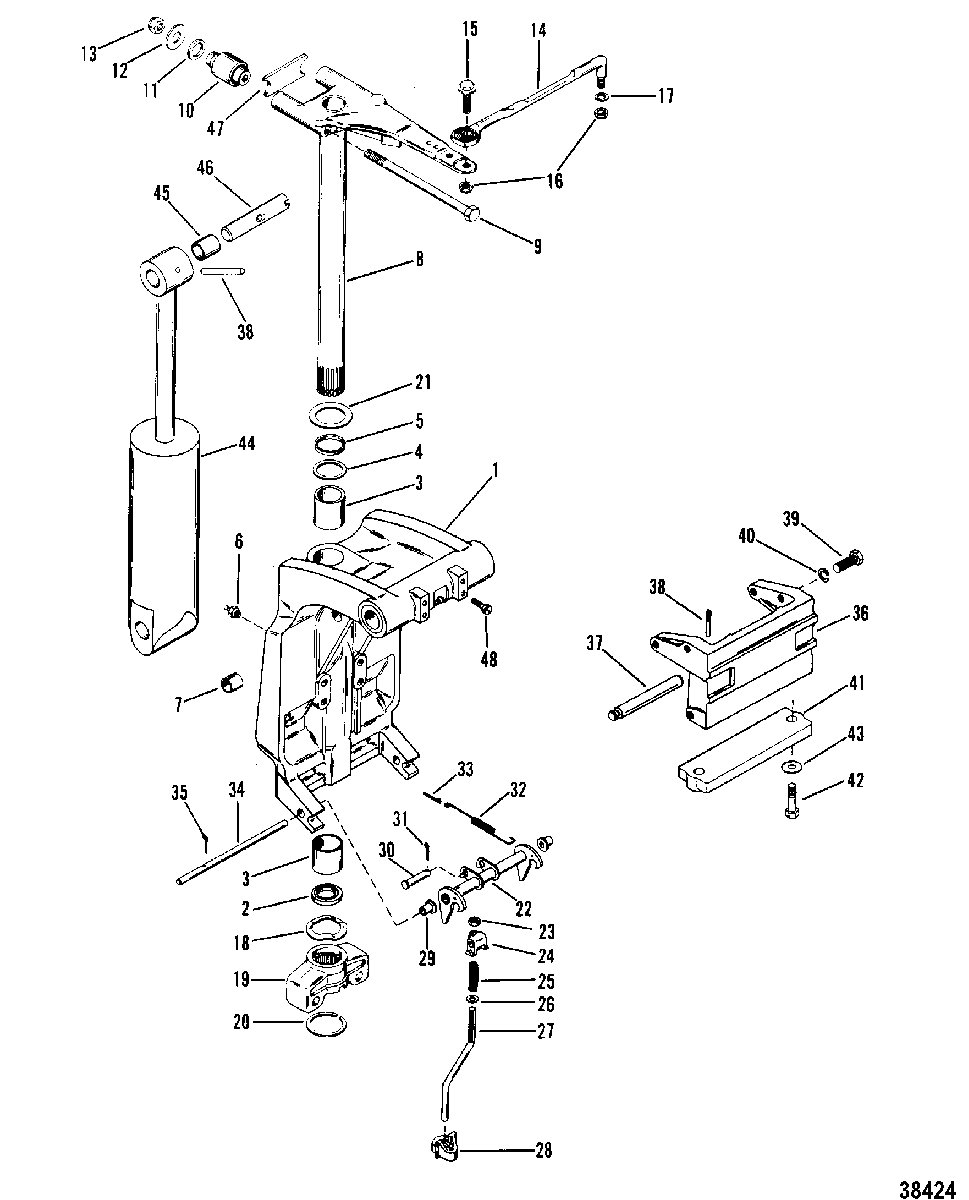

SWIVEL BRACKET AND STEERING ARM для Mariner - 90 (6 CYL.) 6436123 & Up
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(BLACK)SWIVEL BRACKET ASSEMBLY
(BLACK) -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(GRAY)SWIVEL BRACKET ASSEMBLY
(GRAY) -
226-87735 SEAL, Oil, LOWERSEAL, Oil, LOWER
-
323-818764 BUSHING, LOWER AND UPPERBUSHING, LOWER AND UPPER
-
425-33466 O-RING, UPPERO-RING, UPPER
-
523-67668 SPACER, UPPERSPACER, UPPER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
899661A2 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
910-99621 SCREW, (.437-20 x 6.620)SCREW, (.437-20 x 6.620)
-
1075296 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
1112-47840 WASHERWASHER
-
1212-31263 WASHERWASHER
-
1311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1492876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1510-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
1611-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1712-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1813-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
1999644F1 YOKE, Bottom
(BLACK)YOKE, Bottom
(BLACK) -
1999644F2 YOKE, Bottom
(GRAY)YOKE, Bottom
(GRAY) -
2053-67684 RING, RetainingRING, Retaining
-
2112-67670 WASHER, THRUSTWASHER, THRUST
-
2214664A2 LOCK, ReverseLOCK, Reverse
-
2311-82670911 NUT, (.312-24) Stainless Steel
(NON-POWER TRIM)NUT, (.312-24) Stainless Steel
(NON-POWER TRIM) -
24996361 YOKE
(NON-POWER TRIM)YOKE
(NON-POWER TRIM) -
2524-44297 SPRING
(NON-POWER TRIM)SPRING
(NON-POWER TRIM) -
2612-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel
(NON-POWER TRIM)WASHER, (.323 x .563 x .063) Stainless Steel
(NON-POWER TRIM) -
2743414 PUSH ROD (LONG SHAFT)
(NON-POWER TRIM)PUSH ROD (LONG SHAFT)
(NON-POWER TRIM) -
2892704 GUIDE, PUSH ROD
(NON-POWER TRIM)GUIDE, PUSH ROD
(NON-POWER TRIM) -
2923-69132 BUSHING, REVERSE LOCK SHAFT
(NON-POWER TRIM)BUSHING, REVERSE LOCK SHAFT
(NON-POWER TRIM) -
3017-99663 PIN, Clevis, REVERSE LOCK
(NON-POWER TRIM)PIN, Clevis, REVERSE LOCK
(NON-POWER TRIM) -
3118-25191 COTTER PIN, CLEVIS PIN
(NON-POWER TRIM)COTTER PIN, CLEVIS PIN
(NON-POWER TRIM) -
3224-996261 SPRING, REVERSE LOCK
(NON-POWER TRIM)SPRING, REVERSE LOCK
(NON-POWER TRIM) -
3318-47959 COTTER PIN
(NON-POWER TRIM)COTTER PIN
(NON-POWER TRIM) -
3499606 SHAFT, REVERSE LOCK
(NON-POWER TRIM)SHAFT, REVERSE LOCK
(NON-POWER TRIM) -
3518-45882 COTTER PIN, SHAFT
(NON-POWER TRIM)COTTER PIN, SHAFT
(NON-POWER TRIM) -
3699653 BRACKET, SHOCK ABSORBER
(NON-POWER TRIM)BRACKET, SHOCK ABSORBER
(NON-POWER TRIM) -
3799619 SHAFT, SHOCK ABSORBER (LOWER)
(NON-POWER TRIM)SHAFT, SHOCK ABSORBER (LOWER)
(NON-POWER TRIM) -
3817-821539 PIN, Groove, SHOCK ABSORBER
(NON-POWER TRIM)PIN, Groove, SHOCK ABSORBER
(NON-POWER TRIM) -
3910-4000377 SCREW, (M10 x 30), BRACKET
(NON-POWER TRIM)SCREW, (M10 x 30), BRACKET
(NON-POWER TRIM) -
4013-400258 LOCKWASHER, (M10) Stainless Steel
(NON-POWER TRIM)LOCKWASHER, (M10) Stainless Steel
(NON-POWER TRIM) -
4197-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
4210-4000332 SCREW, (M6 x 35), ANODESCREW, (M6 x 35), ANODE
-
4312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4455-99724T15 SHOCK ABSORBER
(BLACK)(NON-POWER TRIM)SHOCK ABSORBER
(BLACK)(NON-POWER TRIM) -
4455-99724T15 SHOCK ABSORBER
(GRAY)(NON-POWER TRIM)SHOCK ABSORBER
(GRAY)(NON-POWER TRIM) -
-41760A2 REPAIR KIT, Shock AbsorberREPAIR KIT, Shock Absorber
-
4523-821207 BUSHING, SHOCK ABSORBER
(NON-POWER TRIM)BUSHING, SHOCK ABSORBER
(NON-POWER TRIM) -
4699625002 SHAFT, SHOCK ABSORBER (UPPER)
(NON-POWER TRIM)SHAFT, SHOCK ABSORBER (UPPER)
(NON-POWER TRIM) -
4728203 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
4810-64014 SCREW, (.250-28 x .500), SWIVEL BRACKETSCREW, (.250-28 x .500), SWIVEL BRACKET
