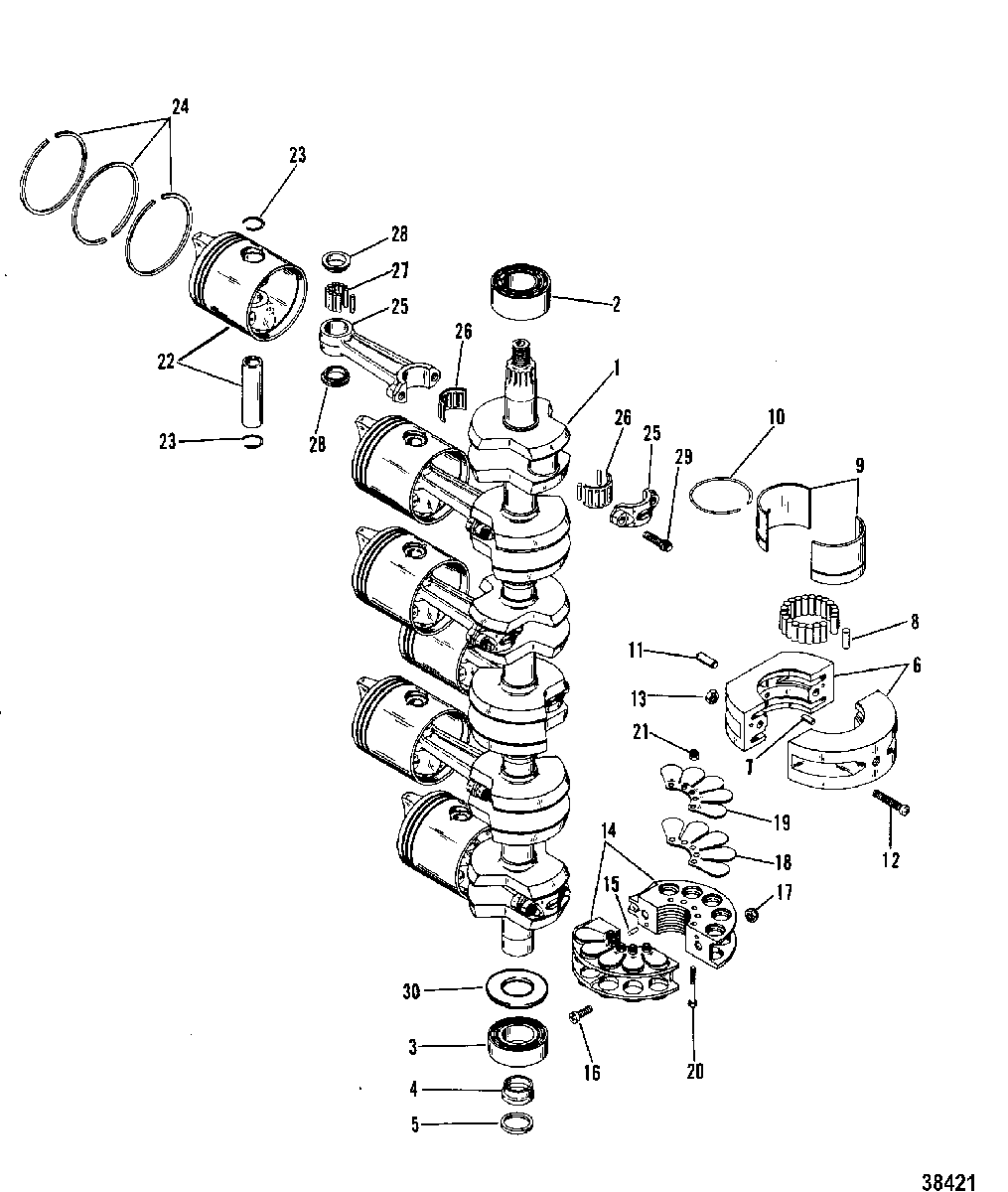

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - 90 (6 CYL.) 6436123 & Up
-
№АртикулНазвание
-
1436-9072A1 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-62567T BEARING, Ball, UPPERBEARING, Ball, UPPER
-
330-63742T BEARING, Ball, LOWERBEARING, Ball, LOWER
-
454196A6 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
565800 PACKING, CARRIERPACKING, CARRIER
-
6535-5397A4 BEARING ASSEMBLY, Center MainBEARING ASSEMBLY, Center Main
-
717-20032 PIN, Dowel, CENTER MAIN BEARINGPIN, Dowel, CENTER MAIN BEARING
-
829-714221 BEARING, Needle, OUTER RACEBEARING, Needle, OUTER RACE
-
926113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1053-26933 RING, Snap, OUTER RACERING, Snap, OUTER RACE
-
1117-47246 PIN, Dowel, STEPPEDPIN, Dowel, STEPPED
-
1210-22968 SCREW, (.250-28 x 1.25), CENTER MAIN BEARINGSCREW, (.250-28 x 1.25), CENTER MAIN BEARING
-
1311-20184 NUT, (1/4-28X7/32), BEARING SCREWNUT, (1/4-28X7/32), BEARING SCREW
-
14540-5266T5 BEARING ASSEMBLY, Main
(90)BEARING ASSEMBLY, Main
(90) -
14540-8663A3 BEARING ASSEMBLY, Main
(115)BEARING ASSEMBLY, Main
(115) -
1517-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
1610-45775 SCREW, (#12-28 x .560) , MAIN BEARINGSCREW, (#12-28 x .560) , MAIN BEARING
-
1711-45774 NUT, MAIN BEARING SCREWNUT, MAIN BEARING SCREW
-
1834-56007A1 REED SET, MATCHED
(90)REED SET, MATCHED
(90) -
1834-99422A1 REED SET, MATCHED
(115)REED SET, MATCHED
(115) -
1934-56008 STOP, Reed
(90)STOP, Reed
(90) -
1934-65319 STOP, Reed, 5 PETAL
(115)STOP, Reed, 5 PETAL
(115) -
1934-99421 STOP, Reed, 4 PETAL
(115)STOP, Reed, 4 PETAL
(115) -
2010-62204 SCREW, REED STOPSCREW, REED STOP
-
2111-53153 NUT, REED STOP SCREWNUT, REED STOP SCREW
-
22774-9137A12 PISTON ASSEMBLY
(STANDARD)(90)PISTON ASSEMBLY
(STANDARD)(90) -
22774-9137A9 PISTON ASSEMBLY
(STANDARD)(115)PISTON ASSEMBLY
(STANDARD)(115) -
22774-9137A13 PISTON ASSEMBLY
(.015 O.S.)(90)PISTON ASSEMBLY
(.015 O.S.)(90) -
22774-9137A10 PISTON ASSEMBLY
(.015 O.S.)(115)PISTON ASSEMBLY
(.015 O.S.)(115) -
22774-9137A14 PISTON ASSEMBLY
(.030 O.S.)(90)PISTON ASSEMBLY
(.030 O.S.)(90) -
22774-9137A11 PISTON ASSEMBLY
(.030 O.S.)(115)PISTON ASSEMBLY
(.030 O.S.)(115) -
2353-857196 RING, Lock, PISTON PINRING, Lock, PISTON PIN
-
2439-78816A12 RING (STANDARD)RING (STANDARD)
-
2439-78811A12 RING SET, Piston - .015 OversizeRING SET, Piston - .015 Oversize
-
2439-88392A12 RING SET, Piston - .030 OversizeRING SET, Piston - .030 Oversize
-
25624-8101A3 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
2631-62596A1 BEARING ASSEMBLY, CRANKPINBEARING ASSEMBLY, CRANKPIN
-
2729-47270 BEARING, PISTON PINBEARING, PISTON PIN
-
2812-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
2910-91012 SCREW, (.250-28 Special), CONNECTING RODSCREW, (.250-28 Special), CONNECTING ROD
-
3015-38095A1 SHIM, CRANKSHAFT BALL BEARINGSHIM, CRANKSHAFT BALL BEARING
-
-27-85653A87 GASKET SETGASKET SET
