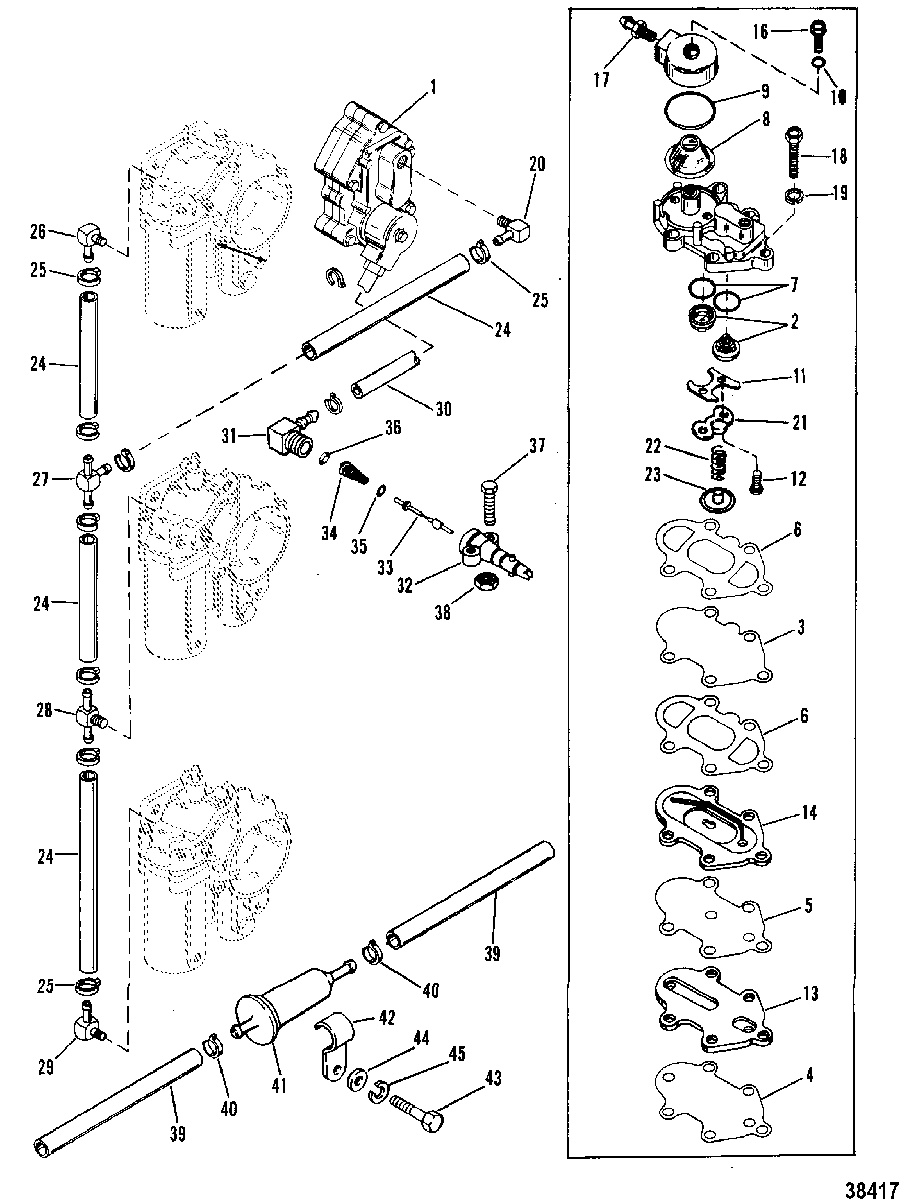

FUEL PUMP AND FUEL LINES(OLD STYLE FUEL PUMP) для Mariner - 90 (6 CYL.) 6436123 & Up

№

Артикул

Название
1

13527A1 PUMP ASSEMBLY, Fuel

PUMP ASSEMBLY, Fuel

0 ₽
2

21-8M0084277 CHECK VALVE ASSEMBLY

CHECK VALVE ASSEMBLY

4 410 ₽
3

89031A3 DIAPHRAGM ASSEMBLY

DIAPHRAGM ASSEMBLY

1 240 ₽
4

NSS NOT SOLD SEPARATE, GASKET-FUEL PUMP

NOT SOLD SEPARATE, GASKET-FUEL PUMP

0 ₽
5

NSS NOT SOLD SEPARATE, GASKET-PULSE CHAMBER

NOT SOLD SEPARATE, GASKET-PULSE CHAMBER

0 ₽
6

NSS NOT SOLD SEPARATE, GASKET-FUEL PUMP

NOT SOLD SEPARATE, GASKET-FUEL PUMP

0 ₽
7

NSS NOT SOLD SEPARATE, GASKET-CHECK VALVE TO HOUSING

NOT SOLD SEPARATE, GASKET-CHECK VALVE TO HOUSING

0 ₽
8

35-59072 SCREEN, FUEL INLET

SCREEN, FUEL INLET

490 ₽
9

25-35480 O-RING, (1.237 x .103), FUEL INLET COVER

O-RING, (1.237 x .103), FUEL INLET COVER

200 ₽
10

25-38933 O-RING, COVER SCREW

O-RING, COVER SCREW

110 ₽
11

23004 RETAINER, CHECK VALVE

RETAINER, CHECK VALVE

0 ₽
12

10-43723 SCREW, (#6-32 x .500), RETAINER

SCREW, (#6-32 x .500), RETAINER

200 ₽
13

86295 BASE, FUEL PUMP

BASE, FUEL PUMP

0 ₽
14

879901 PULSE CHAMBER, FUEL PUMP

PULSE CHAMBER, FUEL PUMP

2 320 ₽
15

35-91078A1 COVER ASSEMBLY, FUEL INLET

COVER ASSEMBLY, FUEL INLET

4 390 ₽
16

10-89766 SCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVER

SCREW, (#10-32 x .620) Stainless Steel, FUEL FILTER COVER

150 ₽
17

22-64705 FITTING, INLET COVER

FITTING, INLET COVER

710 ₽
18

10-41772 SCREW, FUEL PUMP (1-1/2")

SCREW, FUEL PUMP (1-1/2")

0 ₽
19

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel

60 ₽
20

22-19688 FITTING, FUEL OUTLET

FITTING, FUEL OUTLET

0 ₽
21

86026 RETAINER, SPRING

RETAINER, SPRING

0 ₽
22

24-86207 SPRING, COMPRESSION

SPRING, COMPRESSION

350 ₽
23

86252 CAP, SPRING END

CAP, SPRING END

280 ₽
24

32-8M0108355 LINE, (57.00 Inches Bulk) (W/O INLINE FILTER)

LINE, (57.00 Inches Bulk) (W/O INLINE FILTER)

5 260 ₽
25

54-68424 CLAMP, FUEL LINE ATTACHING

CLAMP, FUEL LINE ATTACHING

260 ₽
26

22-19688 FITTING, ELBOW - UPPER CARBURETOR

FITTING, ELBOW - UPPER CARBURETOR

0 ₽
27

22-73318 TEE, Plastic, FUEL LINE

TEE, Plastic, FUEL LINE

330 ₽
28

22-64706001 TEE, CENTER CARBURETOR

TEE, CENTER CARBURETOR

2 910 ₽
29

22-19688 FITTING, LOWER CARBURETOR

FITTING, LOWER CARBURETOR

0 ₽
30

32-8M0108355 LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (18-1/2")

LINE, (57.00 Inches Bulk), ADAPTOR TO FUEL PUMP (18-1/2")

5 260 ₽
31

22-63981 FITTING, FUEL LINE TO ADAPTOR

FITTING, FUEL LINE TO ADAPTOR

4 670 ₽
32

30186 ADAPTOR, CHECK UNIT

ADAPTOR, CHECK UNIT

4 550 ₽
33

30185Q3 STEM, CHECK UNIT ADAPTOR

STEM, CHECK UNIT ADAPTOR

7 310 ₽
34

24-30189 SPRING, ADAPTOR STEM

SPRING, ADAPTOR STEM

220 ₽
35

25-16524 O-RING, ADAPTOR STEM

O-RING, ADAPTOR STEM

120 ₽
36

30188 WASHER, ADAPTOR

WASHER, ADAPTOR

120 ₽
37

10-36154 SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTON COWL

SCREW, (.250-28 x 1.380), ADAPTOR TO BOTTON COWL

0 ₽
38

11-36069 NUT, ADAPTOR SCREW

NUT, ADAPTOR SCREW

290 ₽
39

32-8M0108355 LINE, (57.00 Inches Bulk)

LINE, (57.00 Inches Bulk)

5 260 ₽
40

54-68424 CLAMP, FUEL LINE -WITH INLINE FILTER

CLAMP, FUEL LINE -WITH INLINE FILTER

260 ₽
41

35-816296Q03 FILTER, Fuel

FILTER, Fuel

1 400 ₽
42

54-26404 CLAMP, FUEL FILTER -WITH INLINE FILTER

CLAMP, FUEL FILTER -WITH INLINE FILTER

0 ₽
43

10-78291 SCREW, (.190-24 x .500), FUEL FILTER CLAMP -WITH INLINE FILTER

SCREW, (.190-24 x .500), FUEL FILTER CLAMP -WITH INLINE FILTER

140 ₽
44

8M0084613 C WASHER

C WASHER

100 ₽
45

13-26996 LOCKWASHER, (#10) Stainless Steel, CLAMP SCREW -WITH INLINE FILTER

LOCKWASHER, (#10) Stainless Steel, CLAMP SCREW -WITH INLINE FILTER

60 ₽
