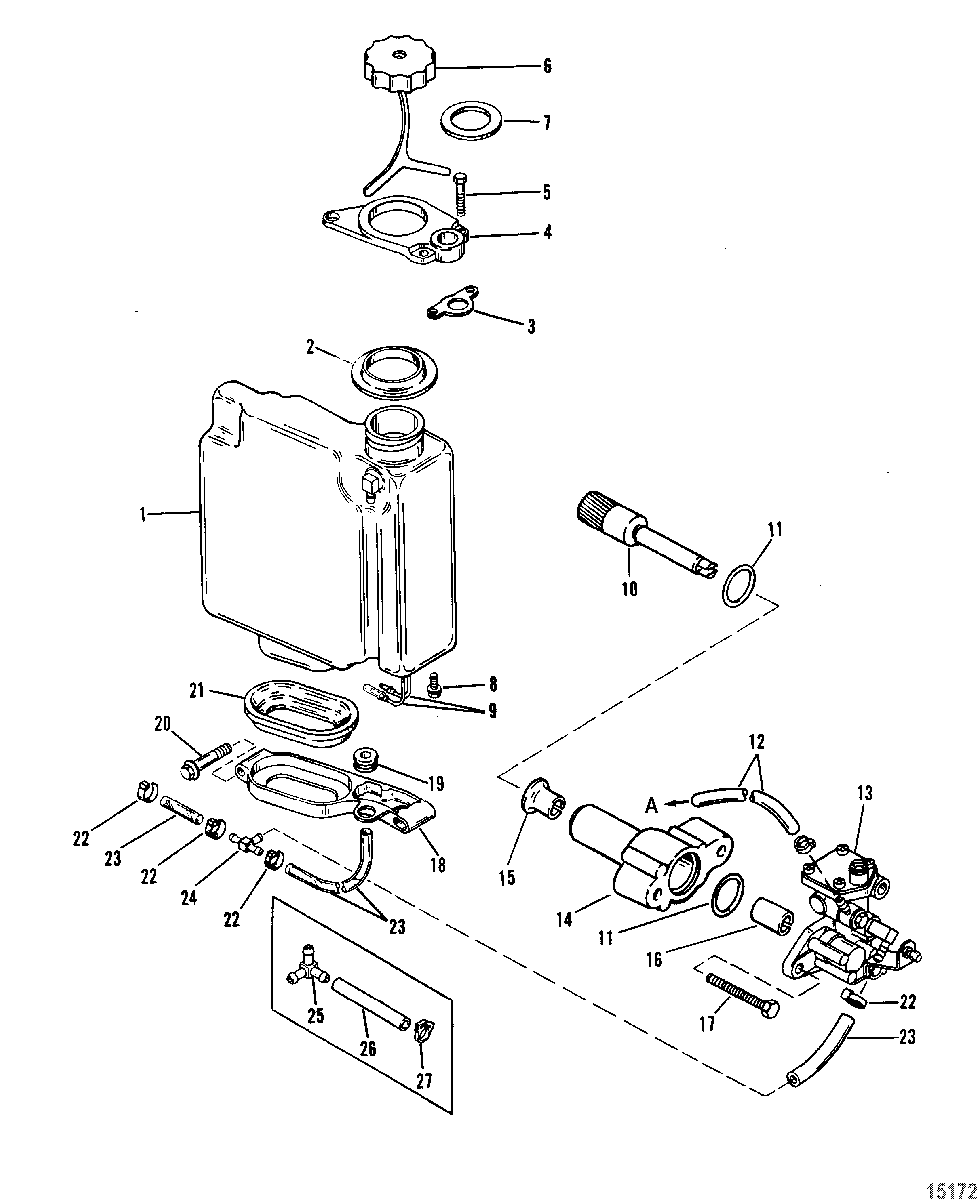

Oil Injection Components для Mariner - 90 (3 CYL.) 9506481 THRU 9589038

  • №
    Артикул
    Название
  • 1
    1255-8627A7 TANK ASSEMBLY, Oil
    TANK ASSEMBLY, Oil
  • 2
    99160001 BOOT, Oil Tank, Upper
    BOOT, Oil Tank, Upper
  • 3
    44437 COVER
    COVER
  • 4
    988952 BRACKET, Oil Tank, Upper
    BRACKET, Oil Tank, Upper
  • 5
    10-4010630 SCREW, Oil Tank Bracket
    SCREW, Oil Tank Bracket
  • 6
    36-42653A3 CAP ASSEMBLY, Oil Tank
    CAP ASSEMBLY, Oil Tank
  • 7
    27-42999T GASKET
    GASKET
  • 8
    10-12896 SCREW, (#8-18 x .310), Switch
    SCREW, (#8-18 x .310), Switch
  • 9
    87-12886A6 SWITCH ASSEMBLY, Oil Tank
    SWITCH ASSEMBLY, Oil Tank
  • 10
    43-430204 GEAR, Driven
    GEAR, Driven
  • 11
    25-62705 O-RING, Oil Pump
    O-RING, Oil Pump
  • 12
    32-82381335 TUBING
    (A = To Fuel Pump)
    TUBING
    (A = To Fuel Pump)
  • 13
    42959A2 PUMP ASSEMBLY, Oil
    PUMP ASSEMBLY, Oil
  • 14
    17335A3 ADAPTOR ASSEMBLY, Oil Pump
    ADAPTOR ASSEMBLY, Oil Pump
  • 15
    23-17597 BUSHING, Flanged, Adaptor
    BUSHING, Flanged, Adaptor
  • 16
    23-17596 BUSHING, Adaptor
    BUSHING, Adaptor
  • 17
    10-82104540 SCREW, Oil Pump
    SCREW, Oil Pump
  • 18
    42888 BRACKET, Oil Tank Base, Oil Tank
    BRACKET, Oil Tank Base, Oil Tank
  • 19
    25-56291 GROMMET
    GROMMET
  • 20
    10-82155050 SCREW, Base
    SCREW, Base
  • 21
    99161 BOOT, Oil Tank Base
    BOOT, Oil Tank Base
  • 22
    54-816311T TIE STRAP
    TIE STRAP
  • 23
    32-82381455 TUBING, Refer To Reference Number 24
    TUBING, Refer To Reference Number 24
  • 24
    22-73318 TEE, Plastic, Refer To Reference Number 24
    TEE, Plastic, Refer To Reference Number 24
  • 23
    32-82381455 TUBING, Refer To Reference Number 25
    TUBING, Refer To Reference Number 25
  • 25
    22-44456 FITTING, Refer To Reference Number 25
    FITTING, Refer To Reference Number 25
  • 26
    32-82381455 TUBING, (14.50 Inches Bulk) (10.00 Inch) Refer To Reference Number 25
    TUBING, (14.50 Inches Bulk) (10.00 Inch) Refer To Reference Number 25
  • 27
    54-415823 CLAMP, Refer To Reference Number 25
    CLAMP, Refer To Reference Number 25
