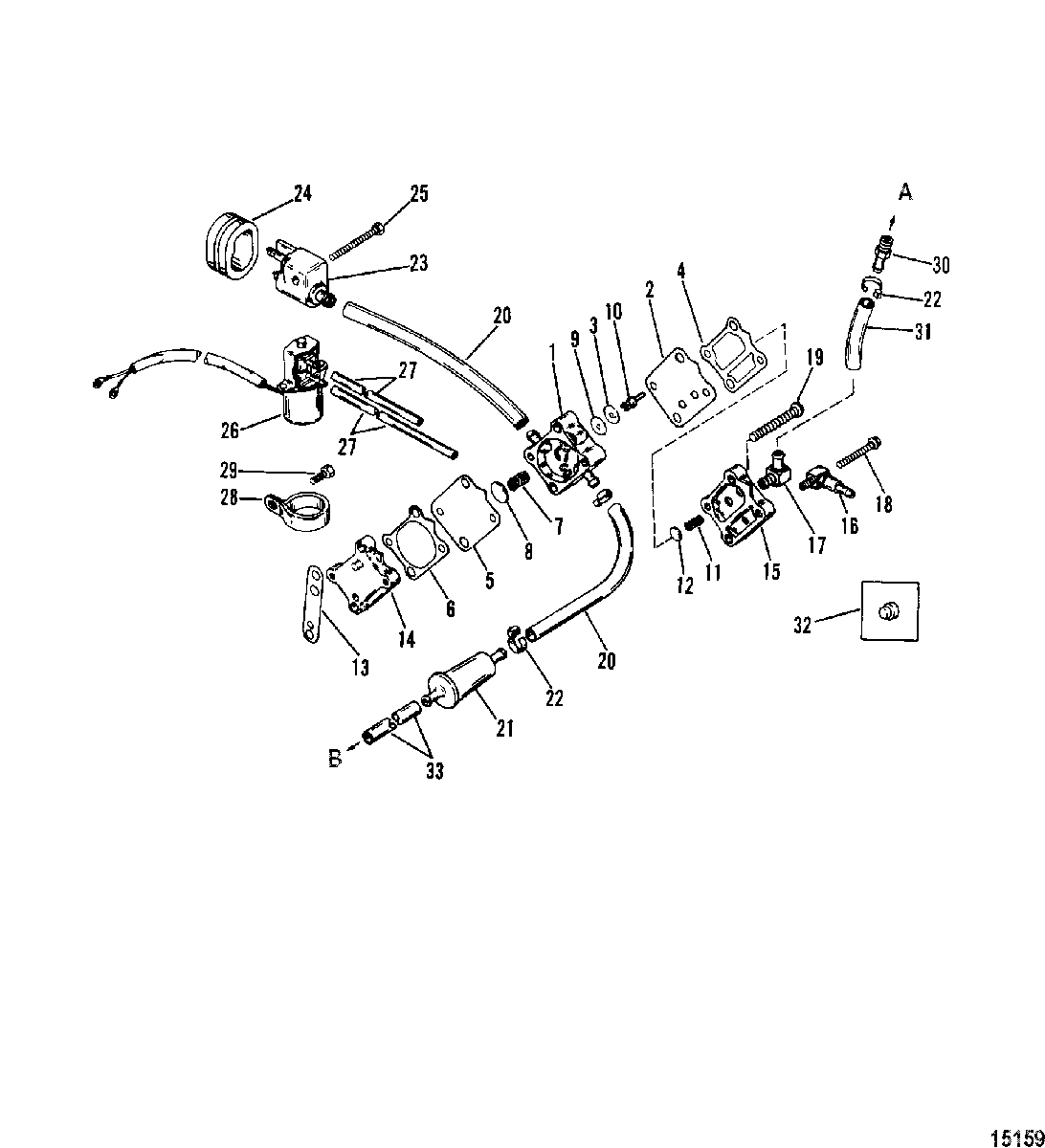

Fuel Pump для Mariner - 90 (3 CYL.) 9506481 THRU 9589038

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    42909A4 DIAPHRAGM KIT
    (Contents Of (27-43004A86) Gasket Set)
    DIAPHRAGM KIT
    (Contents Of (27-43004A86) Gasket Set)
  • 3
    NSS NOT SOLD SEPARATE, Check Valve, Rubber
    NOT SOLD SEPARATE, Check Valve, Rubber
  • 4
    NSS NOT SOLD SEPARATE, Gasket, Boost
    NOT SOLD SEPARATE, Gasket, Boost
  • 5
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 6
    NSS NOT SOLD SEPARATE, Gasket Pulse
    NOT SOLD SEPARATE, Gasket Pulse
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 10
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 11
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 12
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 13
    27-987691 GASKET, Base
    (Contents Of 27-43004A86) Gasket Set
    GASKET, Base
    (Contents Of 27-43004A86) Gasket Set
  • 14
    98768 BASE, Fuel Pump
    BASE, Fuel Pump
  • 15
    98775A1 PLATE, Fuel Pump
    PLATE, Fuel Pump
  • 16
    21-424811 CHECK VALVE, Oil Injection
    CHECK VALVE, Oil Injection
  • 17
    22-19688 FITTING
    FITTING
  • 18
    10-82104540 SCREW, Fuel Pump
    SCREW, Fuel Pump
  • 19
    10-40057134 SCREW, (M6 x 50), Fuel Pump To Crankcase
    SCREW, (M6 x 50), Fuel Pump To Crankcase
  • 20
    32-8M0108349 TUBING
    TUBING
  • 21
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 22
    54-816311T TIE STRAP, Fuel Tubing
    TIE STRAP, Fuel Tubing
  • 23
    22-816856Q3 CONNECTOR, Fuel
    CONNECTOR, Fuel
  • 24
    25-145091 GROMMET, Fuel Connector
    GROMMET, Fuel Connector
  • 25
    10-4010635 SCREW, Fuel Connector
    SCREW, Fuel Connector
  • 26
    89-819503A2 VALVE, Enrichner
    VALVE, Enrichner
  • 27
    32-1430165 TUBING, (38.00 Inches Bulk), Enrichner Valve
    TUBING, (38.00 Inches Bulk), Enrichner Valve
  • 28
    54-15279 CLAMP, Enrichner Valve
    CLAMP, Enrichner Valve
  • 29
    10-82127335 SCREW, (M8 x 1.25 x 35) , Clamp
    SCREW, (M8 x 1.25 x 35) , Clamp
  • 30
    22-64705 FITTING, Fuel Line
    (A = To Crankcase)
    FITTING, Fuel Line
    (A = To Crankcase)
  • 31
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • 32
    22-56800 PLUG, Pipe (.0625-27), Non Oil Injection
    PLUG, Pipe (.0625-27), Non Oil Injection
  • 33
    32-19017A1 LINE ASSEMBLY, Fuel
    (B = To Carburetor)
    LINE ASSEMBLY, Fuel
    (B = To Carburetor)
  • -
    42909A4 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • -
    27-43004A99 GASKET SET
    GASKET SET
