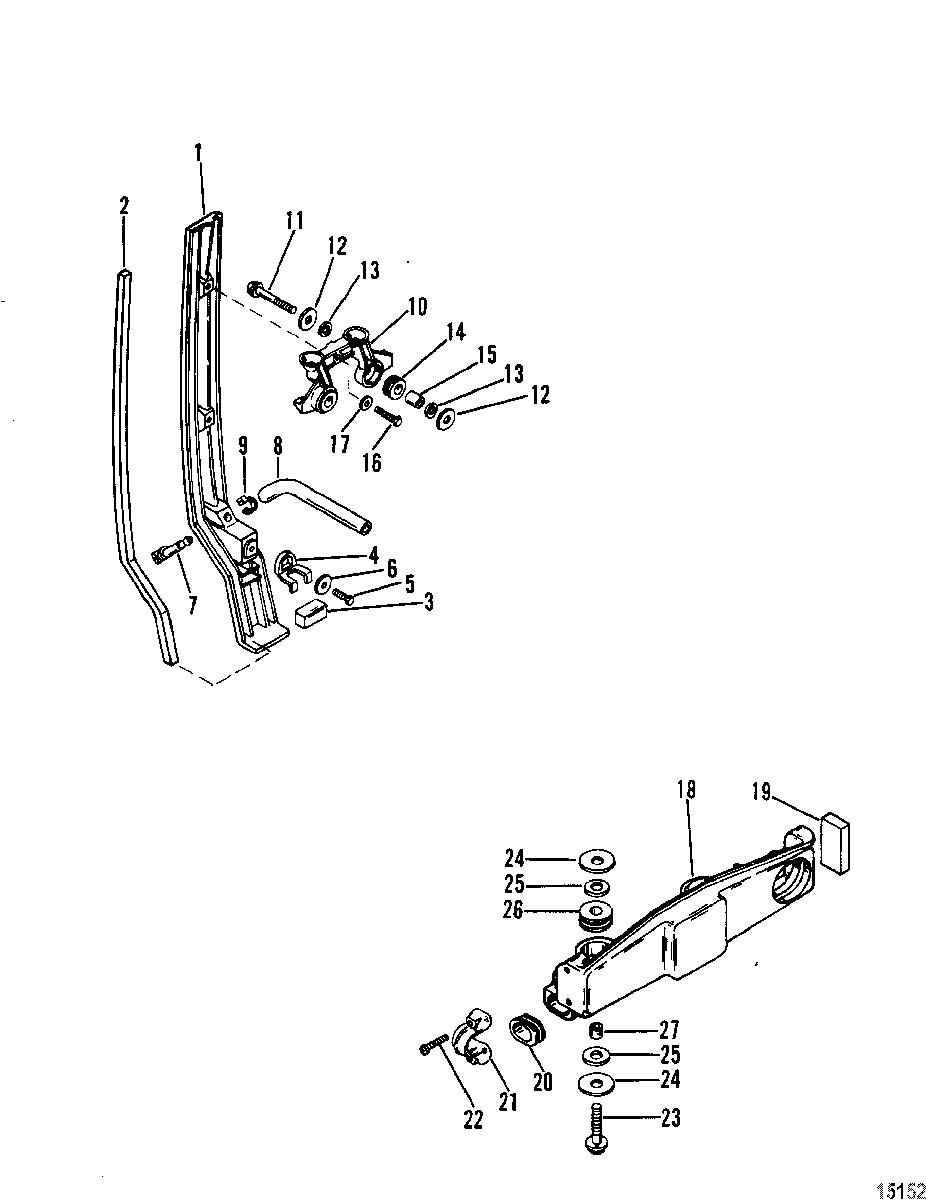

Cowl Mounting Brackets для Mariner - 90 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
142965A1 BRACKET ASSEMBLY, Cowl Seal, BlackBRACKET ASSEMBLY, Cowl Seal, Black
-
142965A2 BRACKET ASSEMBLY, Cowl Seal, GrayBRACKET ASSEMBLY, Cowl Seal, Gray
-
142965A2 BRACKET ASSEMBLY, Cowl Seal, OysterBRACKET ASSEMBLY, Cowl Seal, Oyster
-
2183061 SEAL, Bracket, Black, GraySEAL, Bracket, Black, Gray
-
2193861 SEAL, Bracket, OysterSEAL, Bracket, Oyster
-
342935 SEALSEAL
-
442908 RESTRAINTRESTRAINT
-
510-400015 SCREW, (M5 x 10), RestraintSCREW, (M5 x 10), Restraint
-
612-42118 WASHER, Restraint ScrewWASHER, Restraint Screw
-
742907 CONNECTOR, Tell Tale, Black, GrayCONNECTOR, Tell Tale, Black, Gray
-
7429071 CONNECTOR, Tell Tale, OysterCONNECTOR, Tell Tale, Oyster
-
832-8M0108349 TUBING, Tell TaleTUBING, Tell Tale
-
954-816311T TIE STRAPTIE STRAP
-
10932642 HOUSING, HingeHOUSING, Hinge
-
1110-8M0103817 SCREW, HousingSCREW, Housing
-
1212-814803 WASHER, Housing ScrewWASHER, Housing Screw
-
1312-814806 WASHER, Housing ScrewWASHER, Housing Screw
-
1425-88033 GROMMET, Housing ScrewGROMMET, Housing Screw
-
1523-14395 BUSHING, Housing ScrewBUSHING, Housing Screw
-
1610-4000123 SCREW, (M5 x 30), Housing To BracketSCREW, (M5 x 30), Housing To Bracket
-
1712-42118 WASHER, Housing ScrewWASHER, Housing Screw
-
1842952T BRACKET, Support, Front, BlackBRACKET, Support, Front, Black
-
1842952T6 BRACKET, Support, Front, GrayBRACKET, Support, Front, Gray
-
1842952T6 BRACKET, Support, Front, OysterBRACKET, Support, Front, Oyster
-
1967260 SEAL, Control CablesSEAL, Control Cables
-
2025-67272 GROMMET, BracketGROMMET, Bracket
-
2188621 RETAINER, Control Cables, Non Power TrimRETAINER, Control Cables, Non Power Trim
-
2199447 RETAINER, Control Cables, Power TrimRETAINER, Control Cables, Power Trim
-
2210-40011109 SCREW, (M5 x 25), RetainerSCREW, (M5 x 25), Retainer
-
2310-82127335 SCREW, (M8 x 1.25 x 35) , RetainerSCREW, (M8 x 1.25 x 35) , Retainer
-
2412-814803 WASHER, Bracket ScrewWASHER, Bracket Screw
-
2512-814806 WASHER, Bracket ScrewWASHER, Bracket Screw
-
2625-88033 GROMMET, BracketGROMMET, Bracket
-
2723-14395 BUSHING, Bracket ScrewBUSHING, Bracket Screw
