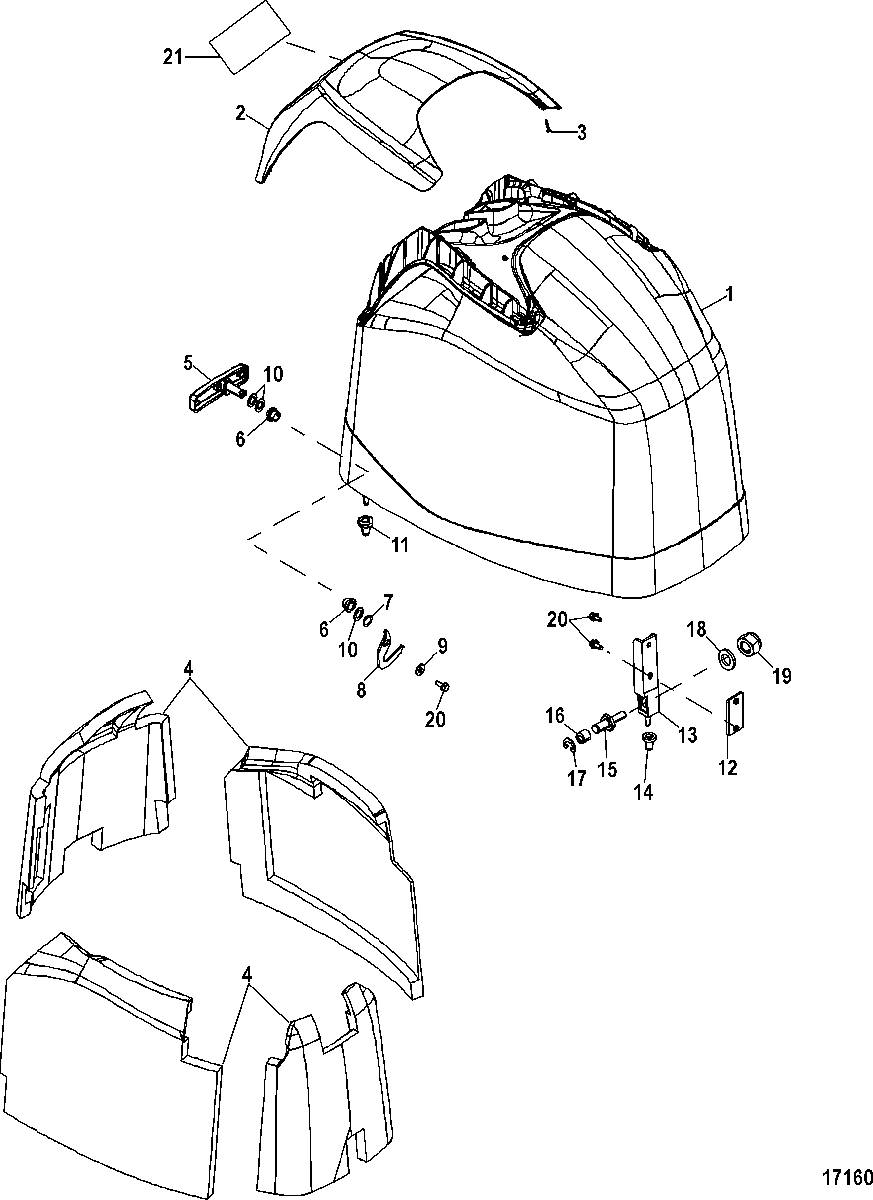

Top Cowl, 1B943219 and above для Mariner - 75 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    100-8M0075361 TOP COWL ASSEMBLY, Mariner
    TOP COWL ASSEMBLY, Mariner
  • 1
    100-8M0074089 TOP COWL ASSEMBLY, Mercury
    TOP COWL ASSEMBLY, Mercury
  • 1
    100-8M0075360 TOP COWL ASSEMBLY, Mercury, Without decals
    TOP COWL ASSEMBLY, Mercury, Without decals
  • 1
    100-8M0075361 TOP COWL ASSEMBLY, Mariner, Without decals
    TOP COWL ASSEMBLY, Mariner, Without decals
  • 2
    897529T CAP, Air Dam - Mercury
    CAP, Air Dam - Mercury
  • 2
    897529T01 CAP, Air Dam - Mariner
    CAP, Air Dam - Mariner
  • 3
    10-888950020 SCREW, (M4 x 20 mm)
    SCREW, (M4 x 20 mm)
  • 4
    8M0000346 SOUND BLANKET ASSEMBLY
    SOUND BLANKET ASSEMBLY
  • 5
    831207A16 HANDLE KIT, Cowl Latch
    Plastic
    HANDLE KIT, Cowl Latch
    Plastic
  • 6
    23-812707 BUSHING
    BUSHING
  • 7
    13-12134 WASHER, Wave
    WASHER, Wave
  • 8
    8M0001081 CAM
    CAM
  • 9
    12-4002316 WASHER
    WASHER
  • 10
    12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
    WASHER, (.520 x .850 x .060) Nylon - Black
  • 11
    815477 BUMPER, Latch
    BUMPER, Latch
  • 12
    897975 PLATE, Backing
    PLATE, Backing
  • 13
    8M0036792 BRACKET, Front
    BRACKET, Front
  • 14
    815477 BUMPER, Latch
    BUMPER, Latch
  • 15
    8155381 PIN, Roll
    PIN, Roll
  • 16
    815263 ROLLER
    ROLLER
  • 17
    53-8237951 RING, Retaining
    RING, Retaining
  • 18
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 19
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 20
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
  • 21
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • -
    37-8M0107468 DECAL SET, 80/100
    DECAL SET, 80/100
  • -
    37-8M0063366 DECAL, Horsepower (80)
    DECAL, Horsepower (80)
  • -
    37-8M0063368 DECAL, Horsepower (100)
    DECAL, Horsepower (100)
  • -
    37-8M0107468 DECAL SET, 75/90/115
    DECAL SET, 75/90/115
  • -
    37-8M0063365 DECAL, Horsepower (75)
    DECAL, Horsepower (75)
  • -
    37-8M0063367 DECAL, Horsepower (90)
    DECAL, Horsepower (90)
  • -
    37-8M0063369 DECAL, Horsepower (115)
    DECAL, Horsepower (115)
  • -
    37-898822001 DECAL, Wrap Mariner 75
    DECAL, Wrap Mariner 75
  • -
    37-898822002 DECAL, Wrap Mariner 80
    DECAL, Wrap Mariner 80
  • -
    37-898822003 DECAL, Wrap Mariner 90
    DECAL, Wrap Mariner 90
  • -
    37-898822004 DECAL, Wrap Mariner 100
    DECAL, Wrap Mariner 100
  • -
    37-898822005 DECAL, Wrap Mariner 115
    DECAL, Wrap Mariner 115
  • -
    37-8M0043706 DECAL, M Icon, 60mm-Black
    DECAL, M Icon, 60mm-Black
