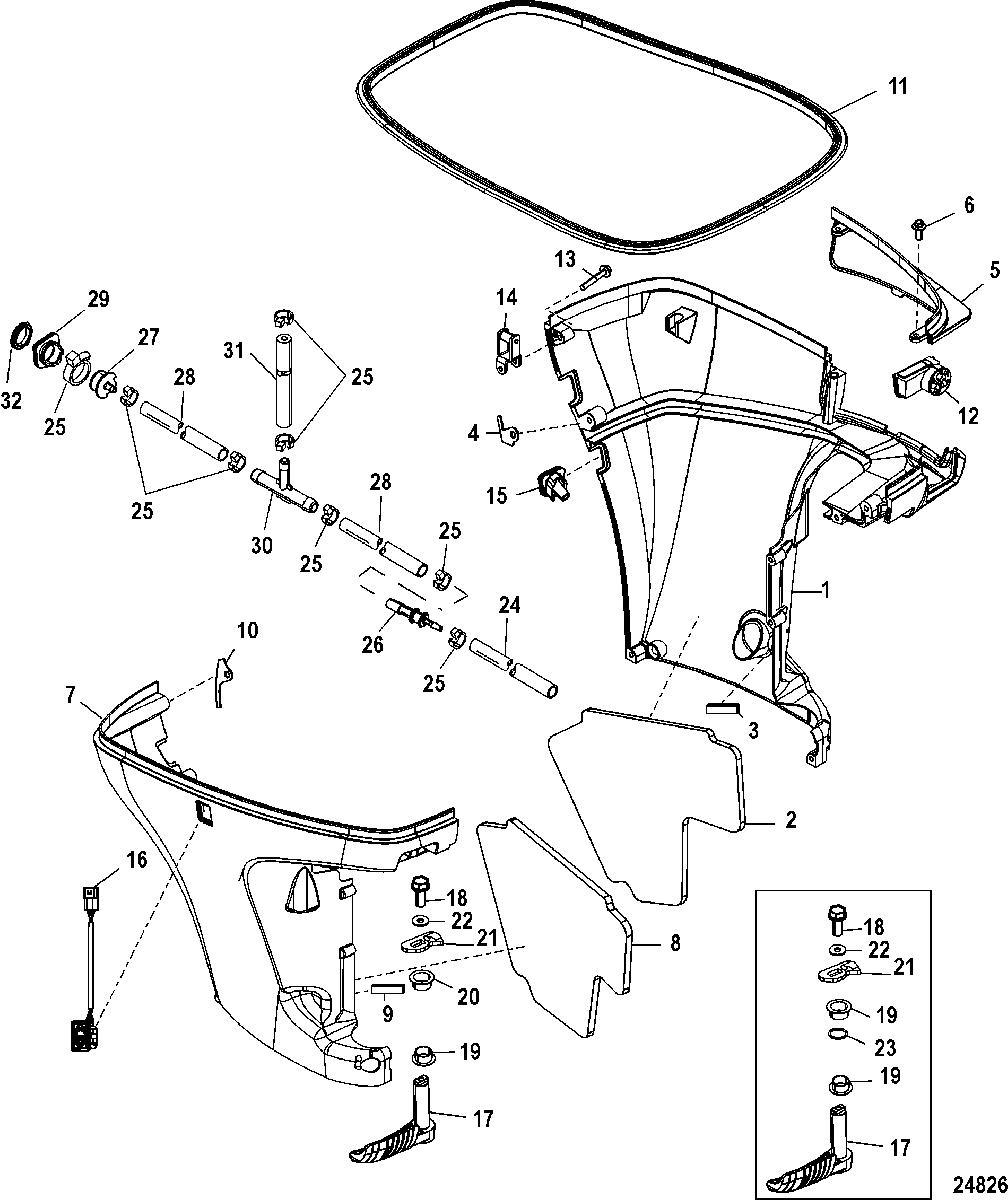

Bottom Cowl для Mariner - 75 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    100-8M0107317 BOTTOM COWL ASSEMBLY, Port
    BOTTOM COWL ASSEMBLY, Port
  • 2
    898490 SOUND BLANKET, Port
    SOUND BLANKET, Port
  • 3
    8M0043364 BUMPER
    BUMPER
  • 4
    8M0001077 GASKET, Foam, Included in bottom cowls.
    GASKET, Foam, Included in bottom cowls.
  • 5
    897658T INSERT
    INSERT
  • 6
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 7
    100-8M0107318 BOTTOM COWL ASSEMBLY, Starboard
    BOTTOM COWL ASSEMBLY, Starboard
  • 8
    898491 SOUND BLANKET, Starboard
    SOUND BLANKET, Starboard
  • 9
    8M0043364 BUMPER
    BUMPER
  • 10
    8M0000540 GASKET, Foam, Included in bottom cowls.
    GASKET, Foam, Included in bottom cowls.
  • 11
    8M0111278 SEAL, Cowl (41.00 Inches)
    SEAL, Cowl (41.00 Inches)
  • 12
    25-889724 GROMMET
    GROMMET
  • 13
    10-82130040 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 14
    831209 RETAINER
    RETAINER
  • 15
    898805 BOOT, Idle Exhaust
    BOOT, Idle Exhaust
  • 16
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 17
    889740A02 HANDLE KIT
    HANDLE KIT
  • 18
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • 19
    23-33589 BUSHING
    White/Upper and Lower - Design I
    BUSHING
    White/Upper and Lower - Design I
  • 19
    23-33589 BUSHING
    White/Lower - Design II
    BUSHING
    White/Lower - Design II
  • 20
    23-8M0001595 BUSHING, Black
    Upper - Design II
    BUSHING, Black
    Upper - Design II
  • 21
    8219423 PAWL
    PAWL
  • 22
    12-69057 WASHER, (.281 x .734 x .063)
    WASHER, (.281 x .734 x .063)
  • 23
    NSS NOT SOLD SEPARATE, O-Ring
    Order 8M0001595 - Design I
    NOT SOLD SEPARATE, O-Ring
    Order 8M0001595 - Design I
  • 24
    32-9912688 TUBING, (36.00 Inches Bulk)
    TUBING, (36.00 Inches Bulk)
  • 25
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 26
    22-898029 FITTING, Reducer
    FITTING, Reducer
  • 27
    22-827948 FITTING
    FITTING
  • 28
    32-8M0108355 HOSE, (57.00 Inches Bulk)
    HOSE, (57.00 Inches Bulk)
  • 29
    8M0039078 GROMMET
    GROMMET
  • 30
    22-817518 TEE
    TEE
  • 31
    32-881535 HOSE, (32.00 Inches)
    HOSE, (32.00 Inches)
  • 32
    12-855576 WASHER
    WASHER
