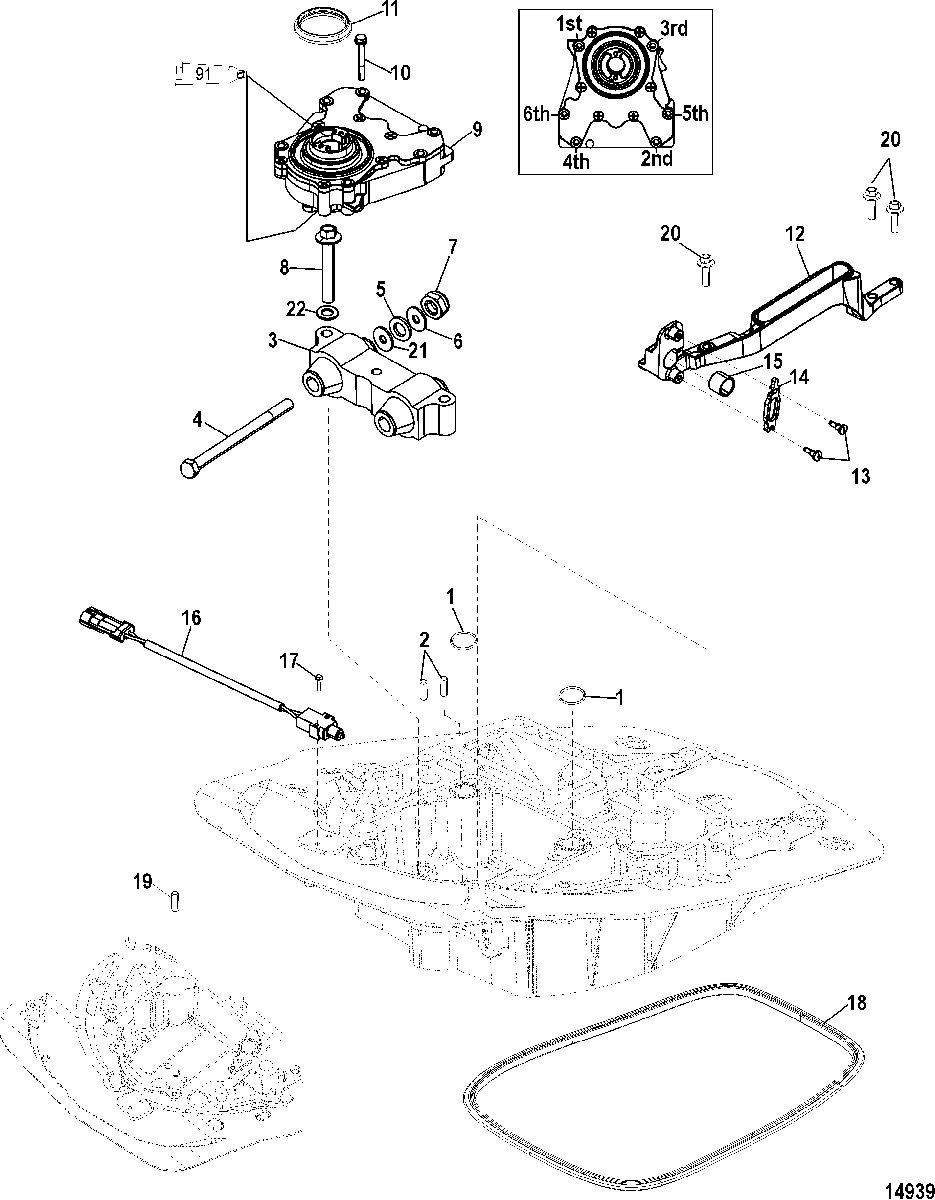

Oil Pump для Mariner - 75 EFI (4-STROKE) 1B366823 THRU 2B094995

  • №
    Артикул
    Название
  • 1
    25-62705001 O-RING
    O-RING
  • 2
    17-858580001 PIN, Dowel
    PIN, Dowel
  • 3
    881900T03 MOUNT
    SN# 1B467200 & Below
    MOUNT
    SN# 1B467200 & Below
  • 3
    881900T03 MOUNT
    SN# 1B467201 THRU 1B485180
    MOUNT
    SN# 1B467201 THRU 1B485180
  • 3
    881900T03 MOUNT
    SN# 1B485181 & Up
    MOUNT
    SN# 1B485181 & Up
  • 4
    10-898487 SCREW, (M12 x 175)
    SCREW, (M12 x 175)
  • 5
    12-32834 WASHER, (.9375 x 1.750 x .172)
    WASHER, (.9375 x 1.750 x .172)
  • 6
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 7
    11-896963 NUT, (M12)
    NUT, (M12)
  • 8
    10-8M0036722 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 9
    8M0091787 PUMP ASSEMBLY, Oil
    SN# 1B484634 & Below
    PUMP ASSEMBLY, Oil
    SN# 1B484634 & Below
  • 9
    8M0091787 PUMP ASSEMBLY, Oil
    SN# 1B484635 & Up
    PUMP ASSEMBLY, Oil
    SN# 1B484635 & Up
  • 10
    10-82483211 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 11
    26-8M0036343 SEAL, Oil
    SEAL, Oil
  • 12
    897961T01 BRACKET ASSEMBLY, Shift Link
    BRACKET ASSEMBLY, Shift Link
  • 13
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 14
    98889 LATCH
    LATCH
  • 15
    824015 CUP, Barrel Retainer, Small
    CUP, Barrel Retainer, Small
  • 16
    87-8M0052939 SWITCH
    SWITCH
  • 17
    10-88075020 SCREW, (M3 x 20)
    SCREW, (M3 x 20)
  • 18
    8M0043168 SEAL
    SEAL
  • 19
    17-23784 PIN, Dowel
    PIN, Dowel
  • 20
    10-82130020 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 21
    12-8M0001538 WASHER, (.940 x 1.50 x 0.65) Stainless Steel
    WASHER, (.940 x 1.50 x 0.65) Stainless Steel
  • 22
    12-4002317 WASHER
    WASHER
  • -
    27-897534A07 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100
    LONG BLOCK ASSEMBLY, 75/80/90/100
  • -
    8M8033013 LONG BLOCK ASSEMBLY, 115
    LONG BLOCK ASSEMBLY, 115
