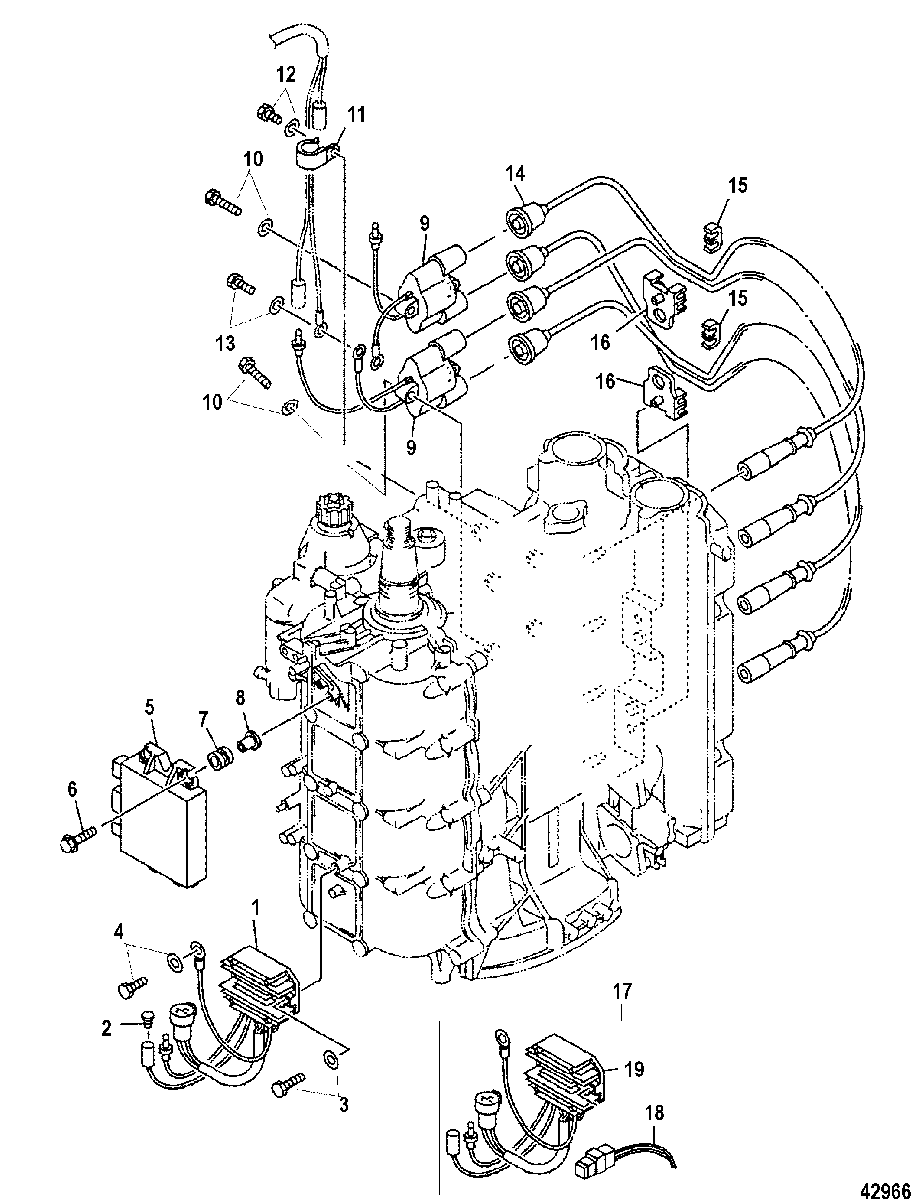

Ignition Components для Mariner - 75 (4-STROKE)(BODENSEE) 0G960500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    804278A12 RECTIFIER/REGULATOR
    (Design I) SN# 0T409000 & Up
    RECTIFIER/REGULATOR
    (Design I) SN# 0T409000 & Up
  • 1
    804278A12 RECTIFIER/REGULATOR
    (Design I) SN# 0T408999 & Below
    RECTIFIER/REGULATOR
    (Design I) SN# 0T408999 & Below
  • 2
    804279 COVER
    COVER
  • 3
    10-853536 BOLT, (M6 x 25)
    BOLT, (M6 x 25)
  • 4
    10-804604 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 5
    804269T2 CDI UNIT
    SN# 0T598999 & Below
    CDI UNIT
    SN# 0T598999 & Below
  • 5
    804269T2 CDI UNIT
    SN# 0T599000 & Up
    CDI UNIT
    SN# 0T599000 & Up
  • 6
    10-804270 BOLT, (M6 x 28)
    BOLT, (M6 x 28)
  • 7
    25-881304 GROMMET
    GROMMET
  • 8
    23-804344003 BUSHING
    BUSHING
  • 9
    339-804271T COIL, Ignition
    COIL, Ignition
  • 10
    10-804603 BOLT, (M6 x 30)
    BOLT, (M6 x 30)
  • 11
    54-83577M CLAMP
    CLAMP
  • 12
    10-804602 BOLT, (M6 x 12)
    BOLT, (M6 x 12)
  • 13
    10-804604 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 14
    84-804272A1 CABLE SET, Hi Tension
    CABLE SET, Hi Tension
  • 15
    54-804276 CLAMP
    CLAMP
  • 16
    54-804277 CLAMP
    CLAMP
  • 17
    804278A12 RECTIFIER/REGULATOR
    (Design II)
    RECTIFIER/REGULATOR
    (Design II)
  • 18
    84-8042903 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 19
    804278T12 REGULATOR, Voltage
    REGULATOR, Voltage
  • NS
    NSS NOT SOLD SEPARATE, CLAMP
    NOT SOLD SEPARATE, CLAMP
