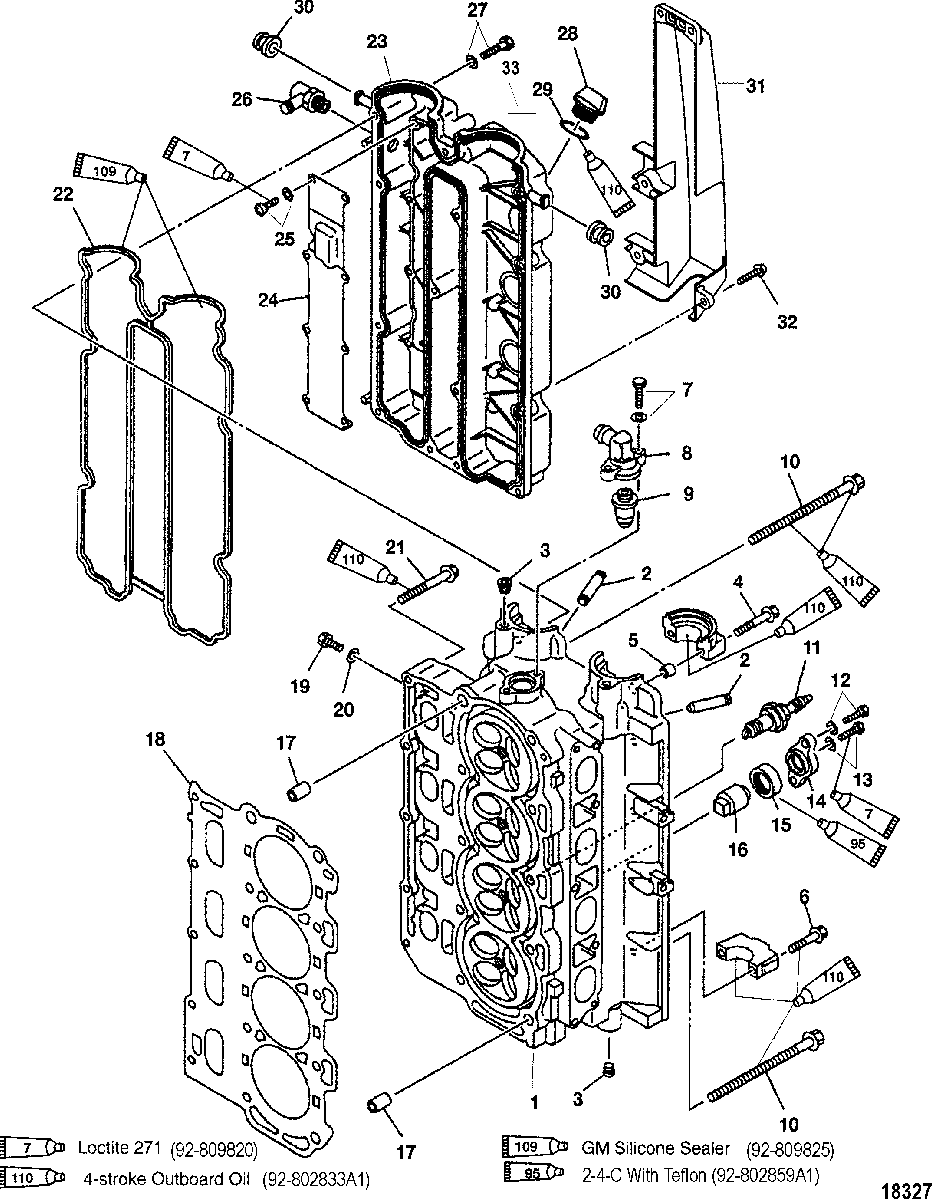

Cylinder Head для Mariner - 75 (4-STROKE)(BODENSEE) 0G960500 THRU 0T800999

  • №
    Артикул
    Название
  • 1
    8M0057170 CYLINDER HEAD
    (Use PN 804127-1 Thermostat Cover and PN 855676-1 Thermostat to service this Cylinder Head)
    CYLINDER HEAD
    (Use PN 804127-1 Thermostat Cover and PN 855676-1 Thermostat to service this Cylinder Head)
  • 2
    17-804110 PIN, Guide
    PIN, Guide
  • 3
    19-804111 PLUG
    PLUG
  • 4
    10-804112 BOLT, (M7 x 48)
    BOLT, (M7 x 48)
  • 5
    17-804113 PIN, Dowel
    PIN, Dowel
  • 6
    10-804114 BOLT, (M7 x 37)
    BOLT, (M7 x 37)
  • 7
    10-8248326 BOLT, (M6 x 25)
    BOLT, (M6 x 25)
  • 8
    804127 THERMOSTAT COVER
    (Use with 804109T2 Cylinder Head Only) SN# 0T178499 & Below
    THERMOSTAT COVER
    (Use with 804109T2 Cylinder Head Only) SN# 0T178499 & Below
  • 8
    8041271 THERMOSTAT COVER
    (Use with 804109T4 Cylinder Head) SN# 0T178500 & Up
    THERMOSTAT COVER
    (Use with 804109T4 Cylinder Head) SN# 0T178500 & Up
  • 9
    825212A1 THERMOSTAT, (60C/140F)
    (Use with 804109T2 Cylinder Head Only) SN# 0T178499 & Below
    THERMOSTAT, (60C/140F)
    (Use with 804109T2 Cylinder Head Only) SN# 0T178499 & Below
  • 9
    8556761 THERMOSTAT, 60A°C (140A°F)
    (Use with 804109T4 Cylinder Head) SN# 0T178500 & Up
    THERMOSTAT, 60A°C (140A°F)
    (Use with 804109T4 Cylinder Head) SN# 0T178500 & Up
  • 10
    10-881311 BOLT, (M10 x 145)
    BOLT, (M10 x 145)
  • 11
    33-859495Q SPARK PLUG, (NGK-LFR5A-11)
    SPARK PLUG, (NGK-LFR5A-11)
  • 12
    10-827207 BOLT, (M8 x 25)
    BOLT, (M8 x 25)
  • 13
    10-8524741 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 14
    97-804085A01 COVER
    COVER
  • 15
    25-804086 GROMMET
    GROMMET
  • 16
    NSS NOT SOLD SEPARATE, Anode
    Order Cover
    NOT SOLD SEPARATE, Anode
    Order Cover
  • 17
    23-8M0070515 COLLAR
    COLLAR
  • 18
    27-8041151 GASKET
    GASKET
  • 19
    10-83124714 BOLT
    BOLT
  • 20
    12-831246 WASHER, Sealing
    WASHER, Sealing
  • 21
    10-881312 BOLT, (M8 x 55)
    BOLT, (M8 x 55)
  • 22
    27-804123 GASKET
    GASKET
  • 23
    804118T2 COVER KIT
    SN# 0T408999 & Below
    COVER KIT
    SN# 0T408999 & Below
  • 23
    881313T1 COVER KIT
    SN# 0T409000 & Up
    COVER KIT
    SN# 0T409000 & Up
  • 24
    804119 COVER, Breather
    COVER, Breather
  • 25
    10-804120 SCREW, (M4 x 8)
    SCREW, (M4 x 8)
  • 26
    22-804122 NIPPLE
    SN# 0T178499 & Below
    NIPPLE
    SN# 0T178499 & Below
  • 27
    10-858530 BOLT, (M6 x 30)
    BOLT, (M6 x 30)
  • 28
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 29
    NSS NOT SOLD SEPARATE, O-Ring
    NOT SOLD SEPARATE, O-Ring
  • 30
    25-855690 GROMMET
    GROMMET
  • 31
    858752001 COVER
    COVER
  • 32
    10-1993716 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 33
    NSS NOT SOLD SEPARATE, Decal-Bodensee
    NOT SOLD SEPARATE, Decal-Bodensee
  • -
    804109T08 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • -
    27-804345A02 GASKET SET, Powerhead
    GASKET SET, Powerhead
