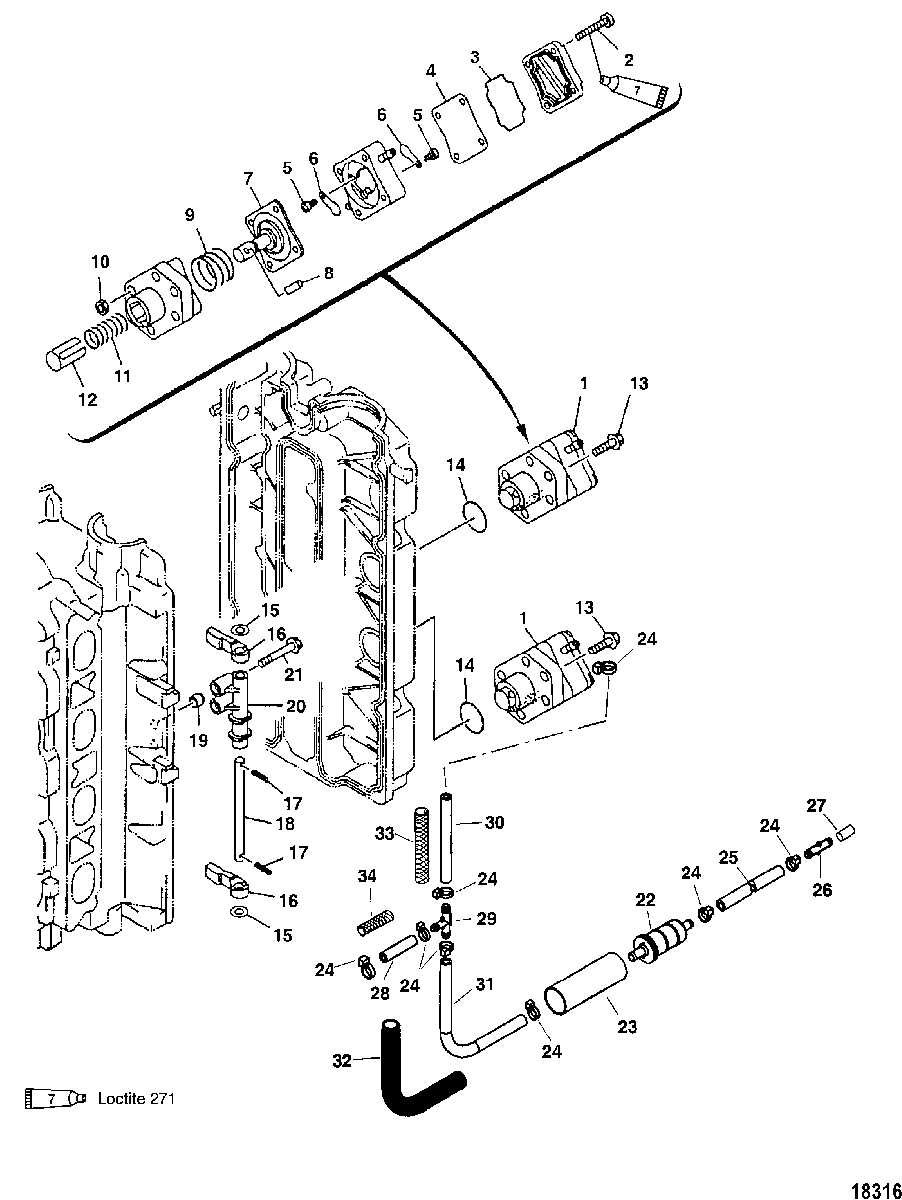

Fuel Pump(Serial Number 0T408999 & Below) для Mariner - 75 (4-STROKE)(BODENSEE) 0G960500 THRU 0T800999
-
№АртикулНазвание
-
1804249T1 PUMP, FuelPUMP, Fuel
-
210-809564 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
3809565 COVERCOVER
-
48095611 DIAPHRAGMDIAPHRAGM
-
510-804253 SCREWSCREW
-
621-41888M CHECK VALVECHECK VALVE
-
7804250 DIAPHRAGMDIAPHRAGM
-
817-804254 PINPIN
-
924-809562 SPRINGSPRING
-
1011-82388M NUT, (M5)NUT, (M5)
-
1124-804252 SPRINGSPRING
-
12804251 PLUNGERPLUNGER
-
1310-804256 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
1425-8M0050719 O-RINGO-RING
-
1512-84292M WASHERWASHER
-
16804257 LEVER, Fuel ChangeLEVER, Fuel Change
-
1717-82738M PINPIN
-
18804258 SHAFTSHAFT
-
1917-804113 PIN, DowelPIN, Dowel
-
20804260 BRACKETBRACKET
-
2110-804112 BOLT, (M7 x 48)BOLT, (M7 x 48)
-
2235-877565T1 FILTER, FuelFILTER, Fuel
-
238775381 PROTECTIVE SLEEVEPROTECTIVE SLEEVE
-
2454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2532-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 36 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 36 Inches)
-
2622-822769 CONNECTORCONNECTOR
-
27NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
2832-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 2 Inches)HOSE, (57.00 Inches Bulk) (Cut to 2 Inches)
-
2922-818993 CONNECTOR, TeeCONNECTOR, Tee
-
3032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 4.75 Inches)HOSE, (57.00 Inches Bulk) (Cut to 4.75 Inches)
-
3132-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 13.5 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 13.5 Inches)
-
3232-828547633 CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches)CONDUIT, (.620 Inside Diameter x 3.00 Feet Bulk) (Cut to 13 Inches)
-
3332-828547T CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 3.75 Inches)CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 3.75 Inches)
-
3432-828547T CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 1.25 Inches)CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk) (Cut to 1.25 Inches)
-
-27-804345A02 GASKET SET, PowerheadGASKET SET, Powerhead
