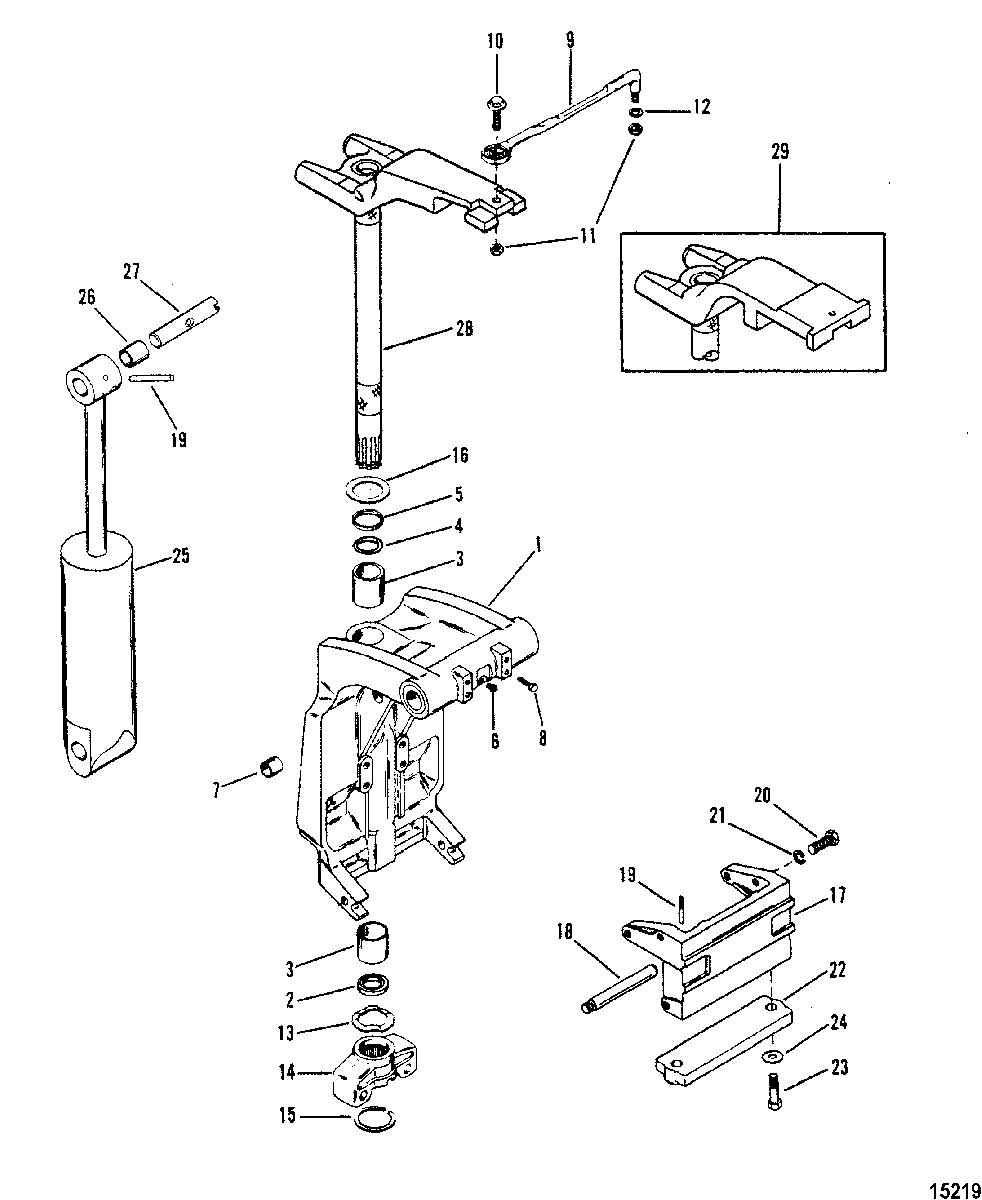

Swivel Bracket And Steering Arm(Casting Number 1499-8709C5) для Mariner - 75 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BERACKET ASSEMBLY, BlackSWIVEL BERACKET ASSEMBLY, Black
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, GraySWIVEL BRACKET ASSEMBLY, Gray
-
226-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
323-818764 BUSHINGBUSHING
-
425-33466 O-RINGO-RING
-
523-67668 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
992876A12 STEERING LINK ASSEMBLYSTEERING LINK ASSEMBLY
-
1010-849838 SCREW, (.375-24 x 1.25), Non HandleSCREW, (.375-24 x 1.25), Non Handle
-
1111-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1212-34931 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1313-78854 WAVE WASHERWAVE WASHER
-
1442961A06 BOTTOM YOKE, BlackBOTTOM YOKE, Black
-
1442961A06 BOTTOM YOKE MARINER, GrayBOTTOM YOKE MARINER, Gray
-
1553-67684 RETAINING RINGRETAINING RING
-
1612-67670 WASHERWASHER
-
1799653 BRACKET, Not Used With Power TrimBRACKET, Not Used With Power Trim
-
1899619 SHAFT, Lower, Not Used With Power TrimSHAFT, Lower, Not Used With Power Trim
-
1917-821539 PIN, Trilobe, Not Used With Power TrimPIN, Trilobe, Not Used With Power Trim
-
2010-4000377 SCREW, (M10 x 30), Not Used With Power TrimSCREW, (M10 x 30), Not Used With Power Trim
-
2113-400258 LOCKWASHER, Not Used With Power TrimLOCKWASHER, Not Used With Power Trim
-
2297-818298Q1 ANODE ASSEMBLY, Not Used With Power TrimANODE ASSEMBLY, Not Used With Power Trim
-
2310-4000332 SCREW, (M6 x 35), Not Used With Power TrimSCREW, (M6 x 35), Not Used With Power Trim
-
2412-29245 WASHER, (.281 x .500 x .060), Not Used With Power TrimWASHER, (.281 x .500 x .060), Not Used With Power Trim
-
2555-99724T15 SHOCK ABSORBER, Not Used With Power Trim
(Black)SHOCK ABSORBER, Not Used With Power Trim
(Black) -
2555-99724T15 SHOCK ABSORBER, Not Used With Power Trim
(Gray)SHOCK ABSORBER, Not Used With Power Trim
(Gray) -
2623-821207 BUSHING, Not Used With Power TrimBUSHING, Not Used With Power Trim
-
2799625002 SHAFT, UpperSHAFT, Upper
-
2899661A35 SWIVEL PIN/STEERING ARM, BlackSWIVEL PIN/STEERING ARM, Black
-
2899661A35 SWIVEL PIN/STEERING ARM, GraySWIVEL PIN/STEERING ARM, Gray
-
2912079A8 SWIVEL PIN/STEERING ARM
(Handle Models, Black)SWIVEL PIN/STEERING ARM
(Handle Models, Black) -
2912079A9 SWIVEL PIN/STEERING ARM
(Handle Models, Gray)SWIVEL PIN/STEERING ARM
(Handle Models, Gray)
