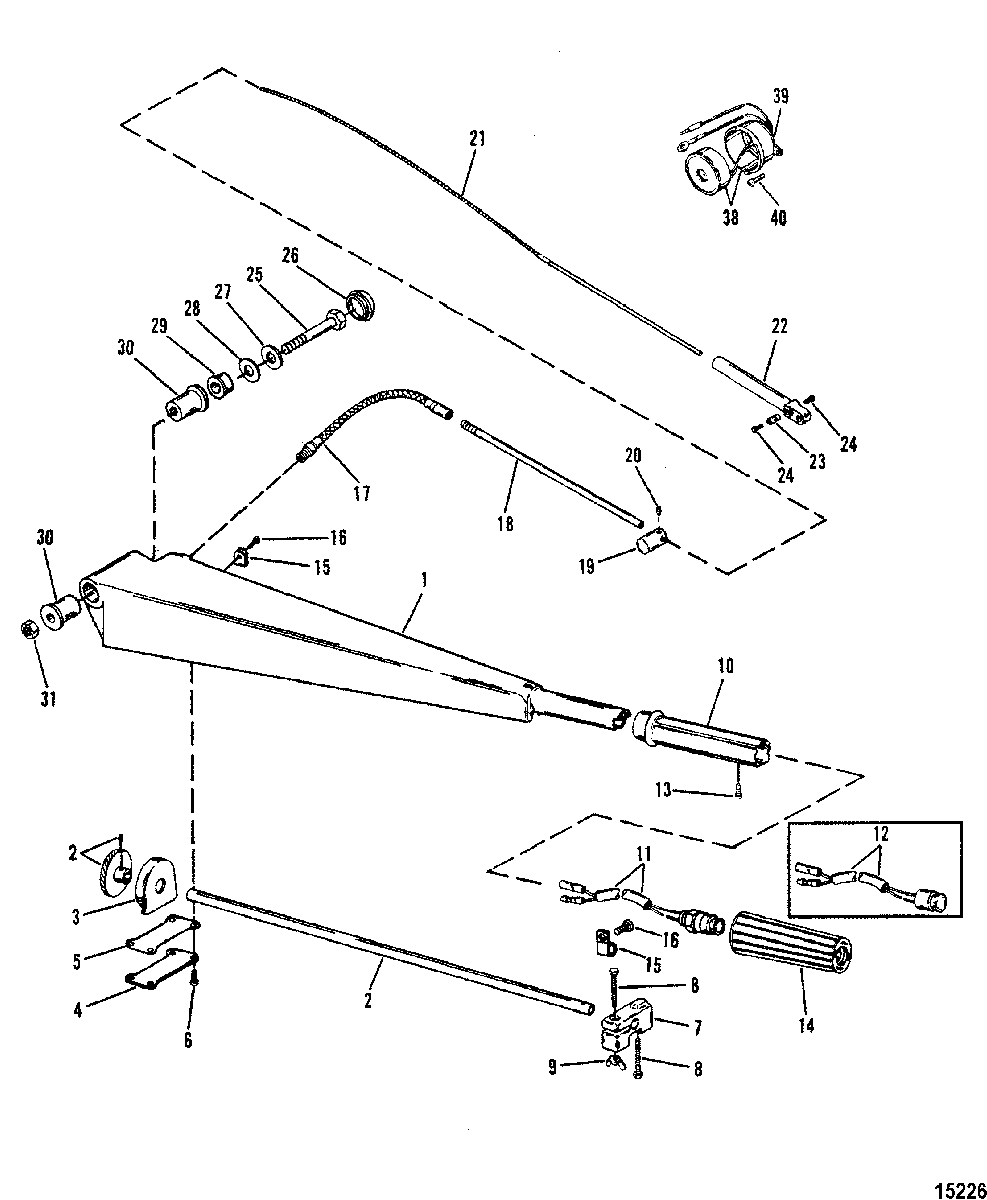

Steering Handle Components(With Steering Arm) для Mariner - 75 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
112020A3 HANDLE ASSEMBLY, Steering Arm, BlackHANDLE ASSEMBLY, Steering Arm, Black
-
112020A3 STEERING ARM, GraySTEERING ARM, Gray
-
-22-74036 FITTING, GreaseFITTING, Grease
-
212018A4 TUBE ASSEMBLYTUBE ASSEMBLY
-
348414 HOUSINGHOUSING
-
448519 PLATEPLATE
-
527-48518 GASKETGASKET
-
610-72169 SCREW, (10-24 X .50)SCREW, (10-24 X .50)
-
610-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
754-889729 CLAMPCLAMP
-
810-40007112 NUT, (M5 x 40)NUT, (M5 x 40)
-
911-816874 WING NUTWING NUT
-
1087-823609A15 STOP SWITCH KIT, Throttle HandleSTOP SWITCH KIT, Throttle Handle
-
1187-8M0104612 STOP SWITCH, Design II, With Metal Lock TingSTOP SWITCH, Design II, With Metal Lock Ting
-
12NLA No Longer Available, Stop Switch, Design I, Odres Kit 87-823609A15No Longer Available, Stop Switch, Design I, Odres Kit 87-823609A15
-
1310-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1499589003 GRIPGRIP
-
1554-648552 CLAMPCLAMP
-
1610-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
178885242 CONDUITCONDUIT
-
188M0026078 GUIDE TUBEGUIDE TUBE
-
1989578 BARRELBARREL
-
2010-824081 SET SCREW, (#10-32)SET SCREW, (#10-32)
-
2112019 CABLECABLE
-
2243433 GUIDEGUIDE
-
2320007 ANCHORANCHOR
-
2410-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
2510-823567105 SCREW, (M10 x 105)SCREW, (M10 x 105)
-
2648416T CAPCAP
-
2712-4002319 WASHERWASHER
-
2812-12024 WASHERWASHER
-
2923-146011 SPACERSPACER
-
3023-812930A1 BUSHINGBUSHING
-
3111-40140 NUT, (M10)NUT, (M10)
-
3868878A6 ALARM HORN AND WIRE ASSEMBLYALARM HORN AND WIRE ASSEMBLY
-
3968879 COVERCOVER
-
4010-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
