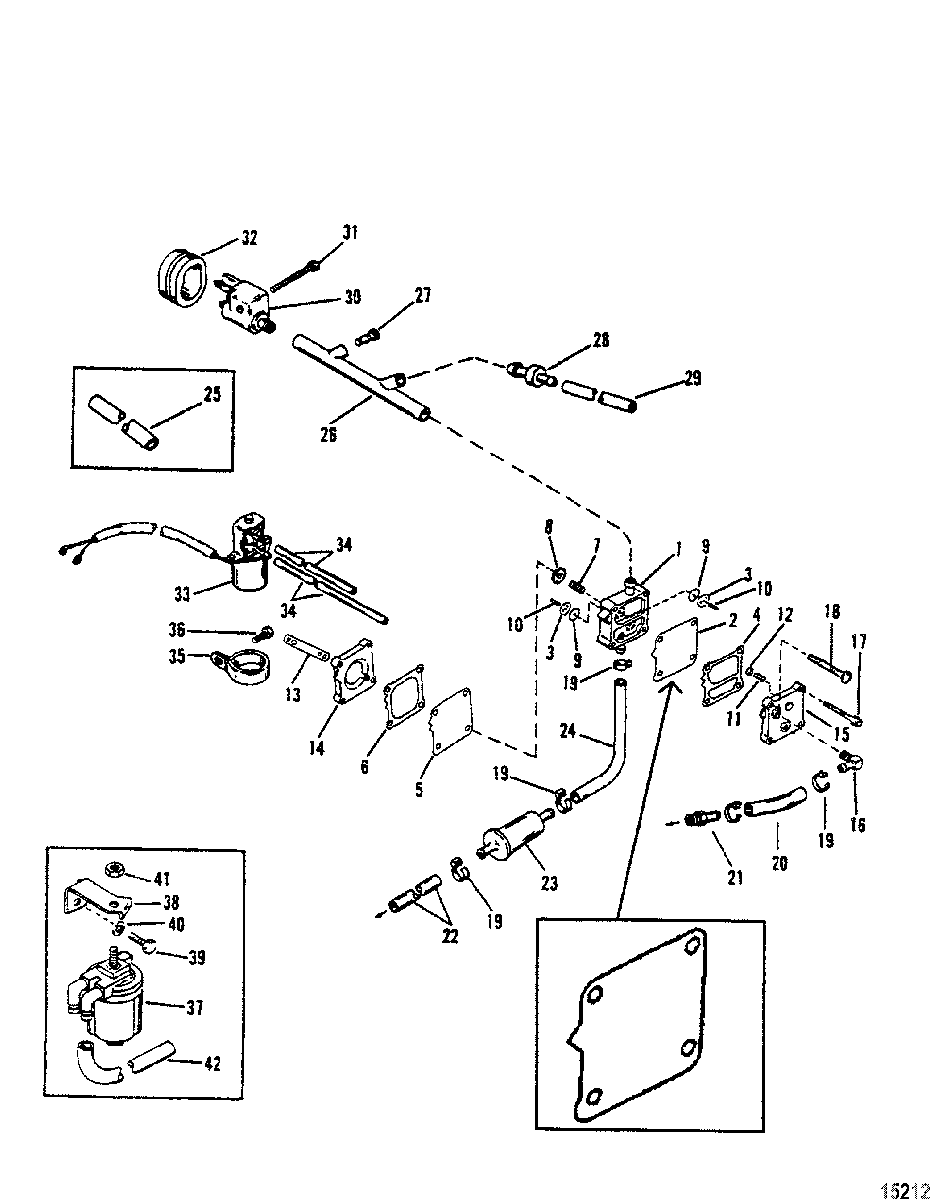

Fuel Pump(Use With Inline Check Valve) для Mariner - 75 (3 CYL.) 0C222000 THRU 0D283221

  • №
    Артикул
    Название
  • 1
    14360A78 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-857005A1 DIAPHRAGM KIT
    (See Note)
    DIAPHRAGM KIT
    (See Note)
  • 3
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 4
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 5
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 6
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Check Valve
    NOT SOLD SEPARATE, Check Valve
  • 10
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 11
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 12
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 13
    27-987691 GASKET
    GASKET
  • 14
    144303 BASE
    BASE
  • 15
    987752 PLATE
    PLATE
  • 16
    22-996642 ELBOW
    ELBOW
  • 17
    10-82104540 SCREW, Fuel Pump
    SCREW, Fuel Pump
  • 18
    10-81754150 SCREW, Pump To Block
    SCREW, Pump To Block
  • 19
    54-816311T CABLE TIE, (8.00 Inch)
    CABLE TIE, (8.00 Inch)
  • 20
    32-8M0108349 TUBING
    TUBING
  • 21
    22-291112 CONNECTOR
    (To Crankcase)
    CONNECTOR
    (To Crankcase)
  • 22
    32-8M0108349 TUBING
    (To Carburetor)
    TUBING
    (To Carburetor)
  • 23
    35-816296Q2 FUEL FILTER, Design I
    FUEL FILTER, Design I
  • 24
    32-19017A1 FUEL LINE, Design I
    FUEL LINE, Design I
  • 25
    32-8M0108349 TUBING, 6.50 Inch Commercial Engines
    TUBING, 6.50 Inch Commercial Engines
  • 26
    32-822554 MOLDED HOSE, Non Commercial Engines
    MOLDED HOSE, Non Commercial Engines
  • 27
    19-822772 PLUG, Non Commercial Engines
    PLUG, Non Commercial Engines
  • 28
    22-8189941 CHECK VALVE, Non Commercial Engines
    CHECK VALVE, Non Commercial Engines
  • 29
    32-82381335 TUBING, (8.00 Inch), 5.50 Inch Non Commercial Engines
    (To Oil Pump)
    TUBING, (8.00 Inch), 5.50 Inch Non Commercial Engines
    (To Oil Pump)
  • 30
    22-816856Q3 FUEL CONNECTOR, Plastic
    FUEL CONNECTOR, Plastic
  • 31
    10-4010635 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 32
    25-145091 GROMMET
    GROMMET
  • 33
    89-819503A2 ENRICHNER VALVE
    ENRICHNER VALVE
  • 34
    32-1430165 TUBING, (38.00 Inch)
    TUBING, (38.00 Inch)
  • 35
    54-18887 CLAMP
    CLAMP
  • 36
    10-40011151 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 37
    35-8M0063726 FUEL FILTER
    FUEL FILTER
  • 38
    821698 BRACKET, Design II
    BRACKET, Design II
  • 39
    10-4000327 SCREW, (M6 x 14), Design II
    SCREW, (M6 x 14), Design II
  • 40
    12-4002315 WASHER, Design II
    WASHER, Design II
  • 41
    11-401386 NUT, (M6), Design II
    NUT, (M6), Design II
  • 42
    32-8M0108349 TUBING, Design II
    TUBING, Design II
  • -
    27-43004A99 GASKET SET
    GASKET SET
  • -
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • -
    13589T93 POWERHEAD ASSEMBLY COMPLETE, 75
    POWERHEAD ASSEMBLY COMPLETE, 75
  • -
    13600T93 POWERHEAD ASSEMBLY COMPLETE, 75 Commercial
    POWERHEAD ASSEMBLY COMPLETE, 75 Commercial
  • -
    15081T96 POWERHEAD ASSEMBLY COMPLETE, 90
    POWERHEAD ASSEMBLY COMPLETE, 90
