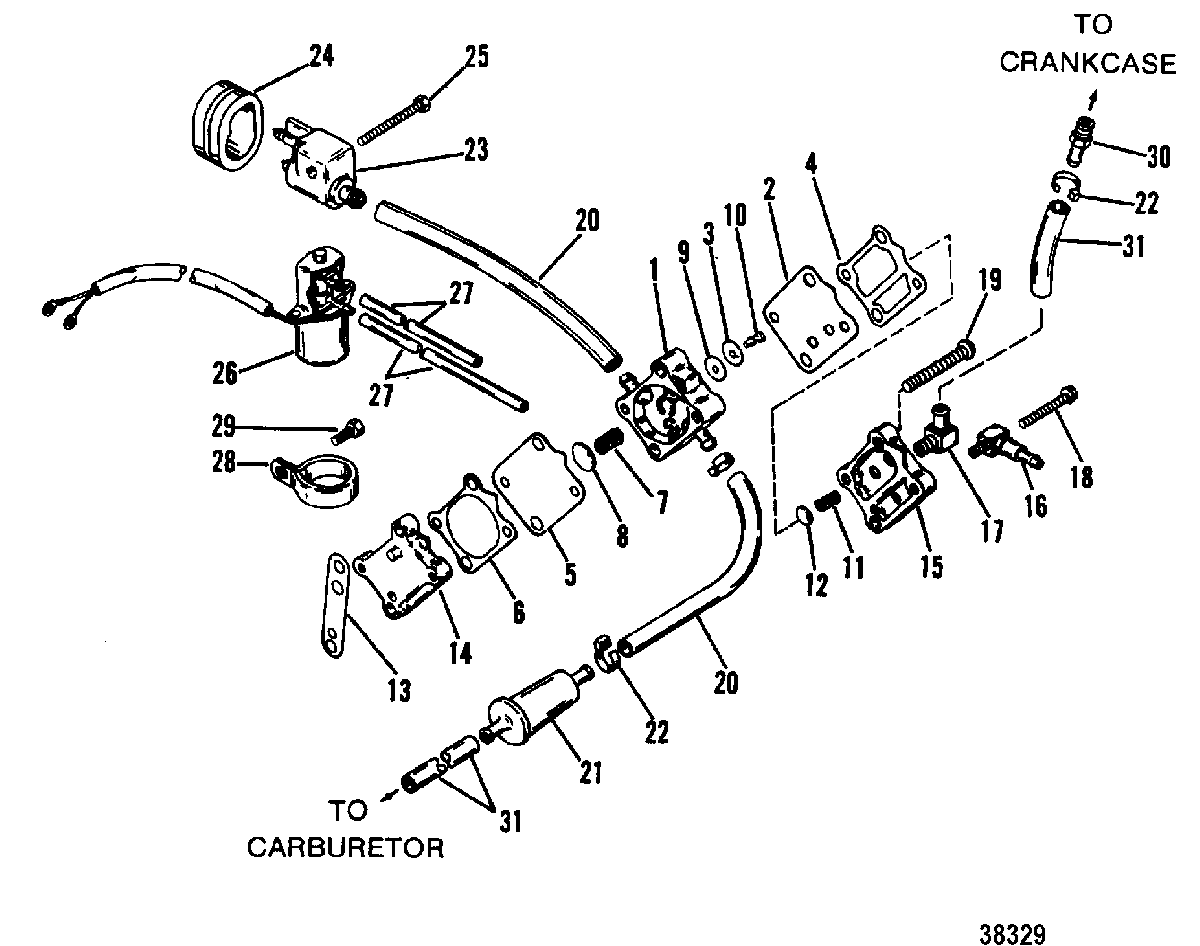

FUEL PUMP для Mariner - 75 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    14360A78 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 2
    42909A4 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, CHECK VALVE-RUBBER
    NOT SOLD SEPARATE, CHECK VALVE-RUBBER
  • 4
    NSS NOT SOLD SEPARATE, GASKET-BOOST
    NOT SOLD SEPARATE, GASKET-BOOST
  • 5
    NSS NOT SOLD SEPARATE, DIAPHRAGM
    NOT SOLD SEPARATE, DIAPHRAGM
  • 6
    NSS NOT SOLD SEPARATE, GASKET-PULSE
    NOT SOLD SEPARATE, GASKET-PULSE
  • 7
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 8
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 9
    NSS NOT SOLD SEPARATE, CHECK VALVE
    NOT SOLD SEPARATE, CHECK VALVE
  • 10
    NSS NOT SOLD SEPARATE, RETAINER
    NOT SOLD SEPARATE, RETAINER
  • 11
    NSS NOT SOLD SEPARATE, SPRING
    NOT SOLD SEPARATE, SPRING
  • 12
    NSS NOT SOLD SEPARATE, CAP
    NOT SOLD SEPARATE, CAP
  • 13
    27-987691 GASKET, BASE
    GASKET, BASE
  • 14
    98768 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 15
    98775A1 PLATE, FUEL PUMP
    PLATE, FUEL PUMP
  • 16
    21-424811 CHECK VALVE
    CHECK VALVE
  • 17
    22-19688 FITTING
    FITTING
  • 18
    10-82104540 SCREW, FUEL PUMP
    SCREW, FUEL PUMP
  • 19
    10-40057134 SCREW, (M6 x 50), FUEL PUMP TO CRANKCASE
    SCREW, (M6 x 50), FUEL PUMP TO CRANKCASE
  • 20
    32-8M0108349 TUBING
    TUBING
  • 21
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 22
    54-816311T CLAMP, FUEL TUBING
    CLAMP, FUEL TUBING
  • 23
    22-816856Q3 CONNECTOR, Fuel
    CONNECTOR, Fuel
  • 24
    25-145092 GROMMET, FUEL CONNECTOR
    GROMMET, FUEL CONNECTOR
  • 25
    10-4000183 SCREW, (M6 x 35), FUEL CONNECTOR
    SCREW, (M6 x 35), FUEL CONNECTOR
  • 26
    89-819503A2 VALVE, Enrichner
    VALVE, Enrichner
  • 27
    32-1430165 TUBING, (38.00 Inches Bulk), ENRICHNER VALVE
    TUBING, (38.00 Inches Bulk), ENRICHNER VALVE
  • 28
    54-15279 CLAMP, ENRICHNER VALVE
    CLAMP, ENRICHNER VALVE
  • 29
    10-4000171 SCREW, (M6 x 16), CLAMP
    SCREW, (M6 x 16), CLAMP
  • 30
    22-64705 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 31
    32-8M0108355 LINE, (57.00 Inches Bulk)
    LINE, (57.00 Inches Bulk)
  • -
    42909A4 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • -
    27-43004A99 GASKET SET
    GASKET SET
