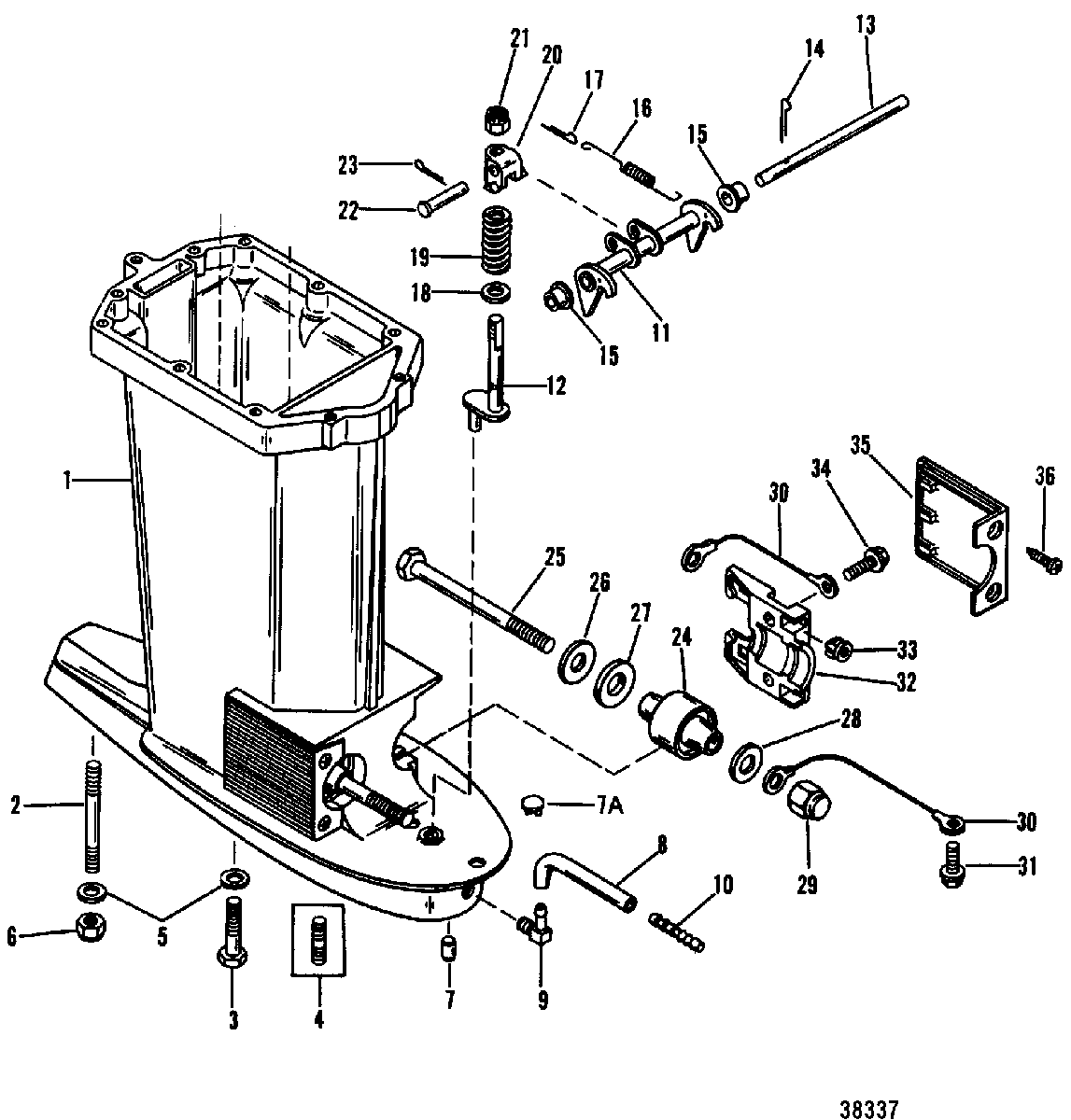

DRIVESHAFT HOUSING для Mariner - 75 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    898289A49 HOUSING ASSEMBLY, Driveshaft
    (MERCURY)
    HOUSING ASSEMBLY, Driveshaft
    (MERCURY)
  • 1
    898289A49 HOUSING ASSEMBLY, Driveshaft
    (MARINER)
    HOUSING ASSEMBLY, Driveshaft
    (MARINER)
  • 2
    16-903501 STUD, (M10 x 100), DRIVE SHAFT HOUSING
    (LONG)
    STUD, (M10 x 100), DRIVE SHAFT HOUSING
    (LONG)
  • 2
    16-903502 STUD, (M10 x 227), DRIVE SHAFT HOUSING
    (X-LONG)
    STUD, (M10 x 227), DRIVE SHAFT HOUSING
    (X-LONG)
  • 3
    10-4000380 SCREW, (M10 x 45), GEAR HOUSING
    (LONG)
    SCREW, (M10 x 45), GEAR HOUSING
    (LONG)
  • 4
    16-903503 STUD, (M10 x 190), GEAR HOUSING
    (X-LONG)
    STUD, (M10 x 190), GEAR HOUSING
    (X-LONG)
  • 5
    12-45176 WASHER, GEAR HOUSING STUD/SCREW
    WASHER, GEAR HOUSING STUD/SCREW
  • 6
    11-40140 NUT, (M10), GEAR HOUSING STUD
    (X-LONG - QUAN. OF 5)
    NUT, (M10), GEAR HOUSING STUD
    (X-LONG - QUAN. OF 5)
  • 7
    429222 GUIDE, PUSH ROD (NON POWER TRIM)
    GUIDE, PUSH ROD (NON POWER TRIM)
  • 7A
    429221 PLUG (POWER TRIM)
    PLUG (POWER TRIM)
  • 8
    22-85822A4 PICKUP ASSEMBLY, Speedometer
    PICKUP ASSEMBLY, Speedometer
  • 9
    22-433351 CONNECTOR, 90 Degree (.125-27) Nylon
    CONNECTOR, 90 Degree (.125-27) Nylon
  • 10
    22-85822T CONNECTOR, Straight
    CONNECTOR, Straight
  • 11
    14664A2 HOOK ASSEMBLY, Reverse, NON POWER TRIM
    HOOK ASSEMBLY, Reverse, NON POWER TRIM
  • 12
    16686 PUSH ROD, NON POWER TRIM
    PUSH ROD, NON POWER TRIM
  • 13
    99606 SHAFT, REVERSE LOCK - NON POWER TRIM
    SHAFT, REVERSE LOCK - NON POWER TRIM
  • 14
    18-45882 COTTER PIN, SHAFT - NON POWER TRIM
    COTTER PIN, SHAFT - NON POWER TRIM
  • 15
    23-69132 BUSHING, REVERSE LOCK SHAFT - NON POWER TRIM
    BUSHING, REVERSE LOCK SHAFT - NON POWER TRIM
  • 16
    24-996261 SPRING, REVERSE LOCK - NON POWER TRIM
    SPRING, REVERSE LOCK - NON POWER TRIM
  • 17
    18-47959 COTTER PIN, SPRING - NON POWER TRIM
    COTTER PIN, SPRING - NON POWER TRIM
  • 18
    12-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - NON POWER TRIM
    WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD - NON POWER TRIM
  • 19
    24-44297 SPRING, PUSH ROD NUT - NON POWER TRIM
    SPRING, PUSH ROD NUT - NON POWER TRIM
  • 20
    996361 YOKE, PUSH ROD - NON POWER TRIM
    YOKE, PUSH ROD - NON POWER TRIM
  • 21
    11-82670911 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD - NON POWER TRIM
    NUT, (.312-24) Stainless Steel, JAM - PUSH ROD - NON POWER TRIM
  • 22
    17-99663 PIN, Clevis, REVERSE LOCK - NON POWER TRIM
    PIN, Clevis, REVERSE LOCK - NON POWER TRIM
  • 23
    18-25191 COTTER PIN, CLEVIS PIN - NON POWER TRIM
    COTTER PIN, CLEVIS PIN - NON POWER TRIM
  • 24
    42930A1 MOUNT, LOWER
    (LONG)
    MOUNT, LOWER
    (LONG)
  • 24
    44343T1 MOUNT, LOWER
    (X-LONG)
    MOUNT, LOWER
    (X-LONG)
  • 25
    10-898835001 BOLT, (M12 x 154), LOWER MOUNT
    BOLT, (M12 x 154), LOWER MOUNT
  • 26
    12-28051 WASHER, LOWER MOUNT BOLT
    WASHER, LOWER MOUNT BOLT
  • 27
    12-28053 WASHER, LOWER MOUNT BOLT
    WASHER, LOWER MOUNT BOLT
  • 28
    12-30119 WASHER, (.875 Inch Outside Diameter), LOWER MOUNT BOLT
    WASHER, (.875 Inch Outside Diameter), LOWER MOUNT BOLT
  • 29
    11-43528 NUT, (M12), LOWER MOUNT BOLT
    NUT, (M12), LOWER MOUNT BOLT
  • 30
    88238A10 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 31
    10-41508 SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
    SCREW, (.250-20 x .500) Stainless Steel, GROUND WIRE
  • 32
    8M0036730 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 33
    11-35521 NUT, NYLON - COVER SCREW
    NUT, NYLON - COVER SCREW
  • 34
    10-40011149 SCREW, CLAMP
    SCREW, CLAMP
  • 35
    100-8M4500752 COVER, LOWER MOUNT
    (MERCURY)
    COVER, LOWER MOUNT
    (MERCURY)
  • 35
    100-8M4500752 COVER, LOWER MOUNT
    (MARINER)
    COVER, LOWER MOUNT
    (MARINER)
  • 36
    10-88417 SCREW, (#12-24 x .620), COVER
    SCREW, (#12-24 x .620), COVER
  • --
    12092A3 SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
    (MERCURY)
    SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
    (MERCURY)
  • --
    12092A4 SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
    (MARINER)
    SPACER KIT, DRIVE SHAFT HOUSING - X-LONG
    (MARINER)
