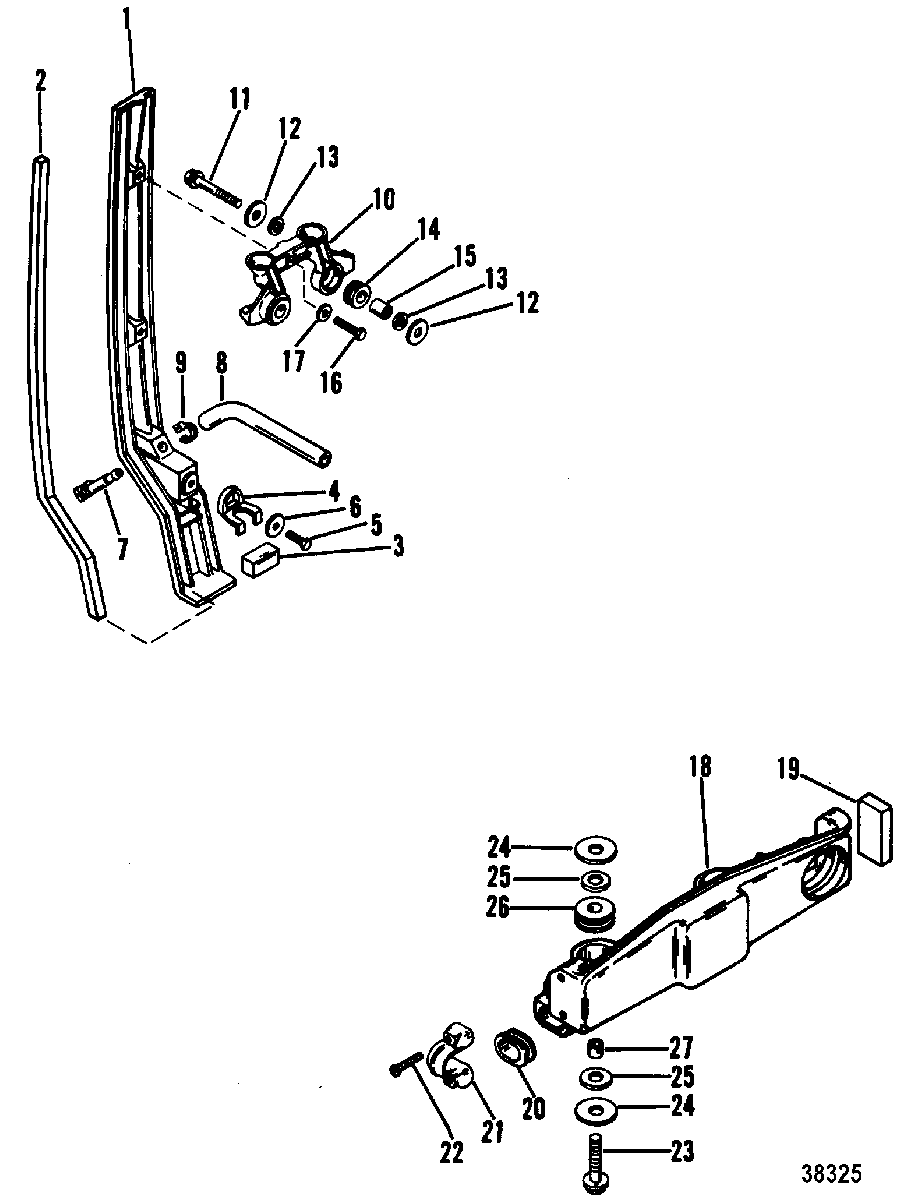

COWL MOUNTING BRACKETS для Mariner - 75 (3 CYL.) 0A996142 THRU 0B240450

  • №
    Артикул
    Название
  • 1
    42965A1 BRACKET ASSEMBLY, COWL SEAL
    (MERCURY)
    BRACKET ASSEMBLY, COWL SEAL
    (MERCURY)
  • 1
    42965A2 BRACKET ASSEMBLY, COWL SEAL
    (MARINER)
    BRACKET ASSEMBLY, COWL SEAL
    (MARINER)
  • 2
    183061 SEAL, BRACKET
    SEAL, BRACKET
  • 3
    42935 SEAL
    SEAL
  • 4
    42908 RESTRAINT
    RESTRAINT
  • 5
    10-400015 SCREW, (M5 x 10), RESTRAINT
    SCREW, (M5 x 10), RESTRAINT
  • 6
    12-42118 WASHER, RESTRAINT SCREW
    WASHER, RESTRAINT SCREW
  • 7
    42907 CONNECTOR, TELL TALE
    CONNECTOR, TELL TALE
  • 8
    32-8M0108349 TUBING, TELL TALE
    TUBING, TELL TALE
  • 9
    54-816311T CLAMP
    CLAMP
  • 10
    932642 HOUSING, HINGE
    HOUSING, HINGE
  • 11
    10-8M0103817 SCREW, HOUSING
    SCREW, HOUSING
  • 12
    12-814803 WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 13
    12-814806 WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 14
    25-88033 GROMMET, HOUSING SCREW
    GROMMET, HOUSING SCREW
  • 15
    23-14395 BUSHING, HOUSING SCREW
    BUSHING, HOUSING SCREW
  • 16
    10-4000120 SCREW, (M5 x 25), HOUSING TO BRACKET
    SCREW, (M5 x 25), HOUSING TO BRACKET
  • 17
    12-42118 WASHER, HOUSING SCREW
    WASHER, HOUSING SCREW
  • 18
    42952T BRACKET, SUPPORT (FRONT)
    (MERCURY)
    BRACKET, SUPPORT (FRONT)
    (MERCURY)
  • 18
    42952T6 BRACKET, SUPPORT (FRONT)
    (MARINER)
    BRACKET, SUPPORT (FRONT)
    (MARINER)
  • 19
    67260 SEAL, CONTROL CABLES
    SEAL, CONTROL CABLES
  • 20
    25-67272 GROMMET, BRACKET
    GROMMET, BRACKET
  • 21
    88621 RETAINER, CONTROL CABLES
    (NON POWER TRIM)
    RETAINER, CONTROL CABLES
    (NON POWER TRIM)
  • 21
    99447 RETAINER, CONTROL CABLES
    (POWER TRIM)
    RETAINER, CONTROL CABLES
    (POWER TRIM)
  • 22
    10-40011109 SCREW, (M5 x 25), RETAINER
    SCREW, (M5 x 25), RETAINER
  • 23
    10-82127335 SCREW, (M8 x 1.25 x 35) , BRACKET
    SCREW, (M8 x 1.25 x 35) , BRACKET
  • 24
    12-814803 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 25
    12-814806 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 26
    25-88033 GROMMET, BRACKET
    GROMMET, BRACKET
  • 27
    23-14395 BUSHING, BRACKET SCREW
    BUSHING, BRACKET SCREW
