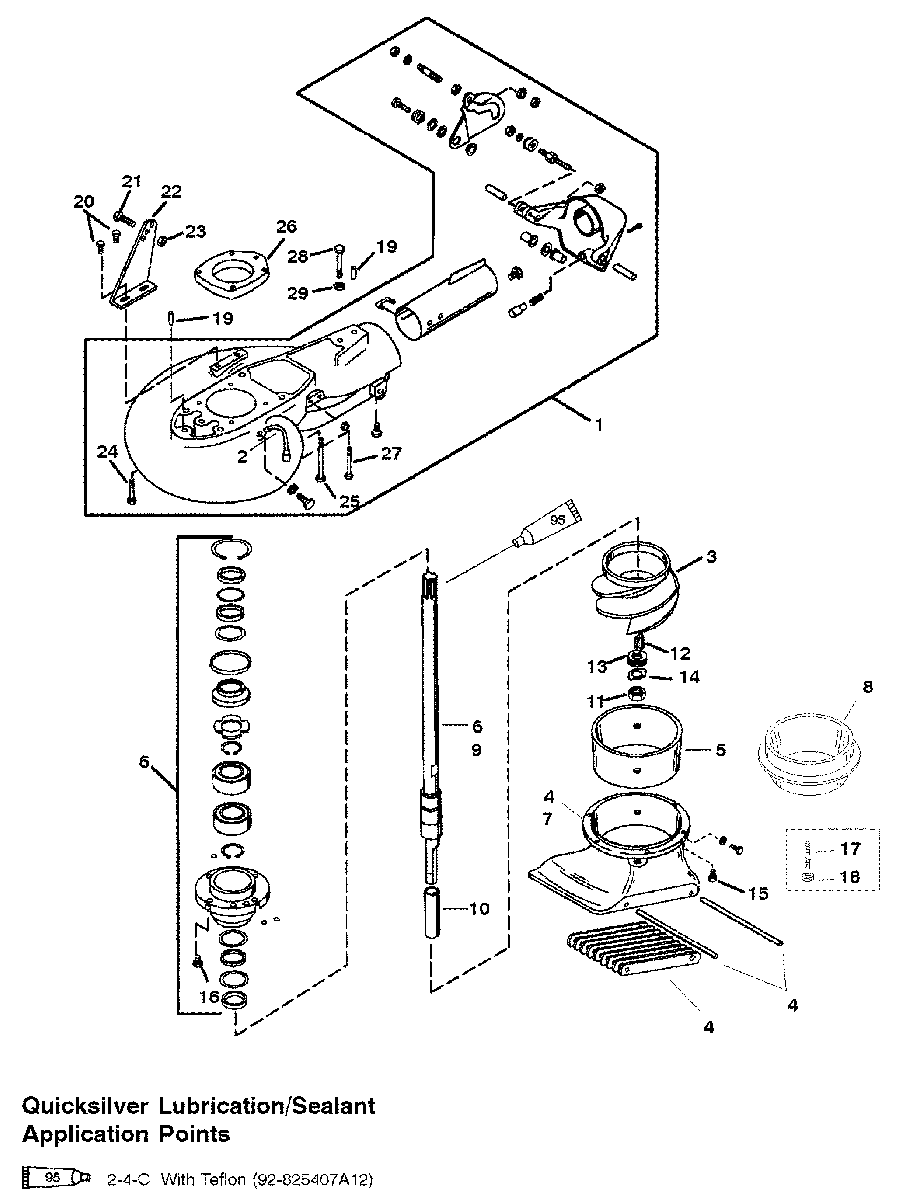

JET PUMP ASSEMBLY для Mariner - 65 JET 9793577 THRU 0P016999

  • №
    Артикул
    Название
  • -
    856143A1 JET PUMP ASSEMBLY
    (BLACK) S/N-0G582704 & BELOW
    JET PUMP ASSEMBLY
    (BLACK) S/N-0G582704 & BELOW
  • -
    856143A1 JET PUMP ASSEMBLY
    (GRAY) S/N-0G582704 & BELOW
    JET PUMP ASSEMBLY
    (GRAY) S/N-0G582704 & BELOW
  • -
    856143A1 JET PUMP ASSEMBLY
    (S/N-0G582705 & UP)
    JET PUMP ASSEMBLY
    (S/N-0G582705 & UP)
  • 1
    801411T90 HOUSING-PUMP
    (S/N-0G582704 & BELOW)
    HOUSING-PUMP
    (S/N-0G582704 & BELOW)
  • 1
    855767T90 HOUSING-PUMP
    (S/N-0G582705 & UP)
    HOUSING-PUMP
    (S/N-0G582705 & UP)
  • 2
    32-827490 HOSE-LUBE
    HOSE-LUBE
  • 3
    47-855708115 IMPELLER
    IMPELLER
  • 4
    80141290 HOUSING-INTAKE
    S/N-0G582704 & BELOW
    HOUSING-INTAKE
    S/N-0G582704 & BELOW
  • 5
    8271883 LINER
    S/N-0G582704 & BELOW
    LINER
    S/N-0G582704 & BELOW
  • 6
    45-80141390 DRIVESHAFT
    S/N-0G582704 & BELOW
    DRIVESHAFT
    S/N-0G582704 & BELOW
  • 7
    85576890 HOUSING-INTAKE
    S/N-0G582705 & UP
    HOUSING-INTAKE
    S/N-0G582705 & UP
  • 8
    855771 LINER
    S/N-0G582705 & UP
    LINER
    S/N-0G582705 & UP
  • 9
    45-85576990 DRIVESHAFT
    S/N-0G582705 & UP
    DRIVESHAFT
    S/N-0G582705 & UP
  • 10
    23-8271891 SLEEVE
    SLEEVE
  • 11
    11-8271901 NUT
    NUT
  • 12
    28-801405875 KEY
    KEY
  • 13
    15-801404875 SHIM-IMPELLER
    SHIM-IMPELLER
  • 14
    14-801403875 TAB WASHER
    TAB WASHER
  • 15
    10-848497 SCREW (.312-18 X 1)
    S/N-0G582704 & BELOW
    SCREW (.312-18 X 1)
    S/N-0G582704 & BELOW
  • 16
    10-19923088 SCREW (1/4-20 X .875)
    S/N-0G582704 & BELOW
    SCREW (1/4-20 X .875)
    S/N-0G582704 & BELOW
  • 16
    10-848497 SCREW (.312-18 x 1)
    S/N-0G582705 & UP
    SCREW (.312-18 x 1)
    S/N-0G582705 & UP
  • 17
    16-855840 STUD (.312 X 18 X 1.81)
    S/N-0G582705 & UP
    STUD (.312 X 18 X 1.81)
    S/N-0G582705 & UP
  • 18
    11-82670910 NUT
    S/N-0G582705 & UP
    NUT
    S/N-0G582705 & UP
  • 19
    17-801407 PIN-DOWEL
    PIN-DOWEL
  • 20
    10-19923062 SCREW (1/4-20 X .625)
    SCREW (1/4-20 X .625)
  • 21
    10-60411 SCREW (.312-18 X 1.25)
    SCREW (.312-18 X 1.25)
  • 22
    801410 BRACKET-CABLE SUPPORT
    BRACKET-CABLE SUPPORT
  • 23
    11-82670910 NUT (.312-18)
    NUT (.312-18)
  • 24
    10-4010860 SCREW (M10 X 60)
    SCREW (M10 X 60)
  • 25
    10-4010890 SCREW (M10 X 90)
    SCREW (M10 X 90)
  • 26
    808747 ADAPTOR-PUMP
    ADAPTOR-PUMP
  • 27
    10-4010870 SCREW (M10 X 70)
    SCREW (M10 X 70)
  • 28
    10-843575 SCREW (.38-16 X 4)
    SCREW (.38-16 X 4)
  • 29
    12-856774 WASHER
    WASHER
