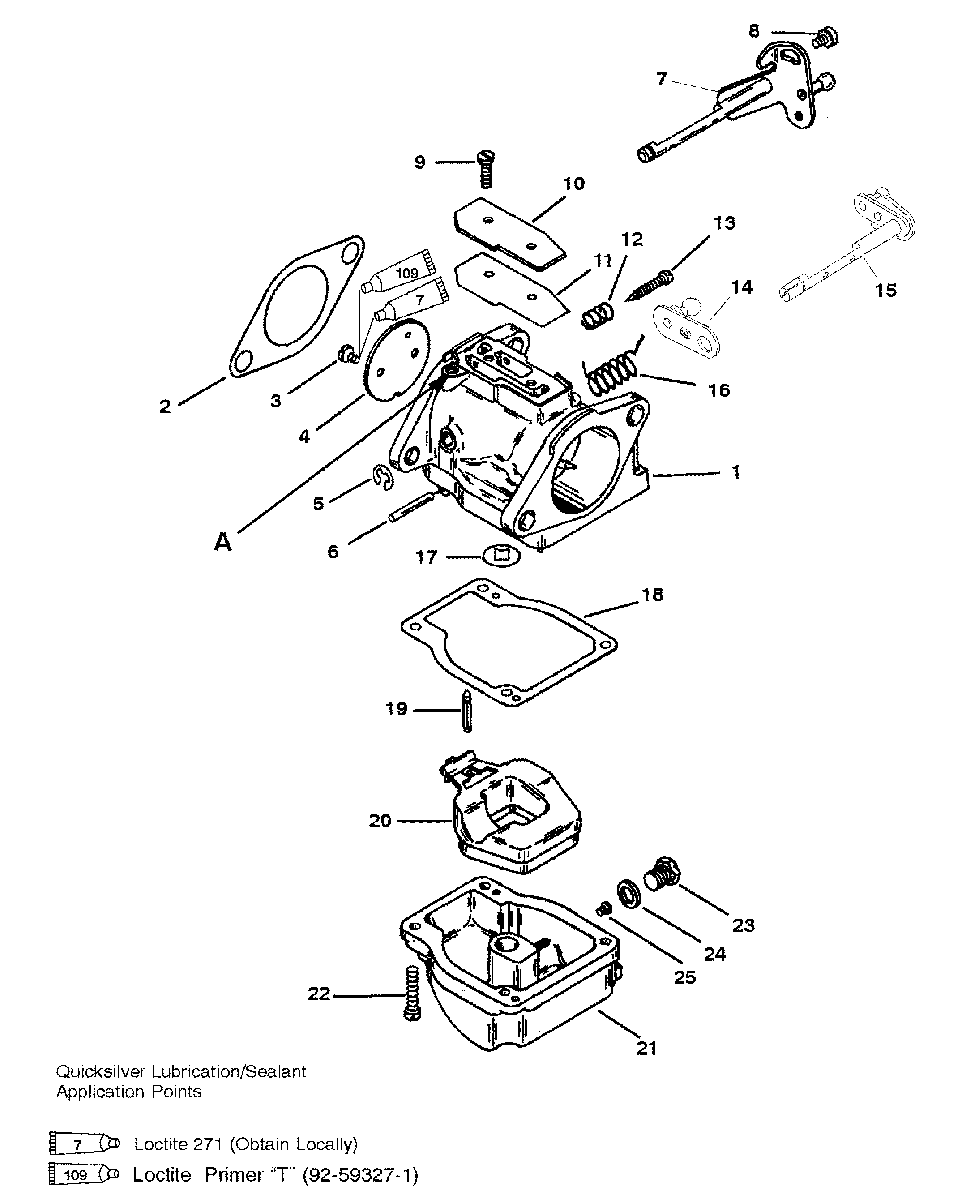

CARBURETOR (WME-59/60/61/62/75/76/77/78) для Mariner - 65 JET 9793577 THRU 0P016999
-
№АртикулНазвание
-
1190-8M0143356 GASKET-COVER PLATEGASKET-COVER PLATE
-
1290-8M0143356 SPRING-IDLE NEEDLESPRING-IDLE NEEDLE
-
1390-8M0143356 IDLE NEEDLEIDLE NEEDLE
-
141395-8087461 THROTTLE LEVER (TOP/BOTTOM)THROTTLE LEVER (TOP/BOTTOM)
-
151395-823632 THROTTLE SHAFT (TOP/BOTTOM)THROTTLE SHAFT (TOP/BOTTOM)
-
1690-8M0143356 SPRING-THROTTLE RETURNSPRING-THROTTLE RETURN
-
171395-808738 GASKET-NOZZLE WELLGASKET-NOZZLE WELL
-
1890-8M0143356 GASKET-FUEL BOWLGASKET-FUEL BOWL
-
1910-95951 INLET NEEDLE VALVEINLET NEEDLE VALVE
-
201395-9594 FLOATFLOAT
-
211395-811695 FUEL BOWL (UPPER)
(WME-60)FUEL BOWL (UPPER)
(WME-60) -
211395-811693 FUEL BOWL (CENTER/LOWER)
(WME-60)FUEL BOWL (CENTER/LOWER)
(WME-60) -
211395-811693 FUEL BOWL
(WME-59/61/62/75/76/77/78)FUEL BOWL
(WME-59/61/62/75/76/77/78) -
221395-808612 SCREW-FUEL BOWLSCREW-FUEL BOWL
-
231395-811694 PLUG KITPLUG KIT
-
241395-802731 SEAL (CONSISTS OF 4 SEALS)SEAL (CONSISTS OF 4 SEALS)
-
251395-6359 MAIN FUEL JET (.052)(TOP)
(WME-59)MAIN FUEL JET (.052)(TOP)
(WME-59) -
251399-5225 MAIN FUEL JET (.054)(CENTER/BOTTOM)
(WME-59)MAIN FUEL JET (.054)(CENTER/BOTTOM)
(WME-59) -
251399-5225 MAIN FUEL JET (.054)
(WME-60/61/76/77)MAIN FUEL JET (.054)
(WME-60/61/76/77) -
251399-4217 MAIN FUEL JET (.062)(TOP)
(WME-62)MAIN FUEL JET (.062)(TOP)
(WME-62) -
251399-4216 MAIN FUEL JET (.064)(CENTER/BOTTOM)
(WME-62)MAIN FUEL JET (.064)(CENTER/BOTTOM)
(WME-62) -
251395-7394 MAIN FUEL JET (.044)
(BELGIUM)MAIN FUEL JET (.044)
(BELGIUM) -
251395-6359 MAIN FUEL JET (.052)(TOP)
(WME-75)MAIN FUEL JET (.052)(TOP)
(WME-75) -
251399-5225 MAIN FUEL JET (.054)(CENTER/BOTTOM)
(WME-75)MAIN FUEL JET (.054)(CENTER/BOTTOM)
(WME-75) -
251399-4217 MAIN FUEL JET (.062)(TOP)
(WME-78)MAIN FUEL JET (.062)(TOP)
(WME-78) -
251399-4216 MAIN FUEL JET (.064)(CENTER/BOTTOM)
(WME-78)MAIN FUEL JET (.064)(CENTER/BOTTOM)
(WME-78) -
-1395-8112231 CARB GASKET KITCARB GASKET KIT
-
-1395-8236354 CARB REPAIR KITCARB REPAIR KIT
