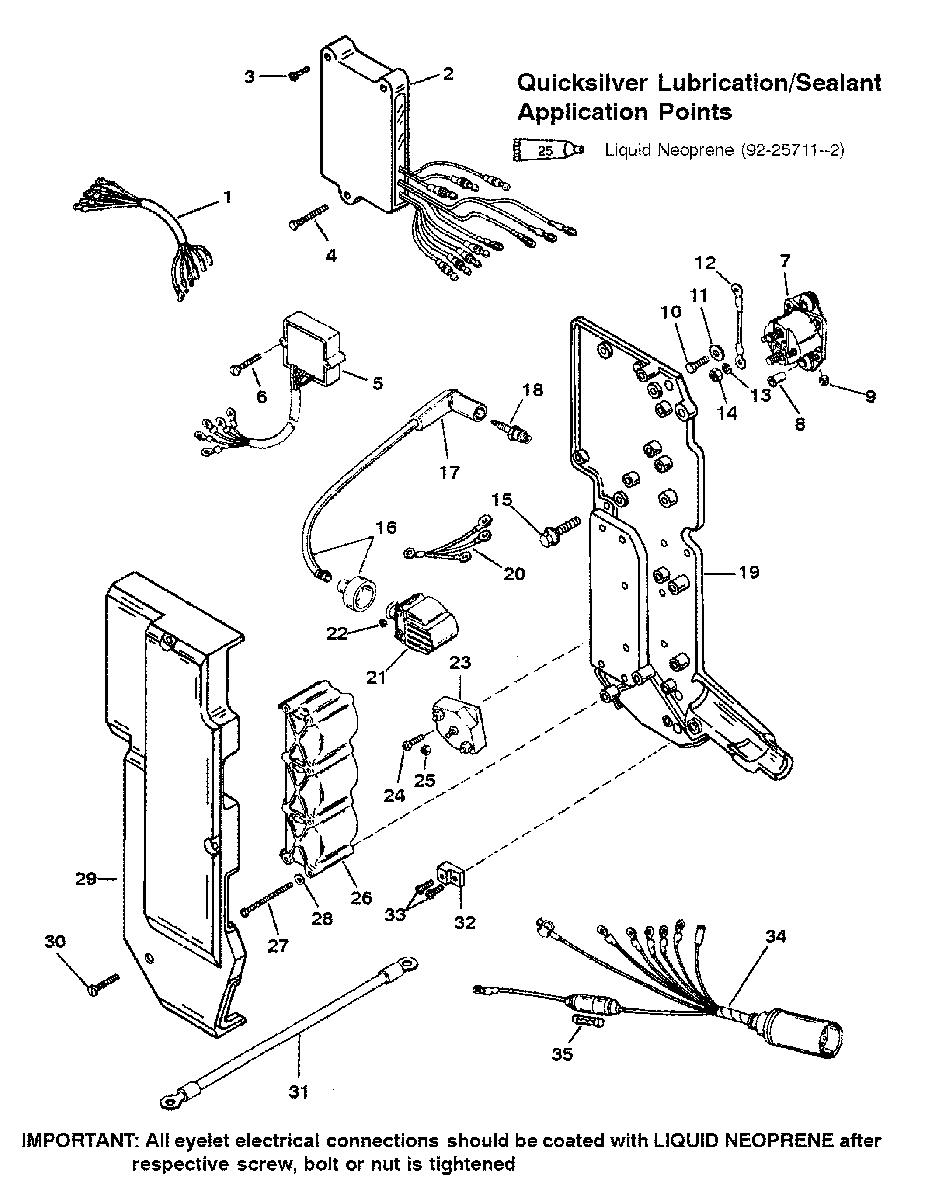

ELECTRICAL (USA-0G127500 - 0G437999)(BEL-9836633 - 9926999) для Mariner - 65 JET 9793577 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    84-821546A3 HARNESS
    HARNESS
  • 2
    18495A26 SWITCH BOX
    SWITCH BOX
  • 3
    10-82239312 SCREW (M5 X 12)
    SCREW (M5 X 12)
  • 4
    10-40011110 SCREW (M5 X .8 X 30)
    SCREW (M5 X .8 X 30)
  • 5
    8M0084173 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 6
    10-4010635 SCREW
    SCREW
  • 7
    89-817109A2 STARTER SOLENOID
    STARTER SOLENOID
  • 8
    23-818968 BUSHING
    BUSHING
  • 9
    11-26419 NUT (8-32)
    NUT (8-32)
  • 10
    10-40011109 SCREW
    SCREW
  • 11
    12-4002314 WASHER
    WASHER
  • 12
    84-88807A6 WIRE (BLACK - 3-1/2 IN.)(USE WHERE APPLICABLE)
    WIRE (BLACK - 3-1/2 IN.)(USE WHERE APPLICABLE)
  • 12
    84-88807A39 WIRE (BLACK - 5 IN.)
    WIRE (BLACK - 5 IN.)
  • 12
    84-88807A40 WIRE (BLACK - 6 IN.)
    WIRE (BLACK - 6 IN.)
  • 12
    84-79139A2 WIRE (RED - 7-1/2 IN.)(USE WHERE APPLICABLE)
    WIRE (RED - 7-1/2 IN.)(USE WHERE APPLICABLE)
  • 13
    13-53166 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 14
    11-68292 NUT (5/16-8)
    NUT (5/16-8)
  • 15
    10-82155025 SCREW
    SCREW
  • 16
    84-813715A7 HIGH TENSION CABLE
    HIGH TENSION CABLE
  • 17
    85-63709A1 PROTECTOR
    PROTECTOR
  • 18
    33-97182Q SPARK PLUG (NGK #BUHW-2) 20
    SPARK PLUG (NGK #BUHW-2) 20
  • 18
    33-14103Q SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW-2) 20
    SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW-2) 20
  • 18
    33-14103550 SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW) 20
    SPARK PLUG (BELGIUM/CANADA)(NGK#BUZHW) 20
  • 19
    8268192 IGNITION PLATE
    IGNITION PLATE
  • 20
    84-824912A2 CABLE-IGNITION COIL (BLACK - 7 IN.)
    CABLE-IGNITION COIL (BLACK - 7 IN.)
  • 20
    84-824912A1 CABLE-IGNITION COIL (BLACK - 3-1/4 IN.)
    CABLE-IGNITION COIL (BLACK - 3-1/4 IN.)
  • 21
    339-832757A4 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 22
    11-45076 NUT
    NUT
  • 23
    17602T02 RECTIFIER
    RECTIFIER
  • 24
    10-40007107 SCREW
    SCREW
  • 25
    11-45076 NUT
    NUT
  • 26
    43542 COVER
    COVER
  • 27
    10-40007115 SCREW
    SCREW
  • 28
    12-89302 WASHER
    WASHER
  • 29
    826820 COVER
    COVER
  • 30
    10-40011110 SCREW (M5 X .08 X 30)
    SCREW (M5 X .08 X 30)
  • 31
    84-88439A3 BATTERY CABLE
    (POSITIVE)
    BATTERY CABLE
    (POSITIVE)
  • 31
    84-88439A11 BATTERY CABLE
    (POSITIVE-ELEC.-NON/OIL)
    BATTERY CABLE
    (POSITIVE-ELEC.-NON/OIL)
  • 31
    84-88439A4 BATTERY CABLE
    (NEGATIVE)
    BATTERY CABLE
    (NEGATIVE)
  • 32
    86-45915 TERMINAL BLOCK
    DOUBLE QTY.'S FOR ELECTRIC MODELS
    TERMINAL BLOCK
    DOUBLE QTY.'S FOR ELECTRIC MODELS
  • 33
    10-48408 SCREW
    DOUBLE QTY.'S FOR ELECTRIC MODELS
    SCREW
    DOUBLE QTY.'S FOR ELECTRIC MODELS
  • 34
    84-41591A13 ENGINE HARNESS
    (ELECTRIC)
    ENGINE HARNESS
    (ELECTRIC)
  • 35
    88-79091 FUSE (20 AMP)
    FUSE (20 AMP)
