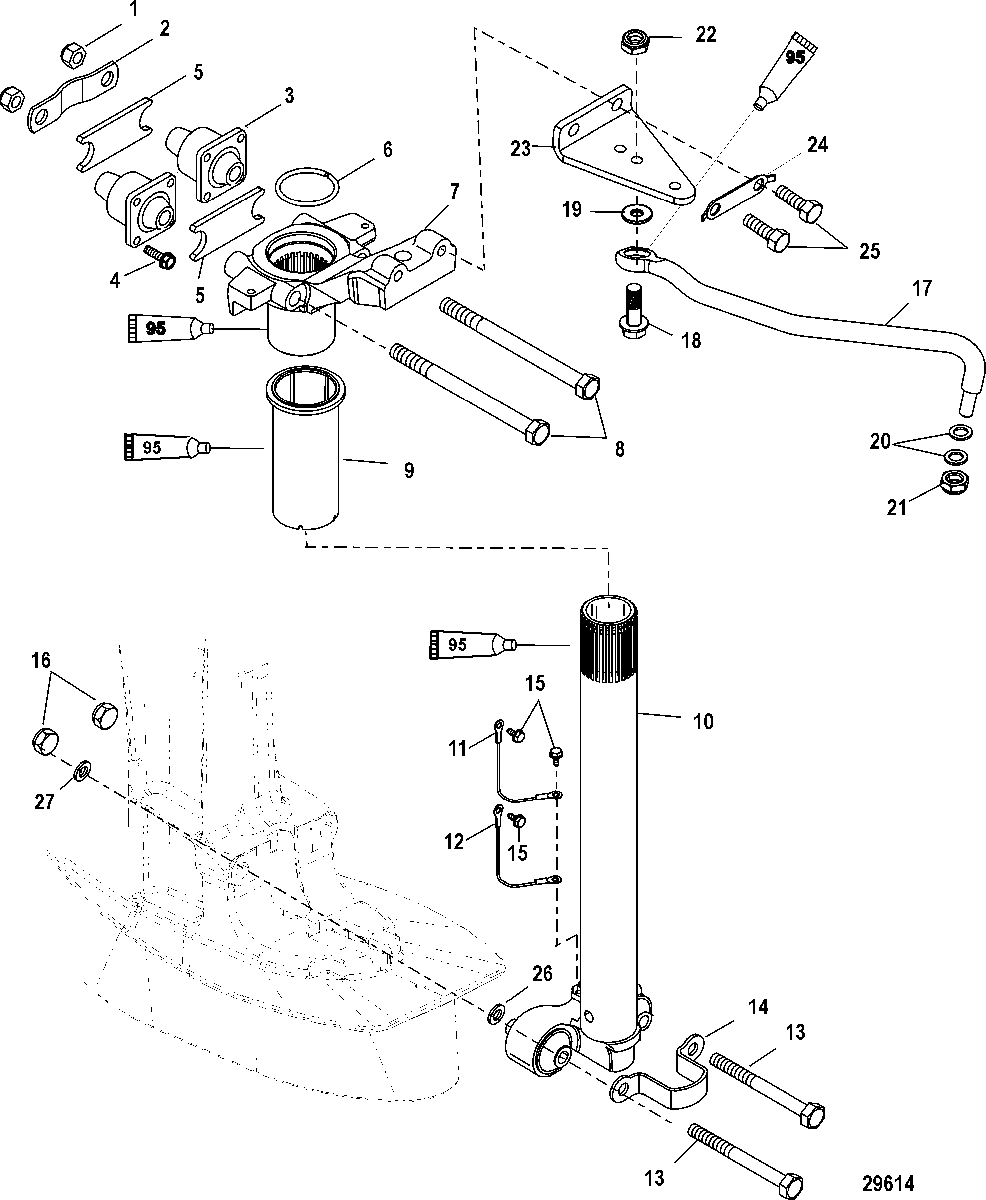

Steering Arm для Mariner - 60 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896

  • №
    Артикул
    Название
  • 1
    11-896963 NUT, (M12)
    NUT, (M12)
  • 2
    893773002 STRAP, Upper Mount
    STRAP, Upper Mount
  • 3
    893655T MOUNT, Upper
    MOUNT, Upper
  • 4
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 5
    826658 BUMPER
    BUMPER
  • 6
    53-89531 RING, Retaining
    RING, Retaining
  • 7
    8M0118183 ARM, Steering
    ARM, Steering
  • 8
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 9
    23-8279971 SPACER
    SPACER
  • 10
    893590T04 SWIVEL TUBE
    SWIVEL TUBE
  • 11
    84-88238T01 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 12
    88238A13 CABLE ASSEMBLY, Ground
    CABLE ASSEMBLY, Ground
  • 13
    10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SN# 1C046581 & Below
    SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SN# 1C046581 & Below
  • 13
    10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SN# 0P502069 & Below
    SCREW, (M10 x 105) Hex Flange - Stainless Steel
    SN# 0P502069 & Below
  • 13
    10-8M0103829 SCREW, (M10 x 120)
    SN# 1C046582 & Up
    SCREW, (M10 x 120)
    SN# 1C046582 & Up
  • 13
    10-8M0103829 SCREW, (M10 x 120)
    SN# 0P502070 & Up
    SCREW, (M10 x 120)
    SN# 0P502070 & Up
  • 14
    893703 STRAP, Lower Mount
    STRAP, Lower Mount
  • 15
    10-878607 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 16
    11-40140 NUT, (M10)
    NUT, (M10)
  • 17
    19608A14 ATTACHING KIT, Engine Steering (Non Handle)
    ATTACHING KIT, Engine Steering (Non Handle)
  • 18
    10-823919 SCREW, (.375-24 x 1.500) (Non Handle)
    SCREW, (.375-24 x 1.500) (Non Handle)
  • 19
    12-8M0109680 WASHER, (.390 x .546 x .12) (Non Handle)
    WASHER, (.390 x .546 x .12) (Non Handle)
  • 20
    12-37828 WASHER, (.390 x .625 x .062) Stainless Steel (Non Handle)
    WASHER, (.390 x .625 x .062) Stainless Steel (Non Handle)
  • 21
    11-8M0042636 NUT, (.375-24) Stainless Steel (Non Handle)
    NUT, (.375-24) Stainless Steel (Non Handle)
  • 22
    11-8M0042636 NUT, (.375-24) Stainless Steel (Non Handle)
    NUT, (.375-24) Stainless Steel (Non Handle)
  • 23
    816667A2 BRACKET ASSEMBLY, Steering, Ride-Guide (Non Handle)
    BRACKET ASSEMBLY, Steering, Ride-Guide (Non Handle)
  • 24
    14-8M0009820 TAB WASHER (Non Handle)
    TAB WASHER (Non Handle)
  • 25
    10-4000377 SCREW, (M10 x 30) (Non Handle)
    SCREW, (M10 x 30) (Non Handle)
  • 26
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    SN# 1C046581 & Below
    WASHER, (.453 x .812 x .105) Stainless Steel
    SN# 1C046581 & Below
  • 26
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    SN# 0P502069 & Below
    WASHER, (.453 x .812 x .105) Stainless Steel
    SN# 0P502069 & Below
  • 27
    10-8M0103829 SCREW, (M10 x 120)
    SN# 1C046582 & Up
    SCREW, (M10 x 120)
    SN# 1C046582 & Up
  • 27
    10-8M0103829 SCREW, (M10 x 120)
    SN# 0P502070 & Up
    SCREW, (M10 x 120)
    SN# 0P502070 & Up
