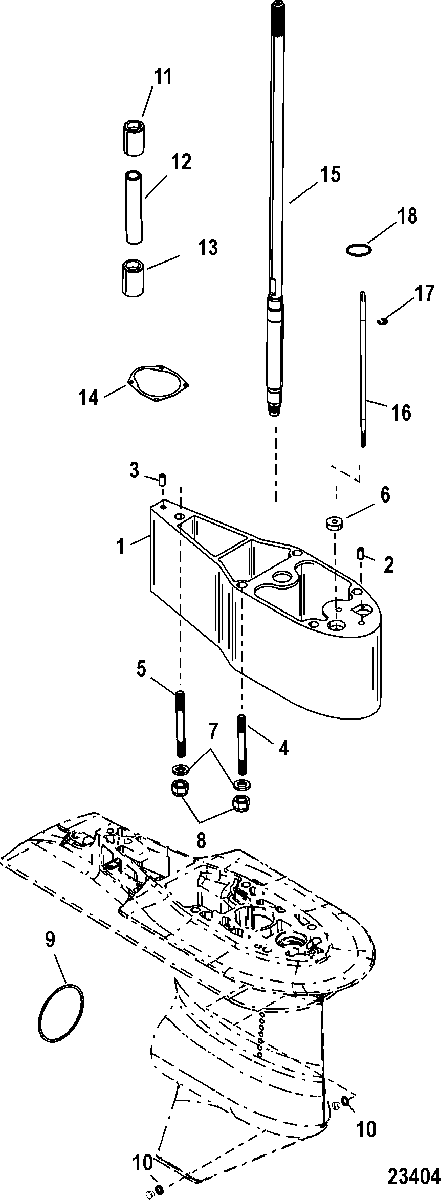

Extension Kit-5 Inch, Driveshaft Housing 12092A18 для Mariner - 60 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896

  • №
    Артикул
    Название
  • -
    12092A18 EXTENSION KIT, Driveshaft - 5 Inch
    EXTENSION KIT, Driveshaft - 5 Inch
  • 1
    12092A3 SPACER KIT
    SPACER KIT
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625)
    PIN, Dowel - With Hole (.375 x .625)
  • 3
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 4
    16-903503 STUD, (M10 x 190)
    STUD, (M10 x 190)
  • 5
    16-903502 STUD, (M10 x 227)
    STUD, (M10 x 227)
  • 6
    23-11289 SPACER
    SPACER
  • 7
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 8
    11-40140 NUT, (M10)
    NUT, (M10)
  • 9
    25-861844 O-RING, (3.609 x .139)
    O-RING, (3.609 x .139)
  • 10
    26-830749 SEAL
    SEAL
  • 11
    43023 SEAL
    SEAL
  • 12
    32-8M4501430 TUBE, Water
    TUBE, Water
  • 13
    430232 SEAL
    SEAL
  • 14
    27-430341 GASKET, Aluminum Cover
    GASKET, Aluminum Cover
  • 15
    45-875222A1 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 16
    853908A1 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 17
    53-29641 E RING
    E RING
  • 18
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
