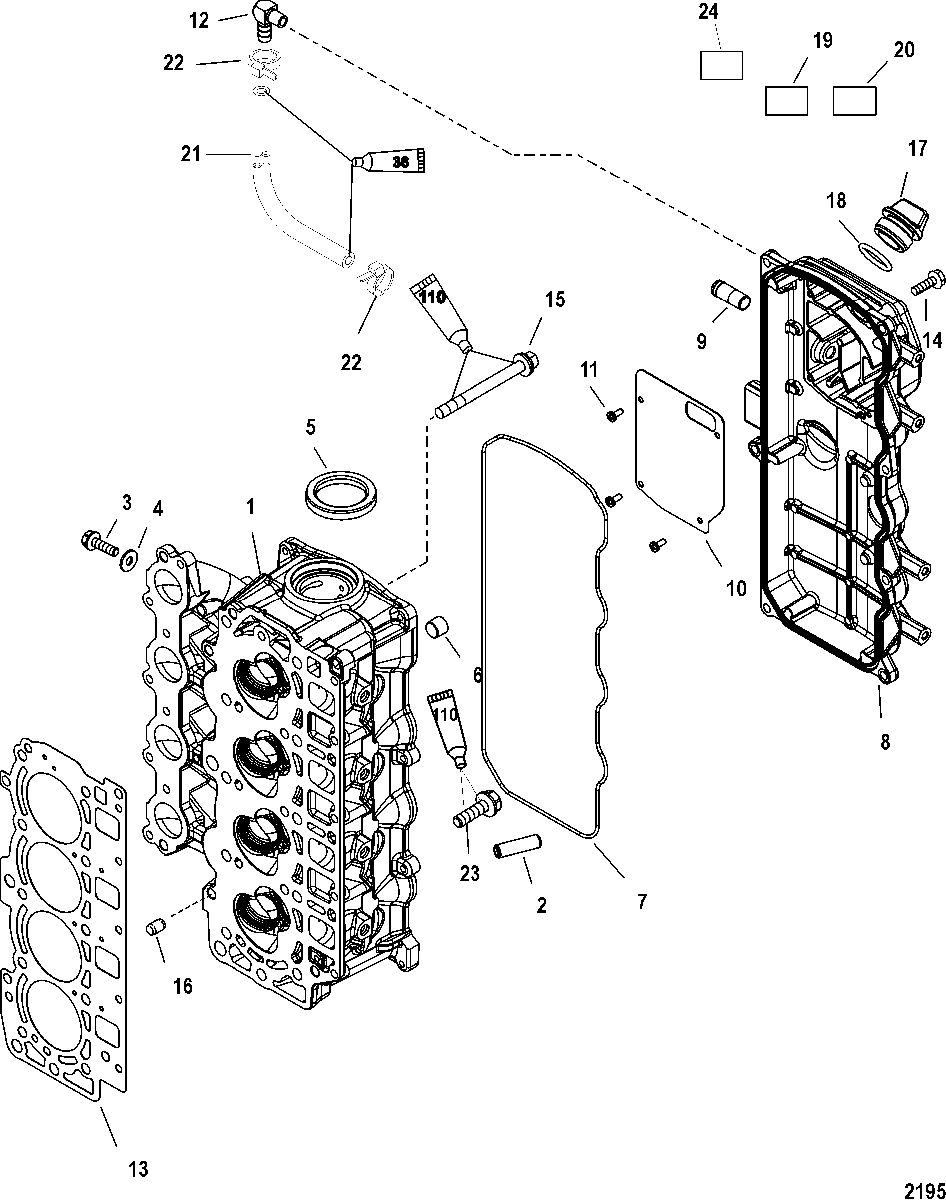

Cylinder Head для Mariner - 60 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896

  • №
    Артикул
    Название
  • -
    893505T05 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 1
    893505T06 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 2
    858266 GUIDE
    GUIDE
  • 3
    10-4000325 SCREW, (M6 x 8)
    SCREW, (M6 x 8)
  • 4
    12-859768 WASHER
    WASHER
  • 5
    26-893549 SEAL, Oil
    SEAL, Oil
  • 6
    22-875209 PIPE PLUG
    PIPE PLUG
  • 7
    25-8M0011870 SEAL
    SEAL
  • 8
    893694T02 COVER ASSEMBLY
    COVER ASSEMBLY
  • 9
    NSS NOT SOLD SEPARATE, Breather Pipe
    NOT SOLD SEPARATE, Breather Pipe
  • 10
    NSS NOT SOLD SEPARATE, Baffle Plate
    NOT SOLD SEPARATE, Baffle Plate
  • 11
    NSS NOT SOLD SEPARATE, Screw
    NOT SOLD SEPARATE, Screw
  • 12
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 13
    27-8M0118179 GASKET
    GASKET
  • 14
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 15
    10-82503395 SCREW, (M9 x 95)
    SCREW, (M9 x 95)
  • 16
    17-825010 PIN, Dowel
    PIN, Dowel
  • 17
    859578A1 PLUG ASSEMBLY, Oil
    PLUG ASSEMBLY, Oil
  • 18
    25-90196 O-RING, (.921 x .139)
    O-RING, (.921 x .139)
  • 19
    NSS NOT SOLD SEPARATE, Decal-Servicing Referral
    NOT SOLD SEPARATE, Decal-Servicing Referral
  • 20
    NSS NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
    NOT SOLD SEPARATE, Decal-Engine Oil/Valve Clearance
  • 21
    32-77653101 HOSE, (48.00 Inches Bulk) (Cut to 19 Inches) To Fitting in Adaptor Plate
    HOSE, (48.00 Inches Bulk) (Cut to 19 Inches) To Fitting in Adaptor Plate
  • 22
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 23
    10-893745025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 24
    NSS NOT SOLD SEPARATE, Decal HP ID
    NOT SOLD SEPARATE, Decal HP ID
  • -
    27-883599A02 GASKET SET
    GASKET SET
  • -
    61-893678T03 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
