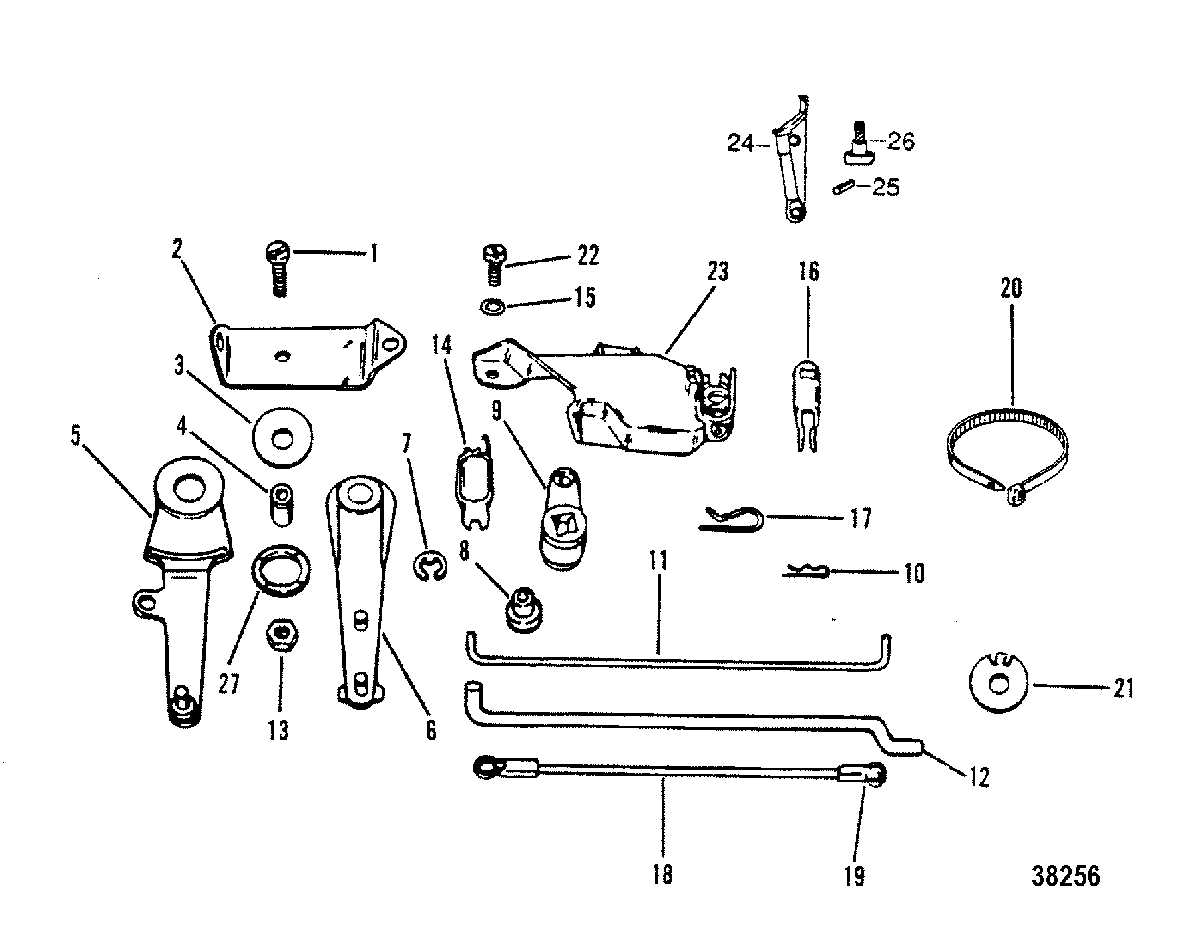

REMOTE CONTROL ATTACHING COMPONENTS для Mariner - 6 0A197112 THRU 0D280999

  • №
    Артикул
    Название
  • 1
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 2
    42809 BRACKET, Control Arm
    BRACKET, Control Arm
  • 3
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 3
    12-12132 WASHER, (.520 x 1.500 x .06)
    WASHER, (.520 x 1.500 x .06)
  • 3
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 4
    23-823807 BUSHING
    BUSHING
  • 5
    42810A8 CONTROL ARM
    REF. #11 is 9-1/8 Inch
    CONTROL ARM
    REF. #11 is 9-1/8 Inch
  • 5
    42810A8 CONTROL ARM
    REF. #11 is 8-3/8 Inch
    CONTROL ARM
    REF. #11 is 8-3/8 Inch
  • 6
    428071 ARM, Throttle Control
    REF. #11 is 9-1/8 Inch
    ARM, Throttle Control
    REF. #11 is 9-1/8 Inch
  • 6
    428071 ARM, Throttle Control
    REF. #11 is 8-3/8 Inch
    ARM, Throttle Control
    REF. #11 is 8-3/8 Inch
  • 7
    53-61319 E RING
    REF. #11 is 9-1/8 Inch
    E RING
    REF. #11 is 9-1/8 Inch
  • 8
    23-889731 BUSHING
    REF. #11 is 9-1/8 Inch
    BUSHING
    REF. #11 is 9-1/8 Inch
  • 9
    42800 LEVER
    REF. #11 is 9-1/8 Inch
    LEVER
    REF. #11 is 9-1/8 Inch
  • 10
    18-210711 COTTER PIN
    REF. #11 is 9-1/8 Inch
    COTTER PIN
    REF. #11 is 9-1/8 Inch
  • 11
    42741 SHIFT LINK
    REF. #11 is 9-1/8 Inch
    SHIFT LINK
    REF. #11 is 9-1/8 Inch
  • 11
    815550A1 SHIFT SHAFT
    REF. #11 is 8-3/8 Inch (USE W/SWIVEL BALL/SWIVEL BASE)
    SHIFT SHAFT
    REF. #11 is 8-3/8 Inch (USE W/SWIVEL BALL/SWIVEL BASE)
  • 5
    42810A8 ARM ASSEMBLY, Control
    USE W/REF. #12
    ARM ASSEMBLY, Control
    USE W/REF. #12
  • 8
    23-889731 BUSHING
    USE W/REF. #12
    BUSHING
    USE W/REF. #12
  • 10
    18-210711 COTTER PIN
    USE W/REF. #12
    COTTER PIN
    USE W/REF. #12
  • 12
    878169 SHIFT LINK
    (USE W/O SWIVEL BALL/SWIVEL BASE)
    SHIFT LINK
    (USE W/O SWIVEL BALL/SWIVEL BASE)
  • 13
    11-401386 NUT, (M6)
    NUT, (M6)
  • 14
    428021 RETAINER
    RETAINER
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    424291 RETAINER
    RETAINER
  • 17
    54-11372 CLIP
    CLIP
  • 18
    8M0084741 LINK ASSEMBLY, Throttle
    LINK ASSEMBLY, Throttle
  • 19
    8M0084742 SOCKET
    SOCKET
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 21
    14-11371 TAB WASHER (OLD DESIGN)
    TAB WASHER (OLD DESIGN)
  • 22
    10-4000171 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 23
    42805A3 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 24
    11373 PIN, Latch
    PIN, Latch
  • 25
    17-239281 PIN
    PIN
  • 26
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 27
    13-12134 WASHER, Wave
    WASHER, Wave
