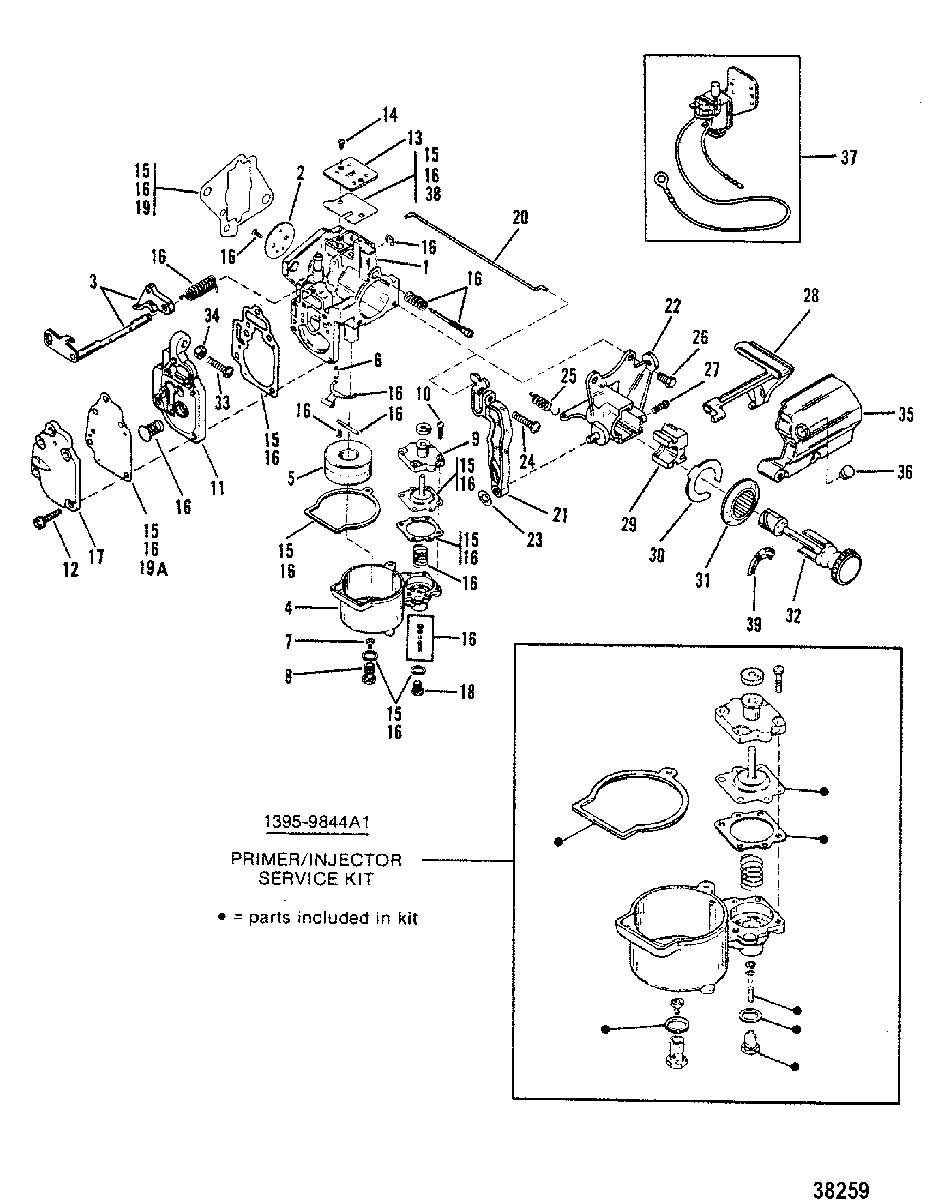

CARBURETOR , WMC 1717B17C1818A18B20/20A/20B23 для Mariner - 6 0A197112 THRU 0D280999

  • №
    Артикул
    Название
  • 1
    1392-9503T21 CARBURETOR (6)(WMC-20B)
    CARBURETOR (6)(WMC-20B)
  • 1
    1392-9266T22 CARBURETOR (8)(WMC-18B)
    CARBURETOR (8)(WMC-18B)
  • 1
    1392-8846A24 CARBURETOR (9.9)(WMC-23)
    CARBURETOR (9.9)(WMC-23)
  • 2
    1395-9473 VALVE, Throttle
    VALVE, Throttle
  • 2
    815133 VALVE, Throttle (WMC-23)
    VALVE, Throttle (WMC-23)
  • 3
    1395-804707 SHAFT, Throttle (WMC-17/18/20)
    SHAFT, Throttle (WMC-17/18/20)
  • 3
    1395-804707 SHAFT (WMC-17C/18A/18B/20A/20B)
    SHAFT (WMC-17C/18A/18B/20A/20B)
  • 3
    813022 SHAFT, Throttle (WMC-23)(INCL.SCREW/SPRING)
    SHAFT, Throttle (WMC-23)(INCL.SCREW/SPRING)
  • 4
    1395-9164 BOWL, Fuel
    BOWL, Fuel
  • 5
    1395-91691 FLOAT
    FLOAT
  • 6
    1395-803861 VALVE
    VALVE
  • 7
    1399-5315 JET, Main Fuel (.042) (6)
    JET, Main Fuel (.042) (6)
  • 7
    1399-5317 JET, (.046) (8)
    JET, (.046) (8)
  • 7
    1399-5213 JET, Main (.056) (9.9)
    JET, Main (.056) (9.9)
  • 7
    1395-6359 JET, (.052) (9.9)
    JET, (.052) (9.9)
  • 8
    1395-9171 PLUG, JET RETAINER
    PLUG, JET RETAINER
  • 9
    813618 COVER, DIAPHRAGM
    COVER, DIAPHRAGM
  • 10
    1395-9697 SCREW (WMC-17/18/20)
    SCREW (WMC-17/18/20)
  • 10
    1395-9697 SCREW (WMC-17B/17C/18A/18B/20A/20B/23)
    SCREW (WMC-17B/17C/18A/18B/20A/20B/23)
  • 11
    1395-9702 BODY
    BODY
  • 12
    1395-9643 SCREW, FUEL PUMP COVER
    SCREW, FUEL PUMP COVER
  • 13
    1395-9177 PLATE (WMC-17/18/20)
    PLATE (WMC-17/18/20)
  • 13
    1395-9699 PLATE (WMC-17B/17C/18A/18B/20A/20B/23)
    PLATE (WMC-17B/17C/18A/18B/20A/20B/23)
  • 14
    1395-9696 SCREW (WMC-17/18/20)
    SCREW (WMC-17/18/20)
  • 14
    1395-9696 SCREW (WMC-17B/17C/18A/18B/20A/20B/23)
    SCREW (WMC-17B/17C/18A/18B/20A/20B/23)
  • 15
    1395-97611 GASKET/DIAPHRAGM KIT
    GASKET/DIAPHRAGM KIT
  • 16
    1395-96481 REPAIR PARTS KIT
    REPAIR PARTS KIT
  • 16
    1395-8237072 REPAIR KIT (WMC-23)
    REPAIR KIT (WMC-23)
  • 17
    1395-9637 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 18
    1395-9762 PLUG
    PLUG
  • 19A
    1395-9635 DIAPHRAGM/GASKET
    DIAPHRAGM/GASKET
  • 20
    445541 IDLE WIRE
    IDLE WIRE
  • 21
    128053 LEVER, Fast Idle
    LEVER, Fast Idle
  • 22
    12803 BRACKET, Primer
    BRACKET, Primer
  • 23
    11-821979 PUSH NUT
    PUSH NUT
  • 24
    10-12110 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
  • 25
    24-11277 SPRING, Tension
    SPRING, Tension
  • 26
    10-40056110 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 26
    10-400018 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 27
    10-79965 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 28
    112731 LEVER, Primer
    LEVER, Primer
  • 29
    11280 CAM BLOCK
    CAM BLOCK
  • 30
    53-11278 CLIP, Retaining
    CLIP, Retaining
  • 31
    12804A1 BEZEL ASSEMBLY, Choke
    BEZEL ASSEMBLY, Choke
  • 32
    128022 PRIMER KNOB
    PRIMER KNOB
  • 33
    10-40056110 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 33
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 34
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 35
    17442 COVER
    COVER
  • 36
    19-47579 PLUG
    PLUG
  • 37
    1395-823433 CHOKE, Electric
    CHOKE, Electric
  • 38
    27-44426 GASKET, ELECTRIC CHOKE
    GASKET, ELECTRIC CHOKE
  • 39
    37-129701 DECAL (SLOW/FAST)
    DECAL (SLOW/FAST)
