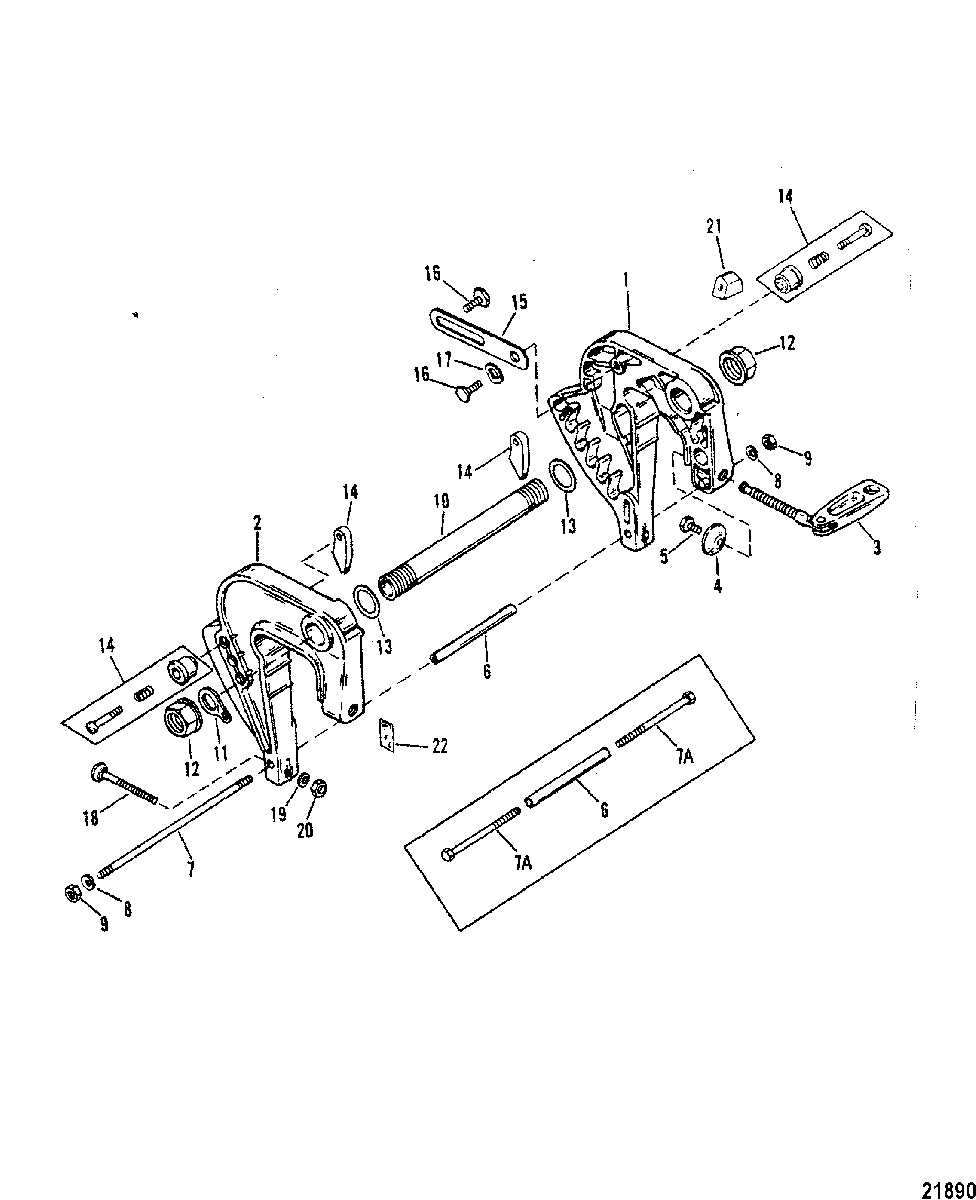

CLAMP BRACKET для Mariner - 6 0A197112 THRU 0D280999

  • №
    Артикул
    Название
  • 1
    3404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) (BLACK)
    CLAMP BRACKET ASSEMBLY (PORT) (BLACK)
  • 1
    3404-8894A11 CLAMP BRACKET ASSEMBLY (PORT) (GRAY)
    CLAMP BRACKET ASSEMBLY (PORT) (GRAY)
  • 2
    3404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)
    CLAMP BRACKET ASSEMBLY (STARBOARD) (BLACK)
  • 2
    3404-8894A11 CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)
    CLAMP BRACKET ASSEMBLY (STARBOARD) (GRAY)
  • 3
    10-92767A1 THUMB SCREW ASSEMBLY, (14 mm)
    THUMB SCREW ASSEMBLY, (14 mm)
  • 3
    10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)
    THUMB SCREW ASSEMBLY, (16 mm)
  • 4
    12-818884 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 5
    10-768042 SCREW, WASHER ATTACHING
    SCREW, WASHER ATTACHING
  • 6
    23-43431 SPACER, CLAMP BRACKET STUD
    (STUD ASSEMBLY)
    SPACER, CLAMP BRACKET STUD
    (STUD ASSEMBLY)
  • 6
    23-8M0084719 SPACER
    (SCREW ASSEMBLY)
    SPACER
    (SCREW ASSEMBLY)
  • 7
    16-42129 STUD, CLAMP BRACKET
    (STUD ASSEMBLY)
    STUD, CLAMP BRACKET
    (STUD ASSEMBLY)
  • 7A
    10-4000333 SCREW, (M6 x 40)
    (SCREW ASSEMBLY)
    SCREW, (M6 x 40)
    (SCREW ASSEMBLY)
  • 8
    13-400256 LOCKWASHER, (M6), CLAMP BRACKET STUD
    (STUD ASSEMBLY)
    LOCKWASHER, (M6), CLAMP BRACKET STUD
    (STUD ASSEMBLY)
  • 9
    11-400212 NUT, (M6) Stainless Steel, CLAMP BRACKET STUD
    (STUD ASSEMBLY)
    NUT, (M6) Stainless Steel, CLAMP BRACKET STUD
    (STUD ASSEMBLY)
  • 10
    42078 TILT TUBE
    (NOTE: USE 30664 ON ELECTRIC LONG W/REMOTE CONTROL.)
    TILT TUBE
    (NOTE: USE 30664 ON ELECTRIC LONG W/REMOTE CONTROL.)
  • 11
    54-8M0085928 CLIP, SAFETY
    CLIP, SAFETY
  • 12
    11-93164 NUT, (.875), TILT TUBE
    NUT, (.875), TILT TUBE
  • 13
    12-71421 WASHER, Nylon, TILT TUBE
    WASHER, Nylon, TILT TUBE
  • 14
    42390A1 LEVER ASSEMBLY, Tilt Return
    LEVER ASSEMBLY, Tilt Return
  • 15
    90901 STRAP, TILT STOP - PORT SIDE
    STRAP, TILT STOP - PORT SIDE
  • 16
    10-42498 SCREW, (M6 x 1.0), STRAP TO CLAMP BRACKET
    SCREW, (M6 x 1.0), STRAP TO CLAMP BRACKET
  • 17
    13-31030 WAVE WASHER, TILT STOP STRAT SCREW
    WAVE WASHER, TILT STOP STRAT SCREW
  • 18
    10-43216 BOLT, (.250-20 x 3.50), CLAMP TO TRANSOM
    BOLT, (.250-20 x 3.50), CLAMP TO TRANSOM
  • 19
    12-67983 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 21
    814427 SHUTTLE, TILT LOCK (NEW DESIGN)
    SHUTTLE, TILT LOCK (NEW DESIGN)
  • 22
    37-12869 DECAL, Tilt Position
    DECAL, Tilt Position
