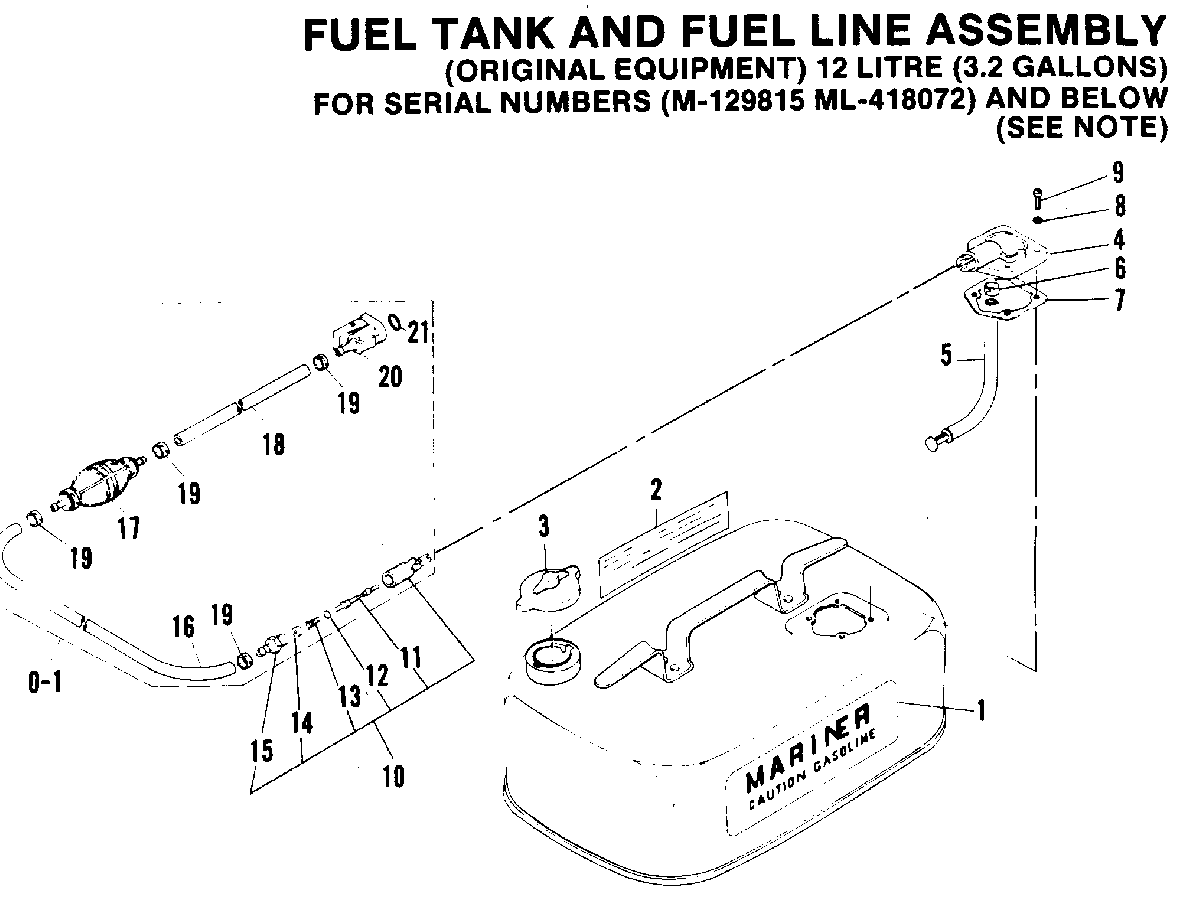

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - 5C 6E3-400101 AND UP

  • №
    Артикул
    Название
  • 1
    37-95488M DECAL, SIDE (MARINER)
    SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
    DECAL, SIDE (MARINER)
    SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
  • 1
    37-83057M DECAL, SIDE (MARINER)
    SERIAL (M-006975 ML-304983) AND BELOW
    DECAL, SIDE (MARINER)
    SERIAL (M-006975 ML-304983) AND BELOW
  • 2
    37-95489M DECAL, SIDE (CAUTION)
    SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
    DECAL, SIDE (CAUTION)
    SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
  • 2
    37-83765M DECAL, SIDE (CAUTION)
    SERIAL (M-006975 ML-304983) AND BELOW
    DECAL, SIDE (CAUTION)
    SERIAL (M-006975 ML-304983) AND BELOW
  • 3
    36-18962M CAP ASS'Y
    CAP ASS'Y
  • 4
    83584M HOUSING ASS'Y, FUEL CONNECTOR
    HOUSING ASS'Y, FUEL CONNECTOR
  • 5
    32-94727M HOSE, PICKUP
    HOSE, PICKUP
  • 6
    54-16725M CLAMP, PICKUP HOSE
    CLAMP, PICKUP HOSE
  • 7
    27-81320M GASKET, HOUSING ASS'Y
    GASKET, HOUSING ASS'Y
  • 8
    12-95501M SEAL
    SEAL
  • 9
    10-83356M SCREW
    SCREW
  • 0-1
    32-16721M FUEL LINE ASS'Y
    SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
    FUEL LINE ASS'Y
    SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
  • 0-1
    32-877681Q8 FUEL LINE ASS'Y
    SERIAL (M-006975 ML-304983) AND BELOW
    FUEL LINE ASS'Y
    SERIAL (M-006975 ML-304983) AND BELOW
  • 10
    30185Q3 BAYONET BODY ASS'Y
    BAYONET BODY ASS'Y
  • 11
    30185Q3 STEM, BAYONET BODY
    STEM, BAYONET BODY
  • 12
    25-16524 O-RING, BAYONET BODY STEM
    O-RING, BAYONET BODY STEM
  • 13
    24-30189 SPRING, BAYONET BODY STEM
    SPRING, BAYONET BODY STEM
  • 14
    30188 WASHER, CAP
    WASHER, CAP
  • 15
    22-63187 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 16
    32-94727M HOSE, FUEL TANK TO PRIMER BULB
    HOSE, FUEL TANK TO PRIMER BULB
  • 17
    89396Q01 PRIMER BULB
    PRIMER BULB
  • 18
    32-94727M HOSE, PROMER BULB TO FUEL CONNECTOR
    HOSE, PROMER BULB TO FUEL CONNECTOR
  • 19
    54-16725M CLAMP, HOSE
    CLAMP, HOSE
  • 20
    22-14213Q HOUSING ASS'Y, FUEL CONNECTOR
    HOUSING ASS'Y, FUEL CONNECTOR
  • 21
    25-82789M O-RING
    O-RING
