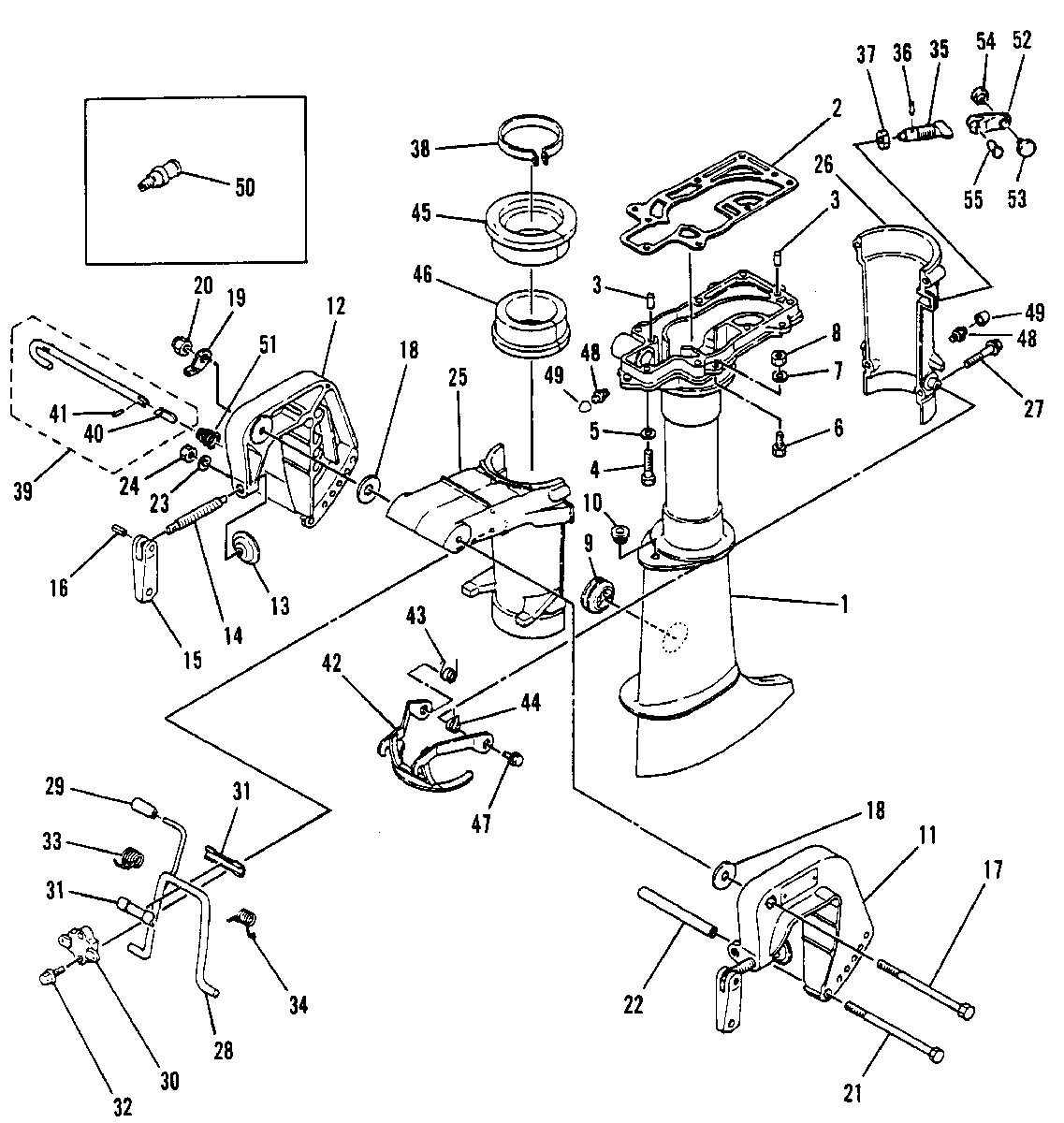

DRIVESHAFT HOUSING/CLAMP AND SWIVEL BRACKET для Mariner - 5C 6E3-400101 AND UP

  • №
    Артикул
    Название
  • 1
    1587-9776M DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-154200 ML-430160) AND ABOVE
    DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 1
    1587-9213M DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-006976 THRU 154199 ML-304984 THRU 430159)
    DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-006976 THRU 154199 ML-304984 THRU 430159)
  • 1
    1587-8347M DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-006975 ML-304983) AND BELOW
    DRIVESHAFT HOUSING (SHORT)
    SERIAL (M-006975 ML-304983) AND BELOW
  • 1
    1587-9777M DRIVESHAFT HOUSING (LONG)
    SERIAL (M-154200 ML-430160) AND ABOVE
    DRIVESHAFT HOUSING (LONG)
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 1
    1587-9214M DRIVESHAFT HOUSING (LONG)
    SERIAL (M-006976 THRU 154199 ML-304984 THRU 430159)
    DRIVESHAFT HOUSING (LONG)
    SERIAL (M-006976 THRU 154199 ML-304984 THRU 430159)
  • 1
    1587-8348M DRIVESHAFT HOUSING (LONG)
    SERIAL (M-006975 ML-304983) AND BELOW
    DRIVESHAFT HOUSING (LONG)
    SERIAL (M-006975 ML-304983) AND BELOW
  • 2
    27-91780 GASKET
    GASKET
  • 3
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 4
    10-83285M BOLT
    BOLT
  • 5
    12-82214M WASHER
    WASHER
  • 6
    10-826957M BOLT
    BOLT
  • 7
    12-82214M WASHER
    WASHER
  • 8
    11-82390M NUT
    NUT
  • 9
    80533M COVER, DRIVESHAFT HOUSING
    COVER, DRIVESHAFT HOUSING
  • 10
    25-91782M GROMMET
    GROMMET
  • 11
    1484-9778M BRACKET, CLAMP (PORT)
    SERIAL (M-154200 ML-430160) AND ABOVE
    BRACKET, CLAMP (PORT)
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 11
    1484-8349M BRACKET, CLAMP (PORT)
    SERIAL (M-154199 ML-430159) AND BELOW
    BRACKET, CLAMP (PORT)
    SERIAL (M-154199 ML-430159) AND BELOW
  • 12
    1484-9779M BRACKET, CLAMP (STARBOARD)
    SERIAL (M-154200 ML-430160) AND ABOVE
    BRACKET, CLAMP (STARBOARD)
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 12
    1484-8350M BRACKET, CLAMP (STARBOARD)
    SERIAL (M-154199 ML-430159) AND BELOW
    BRACKET, CLAMP (STARBOARD)
    SERIAL (M-154199 ML-430159) AND BELOW
  • 13
    12-80638M PAD, TRANSOM CLAMP
    PAD, TRANSOM CLAMP
  • 14
    10-91783M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 15
    91784M HANDLE, TRANSOM CLAMP
    HANDLE, TRANSOM CLAMP
  • 16
    17-852812 PIN
    SERIAL (M-108871 ML-404901) AND ABOVE
    PIN
    SERIAL (M-108871 ML-404901) AND ABOVE
  • 16
    17-82157M PIN
    SERIAL (M-108870 ML-404900) AND BELOW
    PIN
    SERIAL (M-108870 ML-404900) AND BELOW
  • 17
    10-18849M BOLT
    SERIAL (M-154200 ML-430160) AND ABOVE
    BOLT
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 17
    10-98961M BOLT
    SERIAL (M-154199 ML-430159) AND BELOW
    BOLT
    SERIAL (M-154199 ML-430159) AND BELOW
  • 18
    12-18850M WASHER
    WASHER
  • 19
    18840M PLATE, CLAMP BRACKET
    SERIAL (M-154200 ML-430160) AND ABOVE
    PLATE, CLAMP BRACKET
    SERIAL (M-154200 ML-430160) AND ABOVE
  • 19
    12-82217M WASHER
    SERIAL (M-154199 ML-430159) AND BELOW
    WASHER
    SERIAL (M-154199 ML-430159) AND BELOW
  • 20
    11-84295M NUT
    NUT
