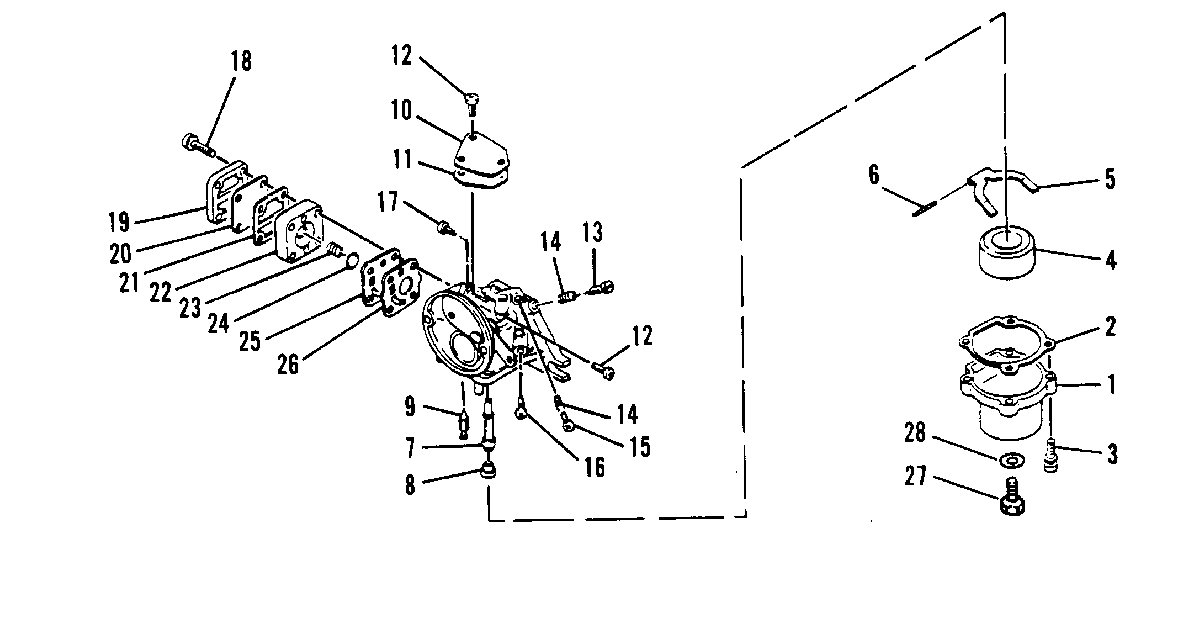

CARBURETOR для Mariner - 5C 6E3-400101 AND UP

  • №
    Артикул
    Название
  • 0-1
    1383-9508M CARBURETOR ASS'Y
    SERIAL (M-144067 ML-425197) AND ABOVE
    CARBURETOR ASS'Y
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 0-1
    1383-9508M CARBURETOR ASS'Y
    SERIAL (M-144066 ML-425196) AND BELOW
    CARBURETOR ASS'Y
    SERIAL (M-144066 ML-425196) AND BELOW
  • 1
    14178M BODY, FLOAT CHAMBER
    SERIAL (M-144067 ML-425197) AND ABOVE
    BODY, FLOAT CHAMBER
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 1
    91737M BODY, FLOAT CHAMBER
    SERIAL (M-136244 THRU 144066 ML-420839 THRU 425196)
    BODY, FLOAT CHAMBER
    SERIAL (M-136244 THRU 144066 ML-420839 THRU 425196)
  • 1
    91737M BODY, FLOAT CHAMBER
    SERIAL (M-136243 ML-420838) AND BELOW
    BODY, FLOAT CHAMBER
    SERIAL (M-136243 ML-420838) AND BELOW
  • 2
    27-14179M GASKET, FLOAT CHAMBER
    SERIAL (M-144067 ML-425197) AND ABOVE
    GASKET, FLOAT CHAMBER
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 2
    27-80972M GASKET, FLOAT CHAMBER
    SERIAL (M-144066 ML-425196) AND BELOW
    GASKET, FLOAT CHAMBER
    SERIAL (M-144066 ML-425196) AND BELOW
  • 3
    10-91738M SCREW
    SCREW
  • 4
    14180M FLOAT
    SERIAL (M-144067 ML-425197) AND ABOVE
    FLOAT
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 4
    80450M FLOAT
    SERIAL (M-144066 ML-425196) AND BELOW
    FLOAT
    SERIAL (M-144066 ML-425196) AND BELOW
  • 5
    91739M ARM
    SERIAL (M-144066 ML-425196) AND BELOW
    ARM
    SERIAL (M-144066 ML-425196) AND BELOW
  • 6
    17-80451M PIN, FLOAT
    PIN, FLOAT
  • 0-1
    1383-9508M CARBURETOR ASS'Y
    SERIAL (M-144067 ML-425197) AND ABOVE
    CARBURETOR ASS'Y
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 0-1
    1383-9508M CARBURETOR ASS'Y
    SERIAL (M-144066 ML-425196) AND BELOW
    CARBURETOR ASS'Y
    SERIAL (M-144066 ML-425196) AND BELOW
  • 7
    14198M NOZZLE, MAIN
    SERIAL (M-144067 ML-425197) AND ABOVE
    NOZZLE, MAIN
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 7
    14181M NOZZLE, MAIN
    SERIAL (M-144066 ML-425196) AND BELOW
    NOZZLE, MAIN
    SERIAL (M-144066 ML-425196) AND BELOW
  • 8
    80579M JET, MAIN (#80)
    SERIAL (M-144067 ML-425197) AND ABOVE
    JET, MAIN (#80)
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 8
    91741M JET, MAIN (#86)
    SERIAL (M-108871 THRU 144066 ML-404901 THRU 425196)
    JET, MAIN (#86)
    SERIAL (M-108871 THRU 144066 ML-404901 THRU 425196)
  • 8
    96556M JET, MAIN (#94)
    SERIAL (M-108870 ML-404900) AND BELOW
    JET, MAIN (#94)
    SERIAL (M-108870 ML-404900) AND BELOW
  • 9
    91742M VALVE, NEEDLE
    SERIAL (M-162953 ML-435351) AND ABOVE
    VALVE, NEEDLE
    SERIAL (M-162953 ML-435351) AND ABOVE
  • 9
    14182M VALVE, NEEDLE
    SERIAL (M-144067 THRU 162952 ML-425197 THRU 435350)
    VALVE, NEEDLE
    SERIAL (M-144067 THRU 162952 ML-425197 THRU 435350)
  • 9
    91742M VALVE, NEEDLE
    SERIAL (M-144066 ML-425196) AND BELOW
    VALVE, NEEDLE
    SERIAL (M-144066 ML-425196) AND BELOW
  • 10
    91743M COVER, PLATE
    COVER, PLATE
  • 11
    27-91744M GASKET
    GASKET
  • 12
    10-82500M SCREW
    SCREW
  • 13
    10-80573M SCREW, AIR ADJUSTING
    SCREW, AIR ADJUSTING
  • 14
    24-814460M SPRING, PILOT ADJUSTING
    SPRING, PILOT ADJUSTING
  • 15
    10-82500M SCREW, IDLE
    SERIAL (M-162953 ML-435351) AND ABOVE
    SCREW, IDLE
    SERIAL (M-162953 ML-435351) AND ABOVE
  • 15
    10-83509M SCREW, IDLE
    SERIAL (M-162952 ML-435350) AND BELOW
    SCREW, IDLE
    SERIAL (M-162952 ML-435350) AND BELOW
  • 16
    14199M JET, PILOT (#52)
    JET, PILOT (#52)
  • 16
    91746M JET, PILOT (#46)
    SERIAL (M-108871 THRU 144066 ML-404901 THRU 425196)
    JET, PILOT (#46)
    SERIAL (M-108871 THRU 144066 ML-404901 THRU 425196)
  • 16
    96557M JET, PILOT (#44)
    SERIAL (M-108870 ML-404900) AND BELOW
    JET, PILOT (#44)
    SERIAL (M-108870 ML-404900) AND BELOW
  • 17
    10-80434M SCREW, GUIDE
    SCREW, GUIDE
  • 18
    10-80738M SCREW
    SCREW
  • 19
    91747M COVER, PUMP
    COVER, PUMP
  • 20
    91748M DIAPHRAGM
    DIAPHRAGM
  • 21
    27-91749M GASKET, PUMP COVER
    GASKET, PUMP COVER
  • 22
    91750M BODY, PUMP
    BODY, PUMP
  • 23
    24-91751M SPRING
    SPRING
  • 24
    91752M PLATE
    PLATE
  • 25
    91753M DIAPHRAGM
    DIAPHRAGM
  • 26
    27-91754 GASKET, PUMP BODY
    GASKET, PUMP BODY
  • 27
    22-14183M SCREW, DRAIN
    SERIAL (M-144067 ML-425197) AND ABOVE
    SCREW, DRAIN
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 28
    27-13999M GASKET
    SERIAL (M-144067 ML-425197) AND ABOVE
    GASKET
    SERIAL (M-144067 ML-425197) AND ABOVE
  • 28
    14184T REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS SERIAL (M-144067 ML-425197) AND ABOVE
    REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS SERIAL (M-144067 ML-425197) AND ABOVE
  • 28
    91755T REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS SERIAL (M-144066 ML-425196) AND BELOW
    REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS SERIAL (M-144066 ML-425196) AND BELOW
