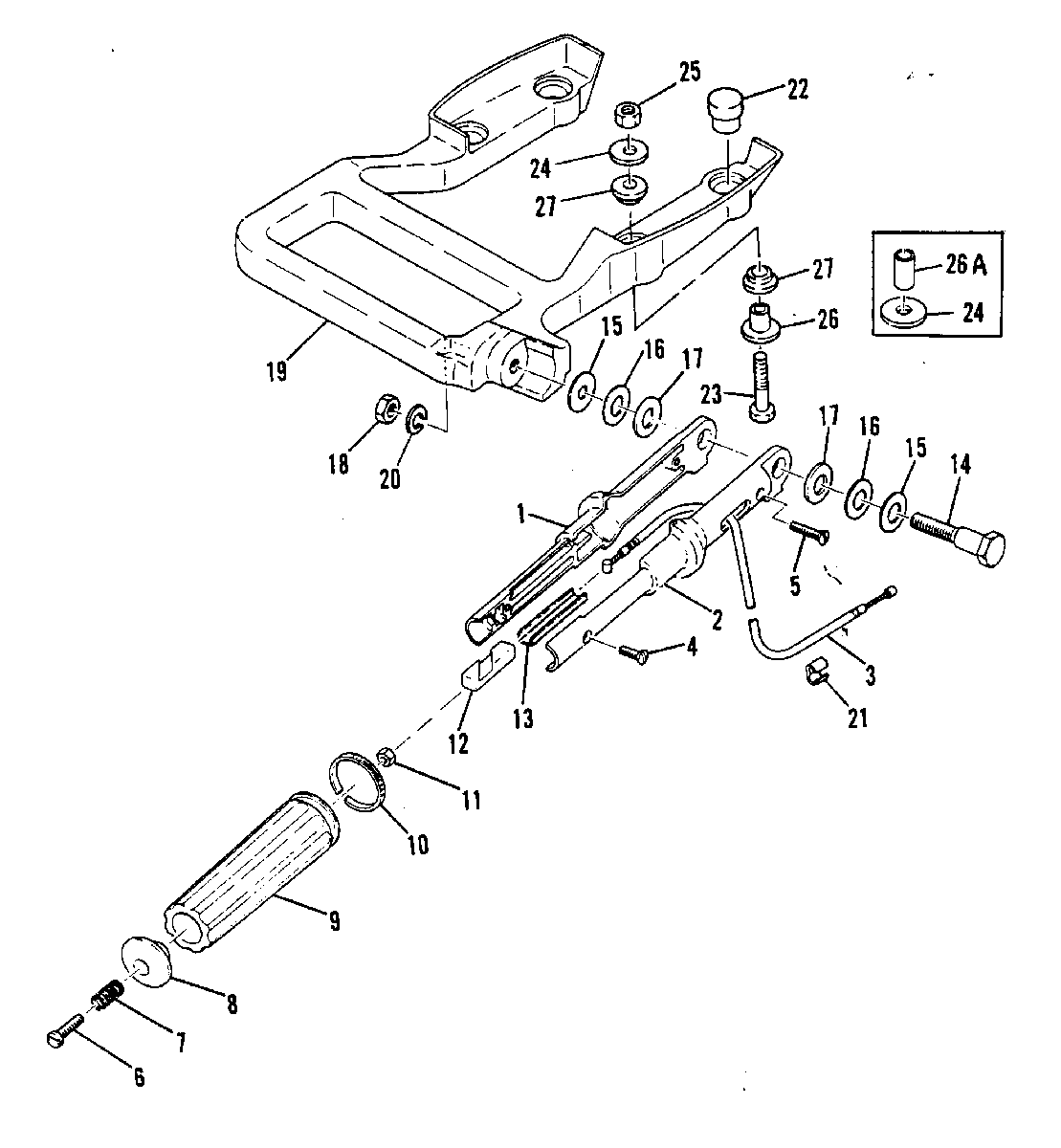

STEERING HANDLE для Mariner - 5A 661-30090 AND BELOW

  • №
    Артикул
    Название
  • 1
    84408M STEERING ARM
    SERIAL 00032166-09999999
    STEERING ARM
    SERIAL 00032166-09999999
  • 2
    84371M STEERING ARM
    SERIAL 00032166-09999999
    STEERING ARM
    SERIAL 00032166-09999999
  • 1
    80311M STEERING ARM
    SERIAL 00000000-00032165
    STEERING ARM
    SERIAL 00000000-00032165
  • 2
    80312M STEERING ARM
    SERIAL 00000000-00032165
    STEERING ARM
    SERIAL 00000000-00032165
  • 3
    80974M THROTTLE CABLE
    THROTTLE CABLE
  • 4
    10-82532M SCREW
    SCREW
  • 5
    10-82528M SCREW
    SCREW
  • 6
    10-84438M SCREW
    SCREW
  • 7
    24-82075M SPRING
    SPRING
  • 8
    80155M CAP
    CAP
  • 9
    80152M GRIP
    GRIP
  • 10
    37-80156M INDICATOR
    INDICATOR
  • 11
    11-82388M NUT
    NUT
  • 12
    80153M GUIDE
    GUIDE
  • 13
    23-80157M BUSHING
    BUSHING
  • 14
    10-84372M BOLT
    BOLT
  • 15
    12-81810M WASHER
    WASHER
  • 16
    12-81849M WASHER
    WASHER
  • 17
    12-81850M WASHER
    WASHER
  • 18
    11-82383M NUT
    NUT
  • 19
    81194M STEERING BRACKET
    STEERING BRACKET
  • 20
    13-82215M LOCKWASHER
    LOCKWASHER
  • 21
    54-82052M CLIP
    CLIP
  • 22
    25-82955M GROMMET
    SERIAL 00030091-09999999
    GROMMET
    SERIAL 00030091-09999999
  • 23
    10-97749M BOLT
    SERIAL 00030091-09999999
    BOLT
    SERIAL 00030091-09999999
  • 24
    12-81801M WASHER
    SERIAL 00030091-09999999
    WASHER
    SERIAL 00030091-09999999
  • 25
    11-82383M NUT
    SERIAL 00030091-09999999
    NUT
    SERIAL 00030091-09999999
  • 26
    82956M COLLAR
    SERIAL 00030091-09999999
    COLLAR
    SERIAL 00030091-09999999
  • 27
    25-80515M RUBBER
    SERIAL 00030091-09999999
    RUBBER
    SERIAL 00030091-09999999
  • 23
    10-97749M BOLT
    SERIAL 00000000-00030090
    BOLT
    SERIAL 00000000-00030090
  • 24
    12-81801M WASHER
    SERIAL 00000000-00030090
    WASHER
    SERIAL 00000000-00030090
  • 25
    11-82383M NUT
    SERIAL 00000000-00030090
    NUT
    SERIAL 00000000-00030090
  • 26A
    23-81991M COLLAR
    SERIAL 00000000-00030090
    COLLAR
    SERIAL 00000000-00030090
  • 27
    25-80515M GROMMET
    SERIAL 00000000-00030090
    GROMMET
    SERIAL 00000000-00030090
