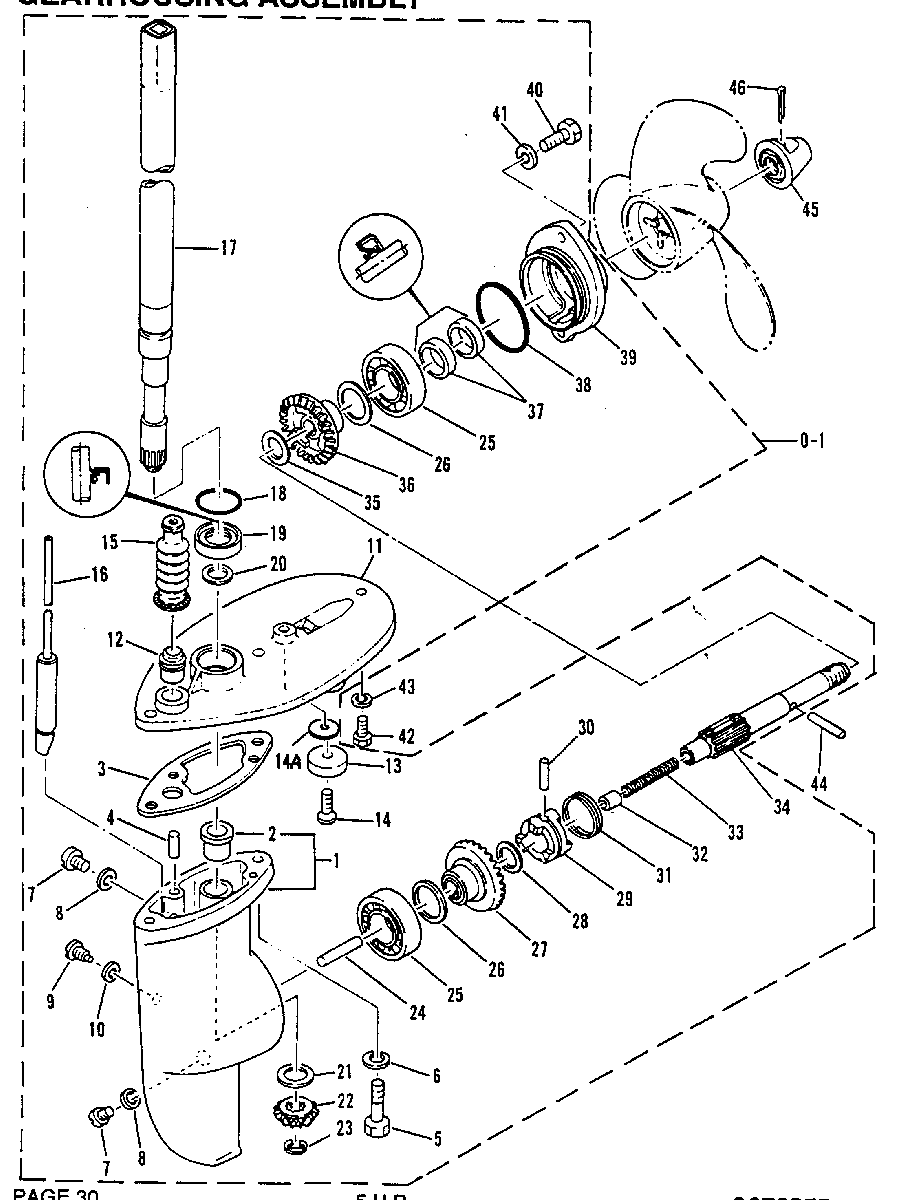

GEARHOUSING ASSEMBLY для Mariner - 5A 661-30090 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    NLA GEARHOUSING ASSEMBLY (SHORT)
    GEARHOUSING ASSEMBLY (SHORT)
  • 0-1
    1651-6905M GEARHOUSING ASSEMBLY (LONG)
    GEARHOUSING ASSEMBLY (LONG)
  • 29
    52-81012M CLUTCH
    SERIAL 00018546-09999999
    CLUTCH
    SERIAL 00018546-09999999
  • 30
    17-81902M CROSS PIN
    SERIAL 00018546-09999999
    CROSS PIN
    SERIAL 00018546-09999999
  • 31
    53-81013M RETAINER
    SERIAL 00018546-09999999
    RETAINER
    SERIAL 00018546-09999999
  • 29
    NLA CLUTCH ( BELOW)
    SERIAL 00000000-00018545
    CLUTCH ( BELOW)
    SERIAL 00000000-00018545
  • 30
    17-82713M CROSS PIN
    SERIAL 00000000-00018545
    CROSS PIN
    SERIAL 00000000-00018545
  • 31
    NLA CIRCLIP
    SERIAL 00000000-00018545
    CIRCLIP
    SERIAL 00000000-00018545
  • 32
    80679M SHIFT SLIDE
    SHIFT SLIDE
  • 33
    24-82077M SPRING
    SPRING
  • 34
    44-81011M PROPELLER SHAFT
    PROPELLER SHAFT
  • 35
    12-82560M THRUST WASHER
    THRUST WASHER
  • 36
    43-81010M REVERSE GEAR
    REVERSE GEAR
  • 37
    26-82224M OIL SEAL
    OIL SEAL
  • 38
    25-82280M O-RING
    O-RING
  • 39
    81001M CAP
    CAP
  • 40
    10-84058M BOLT
    BOLT
  • 41
    13-82212M LOCKWASHER
    LOCKWASHER
  • 42
    10-82445M BOLT
    BOLT
  • 43
    13-82186M LOCKWASHER
    LOCKWASHER
  • 44
    17-17554M SHEAR PIN
    SHEAR PIN
  • 45
    859931 PROPELLER NUT
    PROPELLER NUT
  • 46
    18-82132M COTTER PIN
    COTTER PIN
