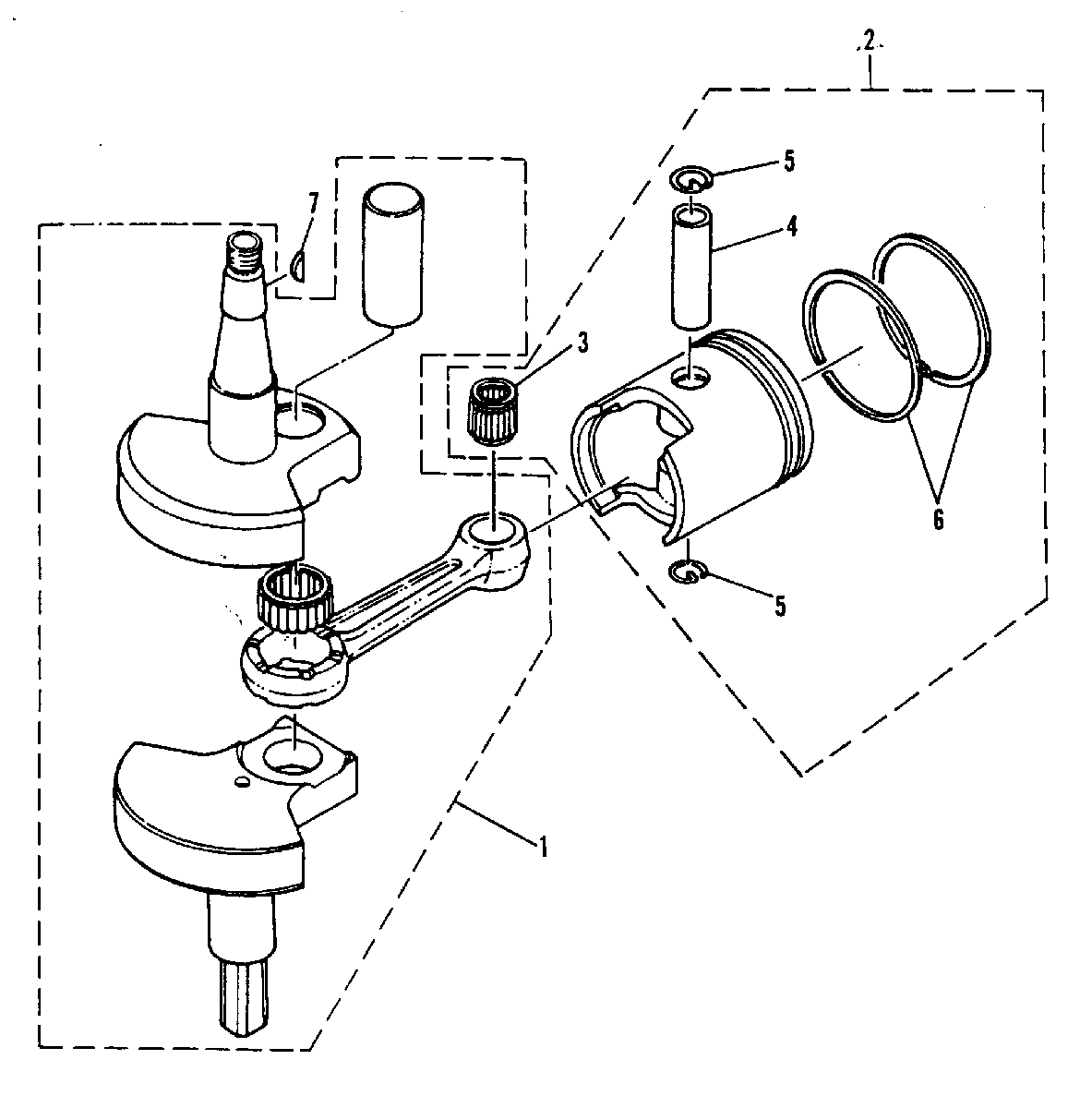

CRANKSHAFT AND PISTON для Mariner - 5A 661-30090 AND BELOW

  • №
    Артикул
    Название
  • 1
    463-7160M CRANKSHAFT
    SERIAL 00012506-09999999
    CRANKSHAFT
    SERIAL 00012506-09999999
  • 1
    463-6701M CRANKSHAFT
    SERIAL 00000000-00012505
    CRANKSHAFT
    SERIAL 00000000-00012505
  • 2
    761-8230M PISTON (STANDARD)
    PISTON (STANDARD)
  • 2
    NLA PISTON (50.25 MM O.S.)
    PISTON (50.25 MM O.S.)
  • 2
    761-8232M PISTON (50.50 MM O.S.)
    PISTON (50.50 MM O.S.)
  • 3
    31-82835M BEARING
    BEARING
  • 4
    41-80005M PISTON PIN
    PISTON PIN
  • 5
    53-82342M CLIP
    CLIP
  • 6
    39-80305M PISTON RING SET (STANDARD)
    PISTON RING SET (STANDARD)
  • 6
    39-80306M PISTON RING SET (50.25 MM O.S.)
    PISTON RING SET (50.25 MM O.S.)
  • 6
    39-80307M PISTON RING SET (50.50 MM O.S.)
    PISTON RING SET (50.50 MM O.S.)
  • 7
    28-8M0084803 KEY ( AND UP)
    SERIAL 00012506-09999999
    KEY ( AND UP)
    SERIAL 00012506-09999999
  • 7
    28-81910M KEY ( AND BELOW)
    SERIAL 00000000-00012505
    KEY ( AND BELOW)
    SERIAL 00000000-00012505
