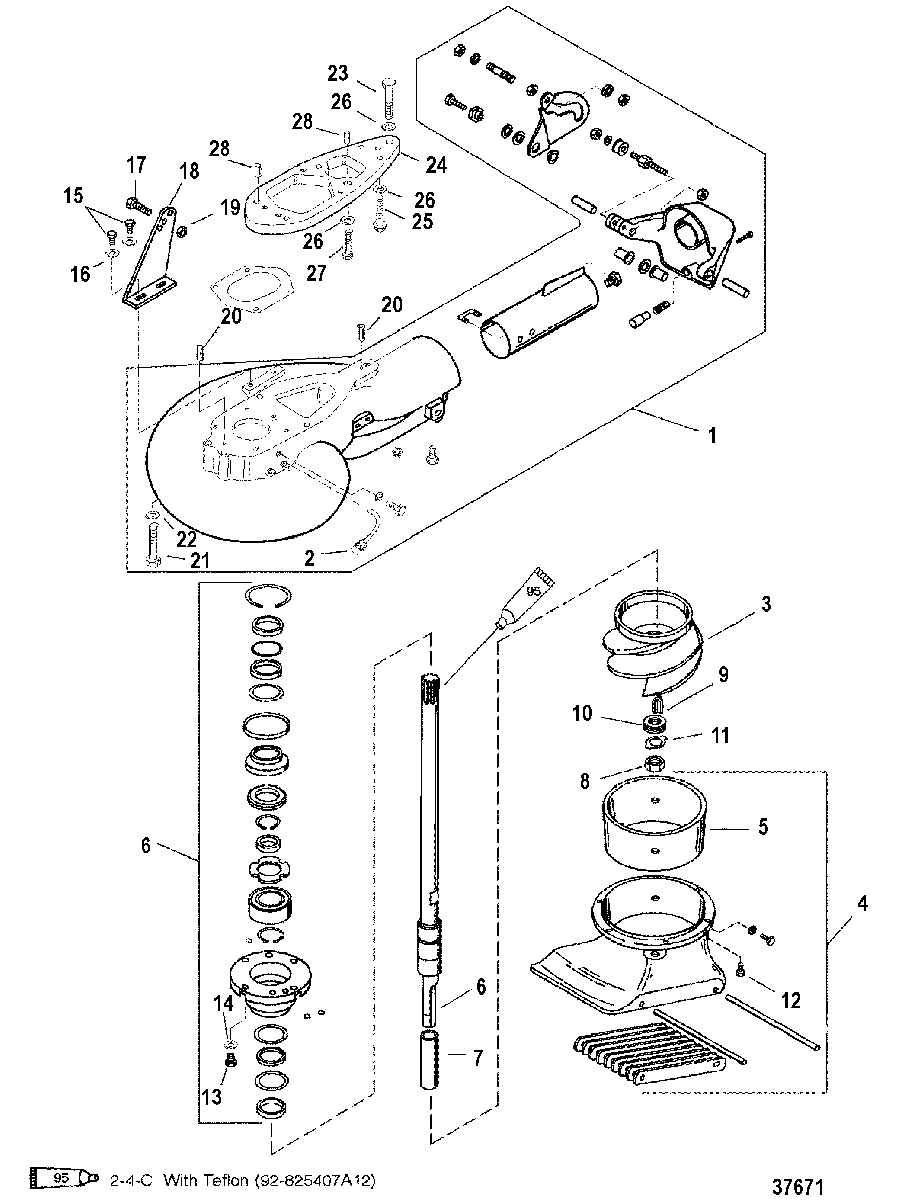

JET PUMP ASSEMBLY для Mariner - 50 (3 CYL.) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • -
    856143A5 JET PUMP ASSEMBLY
    JET PUMP ASSEMBLY
  • 1
    801411401 HOUSING, Pump
    HOUSING, Pump
  • 2
    32-827490 HOSE, Lube
    HOSE, Lube
  • 3
    47-855708T40 IMPELLER
    IMPELLER
  • 4
    80141240 HOUSING, Intake
    HOUSING, Intake
  • 5
    827188T1 LINER
    LINER
  • 6
    45-801413401 DRIVESHAFT
    DRIVESHAFT
  • 7
    23-827189 SLEEVE
    SLEEVE
  • 8
    11-827190 NUT
    NUT
  • 9
    28-801405625 KEY, Impeller
    KEY, Impeller
  • 10
    15-801404625 SHIM, Impeller
    SHIM, Impeller
  • 11
    14-801403625 TAB WASHER
    TAB WASHER
  • 12
    10-90192 SCREW, (.250-20 x .750) Stainless Steel
    SCREW, (.250-20 x .750) Stainless Steel
  • 13
    10-19923088 SCREW, (.250-20 x .875)
    SCREW, (.250-20 x .875)
  • 14
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    WASHER, (.281 x .625 x .065) Stainless Steel
  • 15
    10-19923062 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 16
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    WASHER, (.281 x .625 x .065) Stainless Steel
  • 17
    10-60411 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 18
    801410 BRACKET, Cable Support
    BRACKET, Cable Support
  • 19
    11-82670910 NUT, (.312-18)
    NUT, (.312-18)
  • 20
    17-801406 PIN, Dowel
    PIN, Dowel
  • 21
    10-19924250 SCREW, (.312-18 x 2.50)
    SCREW, (.312-18 x 2.50)
  • 21
    10-19924275 SCREW, (.312-18 x 2.75)
    SCREW, (.312-18 x 2.75)
  • 22
    12-814806 WASHER, (.344 x .688 x .065) Stainless Steel
    WASHER, (.344 x .688 x .065) Stainless Steel
  • 23
    10-19925125 SCREW, (.375-16 x 1.25)
    SCREW, (.375-16 x 1.25)
  • 24
    853881 ADAPTOR
    ADAPTOR
  • 25
    10-858771 SCREW, (M10 x 1.5 x 30)
    SCREW, (M10 x 1.5 x 30)
  • 26
    12-F8015 WASHER
    WASHER
  • 27
    10-4000378 SCREW, (M10 x 35) Stainless Steel
    SCREW, (M10 x 35) Stainless Steel
  • 28
    17-821327 PIN, Dowel
    PIN, Dowel
