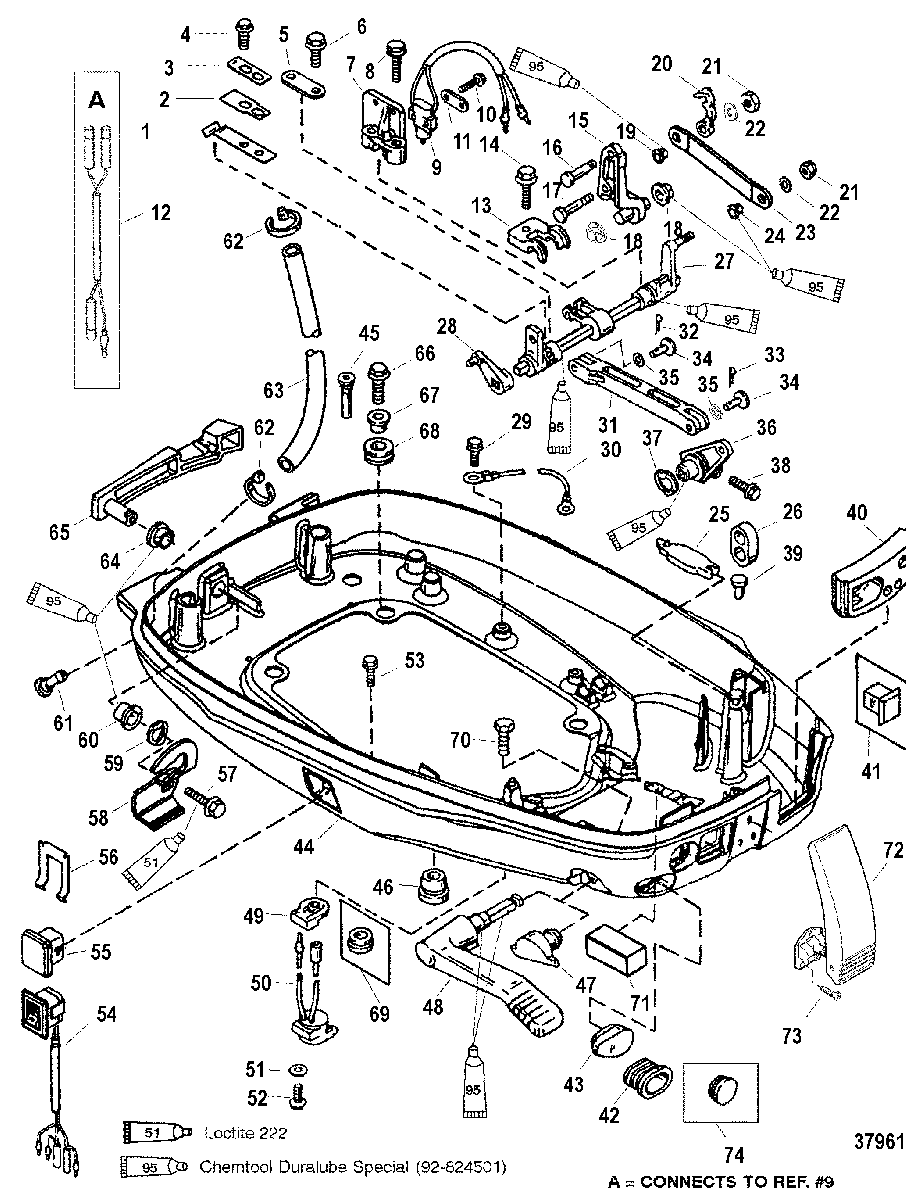

BOTTOM COWL для Mariner - 50 (3 CYL.) 0G590000 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    24-824992 SPRING, Detent
    SPRING, Detent
  • 2
    24-824993 SPRING, Backing
    SPRING, Backing
  • 3
    824994 SPRING, Plate
    SPRING, Plate
  • 4
    10-82191916 SCREW, (M5 x 14)
    SCREW, (M5 x 14)
  • 5
    8280471 STRAP
    STRAP
  • 6
    10-4006731 SCREW, (M6 x 16) Stainless Steel
    SCREW, (M6 x 16) Stainless Steel
  • 7
    8M0039049 CLAMP
    CLAMP
  • 8
    10-40011130 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 9
    87-8M0052927 SWITCH
    ELECTRIC HANDLE
    SWITCH
    ELECTRIC HANDLE
  • 10
    10-88075020 SCREW, (M3.5 x 20) Stainless Steel
    ELECTRIC HANDLE
    SCREW, (M3.5 x 20) Stainless Steel
    ELECTRIC HANDLE
  • 11
    824923 PLATE
    ELECTRIC HANDLE
    PLATE
    ELECTRIC HANDLE
  • 12
    84-824934A3 HARNESS ASSEMBLY
    ELECTRIC HANDLE
    HARNESS ASSEMBLY
    ELECTRIC HANDLE
  • 13
    8M0036802 CAP
    NON-HANDLE VERSIONS
    CAP
    NON-HANDLE VERSIONS
  • 14
    10-4006731 SCREW, (M6 x 16) Stainless Steel
    NON-HANDLE VERSIONS
    SCREW, (M6 x 16) Stainless Steel
    NON-HANDLE VERSIONS
  • 15
    8M0041741 LEVER
    NON-HANDLE VERSIONS
    LEVER
    NON-HANDLE VERSIONS
  • 16
    42927 INSERT
    NON-HANDLE VERSIONS
    INSERT
    NON-HANDLE VERSIONS
  • 17
    17-8224561 PIN
    NON-HANDLE VERSIONS
    PIN
    NON-HANDLE VERSIONS
  • 18
    23-26954 BUSHING
    NON-HANDLE VERSIONS
    BUSHING
    NON-HANDLE VERSIONS
  • 19
    23-48475 BUSHING
    NON-HANDLE VERSIONS
    BUSHING
    NON-HANDLE VERSIONS
  • 20
    822459 RETAINER
    NON-HANDLE VERSIONS
    RETAINER
    NON-HANDLE VERSIONS
  • 21
    11-401386 NUT, (M6)
    NON-HANDLE VERSIONS
    NUT, (M6)
    NON-HANDLE VERSIONS
  • 22
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    NON-HANDLE VERSIONS
    WASHER, (.255 x .620 x .030) Stainless Steel
    NON-HANDLE VERSIONS
  • 23
    8224701 LINK, Shift
    NON-HANDLE VERSIONS
    LINK, Shift
    NON-HANDLE VERSIONS
  • 24
    23-48475 BUSHING
    NON-HANDLE VERSIONS
    BUSHING
    NON-HANDLE VERSIONS
  • 25
    98889 LATCH
    NON-HANDLE VERSIONS
    LATCH
    NON-HANDLE VERSIONS
  • 26
    39519 CUP
    NON-HANDLE VERSIONS
    CUP
    NON-HANDLE VERSIONS
  • 27
    821483A6 SHIFT SHAFT, Horizontal
    SHIFT SHAFT, Horizontal
  • 28
    821487 LEVER, -INTERLOCK ACTUATING
    (MANUAL)
    LEVER, -INTERLOCK ACTUATING
    (MANUAL)
  • 29
    10-878607 SCREW, (#10-16 x .380)
    SCREW, (#10-16 x .380)
  • 30
    84-88807A28 CABLE ASSEMBLY (BLACK-7 1/2 IN.)
    CABLE ASSEMBLY (BLACK-7 1/2 IN.)
  • 31
    8M0037997 SHIFT ROD
    HANDLE
    SHIFT ROD
    HANDLE
  • 32
    18-210711 COTTER PIN
    HANDLE
    COTTER PIN
    HANDLE
  • 33
    18-210711 COTTER PIN
    HANDLE
    COTTER PIN
    HANDLE
  • 34
    17-8251851 PIN
    HANDLE
    PIN
    HANDLE
  • 35
    13-827418 LOCKWASHER
    HANDLE
    LOCKWASHER
    HANDLE
  • 36
    822011 LEVER, Shift
    HANDLE
    LEVER, Shift
    HANDLE
  • 37
    13-825273 WAVE WASHER
    HANDLE
    WAVE WASHER
    HANDLE
  • 38
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    HANDLE
    SCREW, (M5 x 16) Stainless Steel
    HANDLE
  • 39
    10-42975 DRIVE SCREW
    DRIVE SCREW
  • 40
    25-828462001 GROMMET
    GROMMET
  • 41
    19-17230 PLUG
    PLUG
  • 42
    822424001 SEAL
    (HANDLE VERSIONS)
    SEAL
    (HANDLE VERSIONS)
  • 43
    19-823874001 SEAL
    (NON HANDLE VERSIONS)
    SEAL
    (NON HANDLE VERSIONS)
  • 44
    4023-828165A1 BOTTOM COWL
    (BLACK)
    BOTTOM COWL
    (BLACK)
  • 44
    4023-828165A2 BOTTOM COWL
    (GRAY)
    BOTTOM COWL
    (GRAY)
  • 45
    21-817519A1 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 46
    25-19565002 GROMMET
    (SPLIT - POWER TRIM)
    GROMMET
    (SPLIT - POWER TRIM)
  • 46
    25-19564001 GROMMET
    (NON POWER TRIM)
    GROMMET
    (NON POWER TRIM)
  • 47
    19-824076001 PLUG
    (NON HANDLE VERSIONS)
    PLUG
    (NON HANDLE VERSIONS)
  • 48
    8214901 HANDLE
    MANUAL HANDLE
    HANDLE
    MANUAL HANDLE
  • 49
    823572001 SEAL
    MANUAL HANDLE
    SEAL
    MANUAL HANDLE
  • 50
    84-8M3001068 ALARM ASSEMBLY, Audio Warning
    MANUAL HANDLE
    ALARM ASSEMBLY, Audio Warning
    MANUAL HANDLE
  • 51
    12-4002316 WASHER
    MANUAL HANDLE
    WASHER
    MANUAL HANDLE
  • 52
    10-82239312 SCREW, (M5 x 12)
    MANUAL HANDLE
    SCREW, (M5 x 12)
    MANUAL HANDLE
  • 53
    10-878608 SCREW, (#10-16 x .500)
    (MANUAL) MANUAL HANDLE
    SCREW, (#10-16 x .500)
    (MANUAL) MANUAL HANDLE
  • 54
    87-8M0042301 SWITCH
    (POWER TRIM)
    SWITCH
    (POWER TRIM)
  • 55
    812830T01 PLUG
    (NON POWER TRIM)
    PLUG
    (NON POWER TRIM)
  • 56
    8M0032848 RETAINER
    RETAINER
  • 57
    10-82130016 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 58
    828464 CAM, Latch
    CAM, Latch
  • 59
    13-12134 WASHER, Wave
    WASHER, Wave
  • 60
    23-812707 BUSHING
    BUSHING
  • 61
    22-813613 FITTING
    FITTING
  • 62
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 63
    32-7568058 HOSE, (15.00 Inches)
    HOSE, (15.00 Inches)
  • 64
    23-812707 BUSHING
    BUSHING
  • 65
    823573F1 LEVER, Cowl Latch
    (BLACK)
    LEVER, Cowl Latch
    (BLACK)
  • 65
    823573F2 LEVER, Cowl Latch
    (GRAY)
    LEVER, Cowl Latch
    (GRAY)
  • 66
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    SCREW, (M6 x 25) Stainless Steel
  • 67
    23-822003 BUSHING
    BUSHING
  • 68
    25-822002 GROMMET
    GROMMET
  • 69
    19-824473 PLUG
    (ELECTRIC)
    PLUG
    (ELECTRIC)
  • 70
    10-40011107 SCREW, (M5 x 16) Stainless Steel, INTERLOCK CABLE
    SCREW, (M5 x 16) Stainless Steel, INTERLOCK CABLE
  • 71
    8M0043169 BUMPER
    BUMPER
  • 72
    828463 LATCH, Front
    LATCH, Front
  • 73
    10-4001987 SCREW, (M4 x 16)
    SCREW, (M4 x 16)
  • 74
    25-16226 GROMMET
    GROMMET
