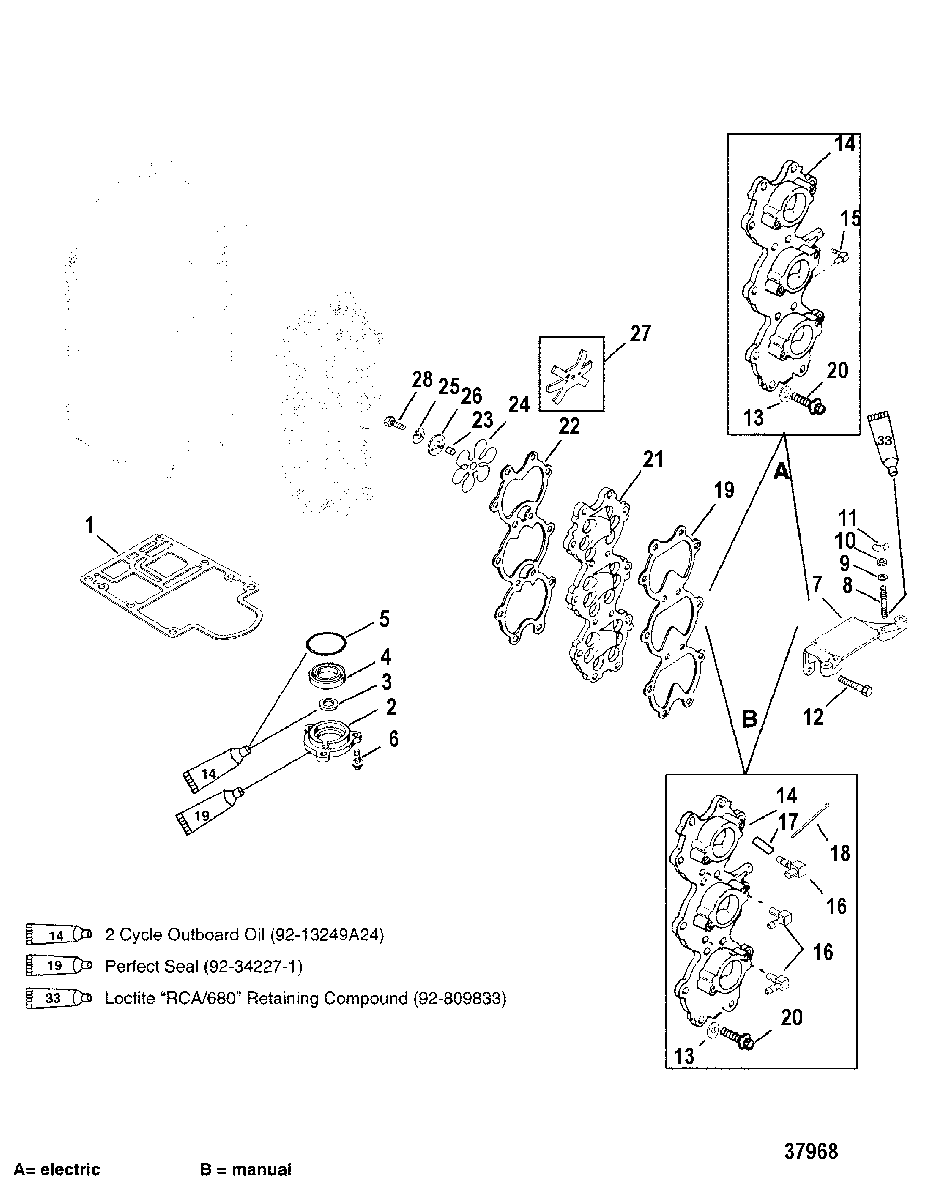

INDUCTION MANIFOLD AND REED BLOCK для Mariner - 50 (3 CYL.) 0G590000 THRU 0G760299

№

Артикул

Название
1

27-8M0000822 GASKET

GASKET
2

1171-9812A8 END CAP ASSEMBLY

END CAP ASSEMBLY
3

26-828932 SEAL, Oil

SEAL, Oil
4

26-41953 SEAL

SEAL
5

25-896523 O-RING, (2.175 x .175)

O-RING, (2.175 x .175)
6

10-81742720 SCREW, (M8 x 20)

SCREW, (M8 x 20)
7

19077A07 BRACKET ASSEMBLY

BRACKET ASSEMBLY
8

16-8161949 STUD

STUD
9

12-49221 WASHER, (.187 x .500 x .062) Neoprene
ELECTRIC

WASHER, (.187 x .500 x .062) Neoprene
ELECTRIC
10

12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
ELECTRIC

WASHER, (.255 x .620 x .030) Stainless Steel
ELECTRIC
11

11-816872 WING NUT
ELECTRIC

WING NUT
ELECTRIC
12

10-82127335 SCREW, (M8 x 35)

SCREW, (M8 x 35)
13

12-814806 WASHER, (.344 x .688 x .065) Stainless Steel (USE WHERE APPLICABLE)
(BOTTOM LEFT ONLY)

WASHER, (.344 x .688 x .065) Stainless Steel (USE WHERE APPLICABLE)
(BOTTOM LEFT ONLY)
14

827998A1 MANIFOLD ASSEMBLY, Induction

MANIFOLD ASSEMBLY, Induction
15

22-19725 ELBOW
(ELECTRIC)

ELBOW
(ELECTRIC)
16

22-19725 ELBOW
(MANUAL)

ELBOW
(MANUAL)
17

22-15026 CAP
(MANUAL)

CAP
(MANUAL)
18

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)
19

27-812869 GASKET

GASKET
20

10-81742730 SCREW, (M8 x 30)

SCREW, (M8 x 30)
21

19075A3 REED BLOCK ASSEMBLY

REED BLOCK ASSEMBLY
22

27-812868 GASKET

GASKET
23

NSS NOT SOLD SEPARATE, Dowel Pin

NOT SOLD SEPARATE, Dowel Pin
24

34-812880A03 REED ASSEMBLY

REED ASSEMBLY
25

14-429821 TAB WASHER

TAB WASHER
26

812879002 RETAINER, Reed
(50)

RETAINER, Reed
(50)
27

825267 RETAINER, Reed
(40)

RETAINER, Reed
(40)
28

10-4000171 SCREW, (M6 x 16)

SCREW, (M6 x 16)
-

852067T98 POWERHEAD ASSEMBLY

POWERHEAD ASSEMBLY
-

27-828553A97 GASKET SET

GASKET SET
