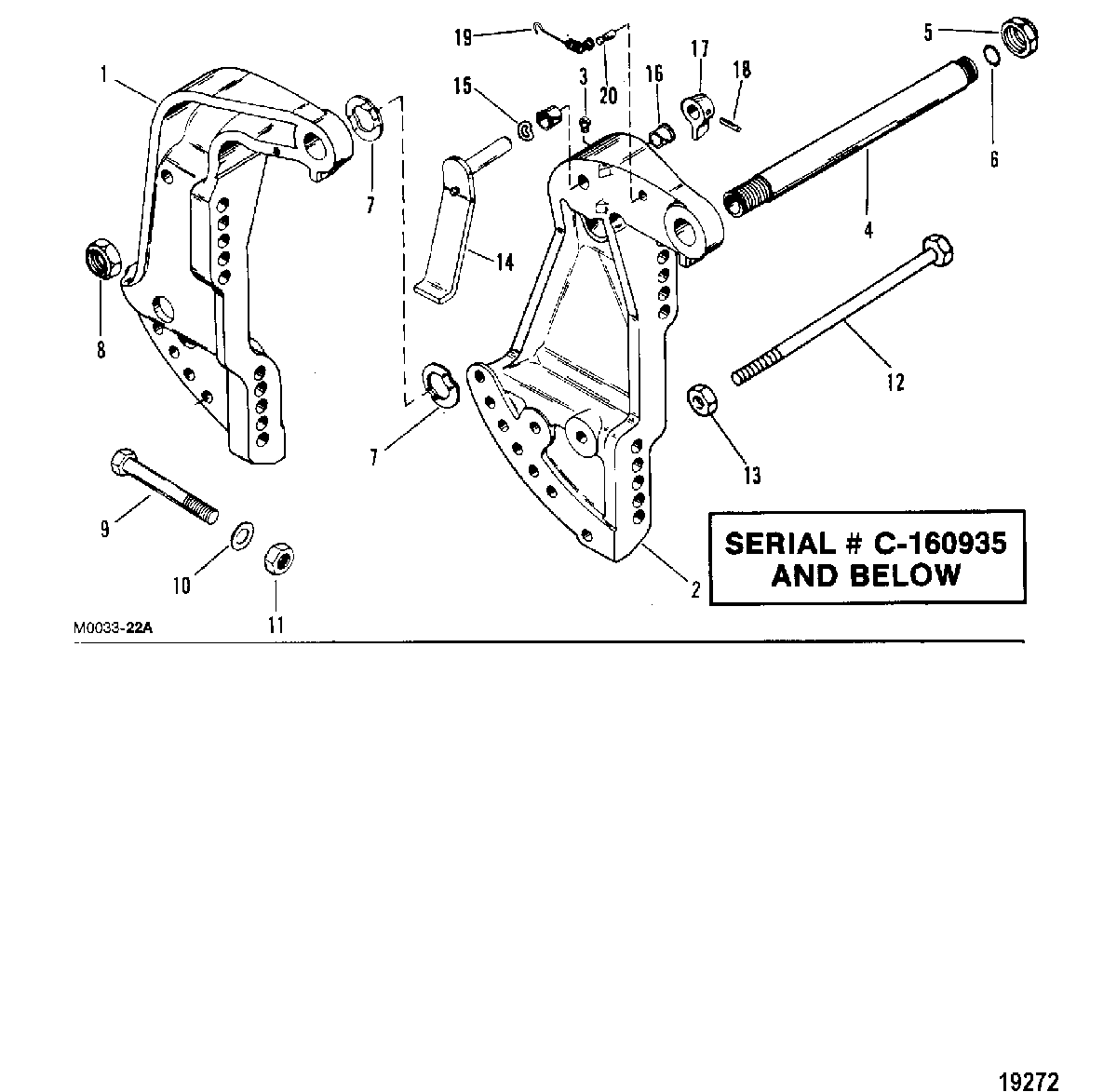

Transom Bracket(Power Trim)(S/N-0C160935 & Below) для Mariner - 50 (3 CYL.) 0A721308 & Up
-
№АртикулНазвание
-
13401-8718F7 BRACKET ASSEMBLY, Transom (STARBOARD) (BLACK)BRACKET ASSEMBLY, Transom (STARBOARD) (BLACK)
-
13401-8718F8 BRACKET ASSEMBLY, Transom (STARBOARD) (GRAY)BRACKET ASSEMBLY, Transom (STARBOARD) (GRAY)
-
23400-8716A8 BRACKET ASSEMBLY, Transom (PORT) (BLACK)BRACKET ASSEMBLY, Transom (PORT) (BLACK)
-
23400-8716A9 BRACKET ASSEMBLY, Transom (PORT) (GRAY)BRACKET ASSEMBLY, Transom (PORT) (GRAY)
-
322-98727 FITTING, Grease, PORT TRANSOM BRACKETFITTING, Grease, PORT TRANSOM BRACKET
-
4826125A1 TILT TUBETILT TUBE
-
511-82671327 NUT, TILT TUBE
(BLACK)NUT, TILT TUBE
(BLACK) -
511-82671327 NUT, TILT TUBE
(GRAY)NUT, TILT TUBE
(GRAY) -
625-45711 O-RING, (.612 x .103), TILT TUBEO-RING, (.612 x .103), TILT TUBE
-
713-88750 WASHER, TILT TUBEWASHER, TILT TUBE
-
811-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
910-677551 SCREW, (.500-20 x 4.500), MOUNTING BRACKET TO TRANSOMSCREW, (.500-20 x 4.500), MOUNTING BRACKET TO TRANSOM
-
1012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, MOUNTING BRACKET BOLTWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, MOUNTING BRACKET BOLT
-
1111-91962 NUT, (.500-20), MOUNTING BRACKET BOLTNUT, (.500-20), MOUNTING BRACKET BOLT
-
1210-96930A1 BOLT ASSEMBLY, TILT LOCKBOLT ASSEMBLY, TILT LOCK
-
1311-23161 NUT, (.375-24), BOLTNUT, (.375-24), BOLT
-
148M0115104 LEVER ASSEMBLY, TILT LOCKLEVER ASSEMBLY, TILT LOCK
-
1513-99611 WAVE WASHER, TILT LEVERWAVE WASHER, TILT LEVER
-
1623-65830 NYLINER, TILT LEVERNYLINER, TILT LEVER
-
1799633 KNOB, TILT LOCK LEVER
(BLACK)KNOB, TILT LOCK LEVER
(BLACK) -
1799633 KNOB, TILT LOCK LEVER
(GRAY)KNOB, TILT LOCK LEVER
(GRAY) -
1817-99615 PIN, GroovePIN, Groove
-
1924-99622 SPRINGSPRING
-
2017-99604 PIN, GroovePIN, Groove
