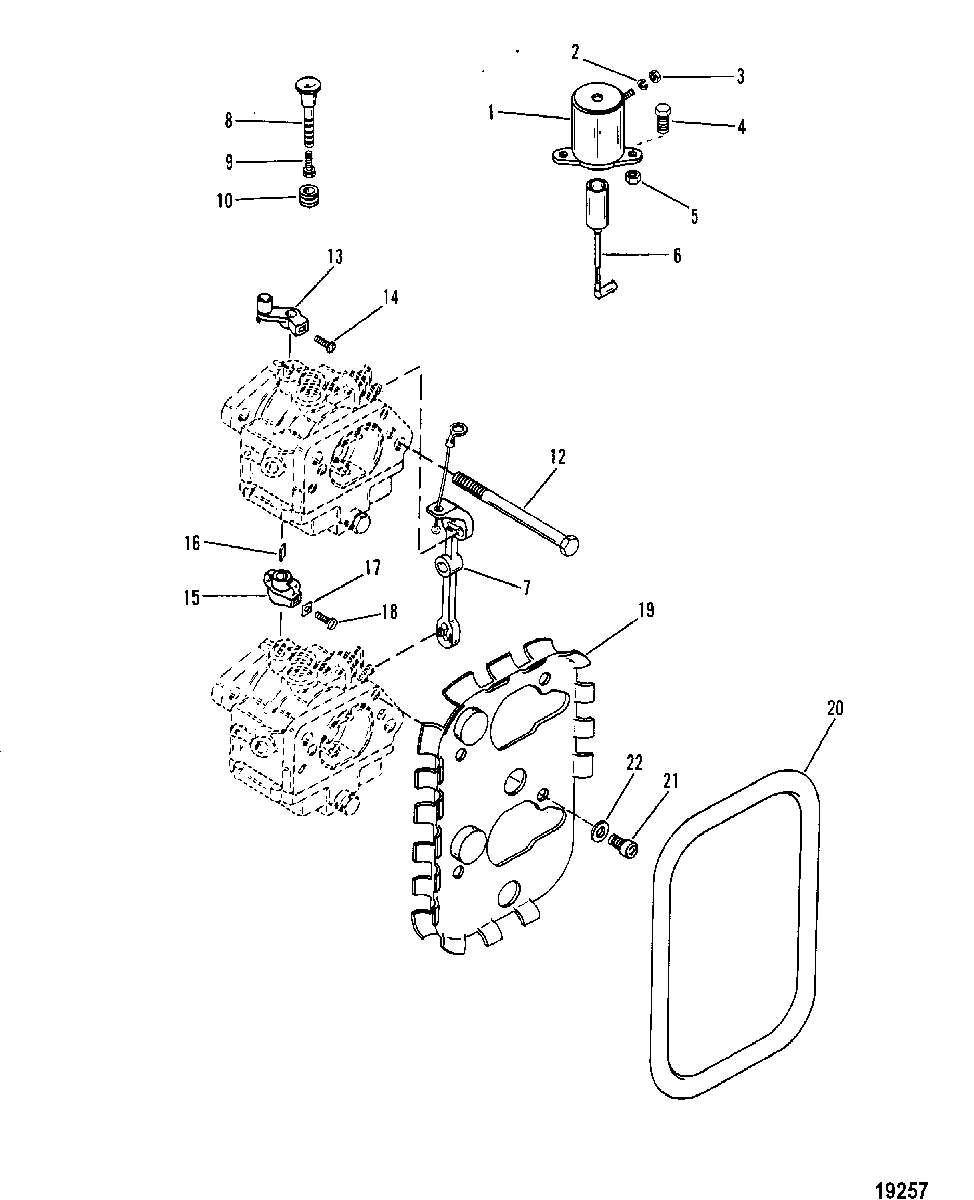

Carburetor Linkage and Choke Solenoid для Mariner - 50 (3 CYL.) 0A721308 & Up

№

Артикул

Название
1

60549A7 SOLENOID ASSEMBLY, Choke

SOLENOID ASSEMBLY, Choke
2

13-26996 LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL

LOCKWASHER, (#10) Stainless Steel, CHOKE SOLENOID TERMINAL
3

11-68219 NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL

NUT, (#10-32) Stainless Steel, CHOKE SOLENOID TERMINAL
4

10-33524 SCREW, (.312-24 x .620), CHOKE SOLENOID

SCREW, (.312-24 x .620), CHOKE SOLENOID
5

11-29250 NUT, (.312-24), CHOKE SOLENOID SCREWS

NUT, (.312-24), CHOKE SOLENOID SCREWS
6

89008A2 PLUNGER ASSEMBLY, CHOKE SOLENOID

PLUNGER ASSEMBLY, CHOKE SOLENOID
7

76076A1 ROD ASSEMBLY, Choke

ROD ASSEMBLY, Choke
8

90242A1 KNOB ASSEMBLY

KNOB ASSEMBLY
9

10-35519 SCREW, (#10-16 x .500), WIRE TO CHOKE KNOB

SCREW, (#10-16 x .500), WIRE TO CHOKE KNOB
10

25-20116 GROMMET, CHOKE KNOB

GROMMET, CHOKE KNOB
12

10-52743 SCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASE

SCREW, (.312-18 x 3.750), CARBURETOR TO CRANKCASE
13

77583 LEVER, THROTTLE

LEVER, THROTTLE
14

10-60293 SCREW, (#5-40 x .500), LEVER TO CARBURETOR

SCREW, (#5-40 x .500), LEVER TO CARBURETOR
15

60292A1 COUPLING ASSEMBLY

COUPLING ASSEMBLY
16

28-89694 KEY, THROTTLE SHAFT COUPLING

KEY, THROTTLE SHAFT COUPLING
17

11-92500 PUSH NUT, ROLLER - COUPLING

PUSH NUT, ROLLER - COUPLING
18

10-60293 SCREW, (#5-40 x .500), ROLLED WASHER TO COUPLING

SCREW, (#5-40 x .500), ROLLED WASHER TO COUPLING
19

91996A1 PLATE ASSEMBLY, CARBURETOR

PLATE ASSEMBLY, CARBURETOR
20

71090 SEAL, CARBURETOR PLATE

SEAL, CARBURETOR PLATE
21

10-20367 SCREW, PLATE TO CARBURETOR (7/16")

SCREW, PLATE TO CARBURETOR (7/16")
22

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREW

WASHER, (.281 x .500 x .060) Stainless Steel, PLATE SCREW
