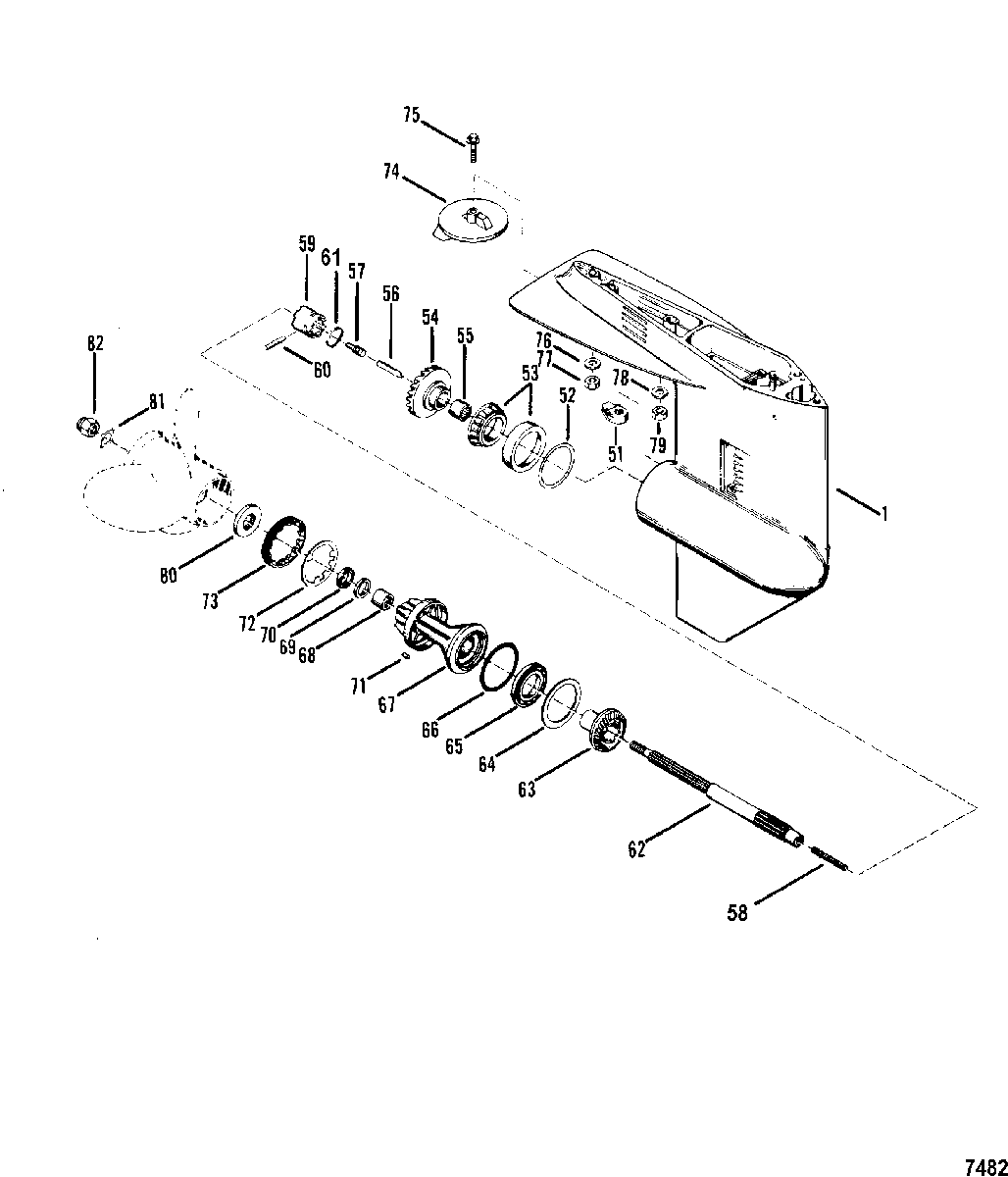

Gear Housing, Propeller Shaft для Mariner - 50 (3 CYL.) 0A721308 & Up

  • №
    Артикул
    Название
  • -
    1643-9539A2 GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)
    GEAR HOUSING ASSEMBLY (SHORT SHAFT) (BLACK)
  • -
    1643-9539A3 GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)
    GEAR HOUSING ASSEMBLY (LONG SHAFT) (BLACK)
  • -
    1643-9539A9 GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)
    GEAR HOUSING ASSEMBLY (LONG SHAFT) (GRAY)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY (BLACK-BASIC)
    GEAR HOUSING ASSEMBLY (BLACK-BASIC)
  • 1
    1643-9539T1 GEAR HOUSING ASSEMBLY (GRAY-BASIC)
    GEAR HOUSING ASSEMBLY (GRAY-BASIC)
  • 51
    760394 CAM, Shift Control
    CAM, Shift Control
  • 52
    15-38374A1 SHIM SET, BEARING CUP (.002-3-5-10)
    SHIM SET, BEARING CUP (.002-3-5-10)
  • 53
    31-38356A1 BEARING SET
    BEARING SET
  • 54
    43-88018T1 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 55
    31-21739 BEARING, Roller, FORWARD GEAR
    BEARING, Roller, FORWARD GEAR
  • 56
    38441 FOLLOWER, Cam
    FOLLOWER, Cam
  • 57
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 58
    24-39845 SPRING, COMPRESSION-CAM FOLLOWER
    SPRING, COMPRESSION-CAM FOLLOWER
  • 59
    52-92911T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 60
    17-8M0020942 PIN, Cross, RATCHET TO PROPELLER SHAFT
    PIN, Cross, RATCHET TO PROPELLER SHAFT
  • 61
    24-38114 SPRING, RETAINING-CROSS PIN
    SPRING, RETAINING-CROSS PIN
  • 62
    44-75365 PROPELLER SHAFT
    PROPELLER SHAFT
  • 63
    43-88017T GEAR, Reverse
    GEAR, Reverse
  • 64
    12-32004 WASHER, REVERSE GEAR
    WASHER, REVERSE GEAR
  • 65
    30-20839T BEARING, Ball, REVERSE GEAR
    BEARING, Ball, REVERSE GEAR
  • 66
    25-31986 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 67
    69386T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 68
    31-21700 BEARING, Needle, BEARING CARRIER
    BEARING, Needle, BEARING CARRIER
  • 69
    26-69188 SEAL, Oil, BEARING CARRIER
    SEAL, Oil, BEARING CARRIER
  • 70
    26-69189 SEAL, Oil, BEARING CARRIER
    SEAL, Oil, BEARING CARRIER
  • 71
    28-30281 KEY, LOCATING, BEARING CARRIER
    KEY, LOCATING, BEARING CARRIER
  • 72
    14-53012 TAB WASHER, GEAR HOUSING NUT
    TAB WASHER, GEAR HOUSING NUT
  • 73
    11-87763 NUT, GEAR HOUSING
    NUT, GEAR HOUSING
  • 74
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 75
    10-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
    SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
  • 76
    12-856774 WASHER, (.406 x .750 x .104), DRIVE SHAFT HOUSING STUD
    WASHER, (.406 x .750 x .104), DRIVE SHAFT HOUSING STUD
  • 77
    11-8M0042636 NUT, (.375-24), DRIVE SHAFT HOUSING STUD
    NUT, (.375-24), DRIVE SHAFT HOUSING STUD
  • 78
    12-65791 WASHER, DRIVE SHAFT HOUSING STUD
    WASHER, DRIVE SHAFT HOUSING STUD
  • 79
    11-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
    NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING STUD
  • 80
    73345A1 THRUST HUB, FRONT
    THRUST HUB, FRONT
  • 81
    14-76281 TAB WASHER, PROPELLER
    TAB WASHER, PROPELLER
  • 82
    11-69578Q1 PROP NUT KIT
    PROP NUT KIT
  • -
    26-79831A1 SEAL KIT
    SEAL KIT
  • -
    27-43779A87 GASKET SET
    GASKET SET
